The Cobalt WAVE CP-44 Remote Control Panel features 44 back-lit buttons. All buttons are illuminated by Red, Green and Blue LED’s providing a wide array of background colors to choose from. Factory presets provide a solid starting point from which to customize each button color.

The front panel color LCD display keeps you informed of the panel status.

The frame is 1U / 1.75 inches tall and is only 3.4 inches deep with removable rack mount “ears” for desktop use or other custom installations.

The WAVE series of control panels offer unprecedented flexibility, ease of use & integration.

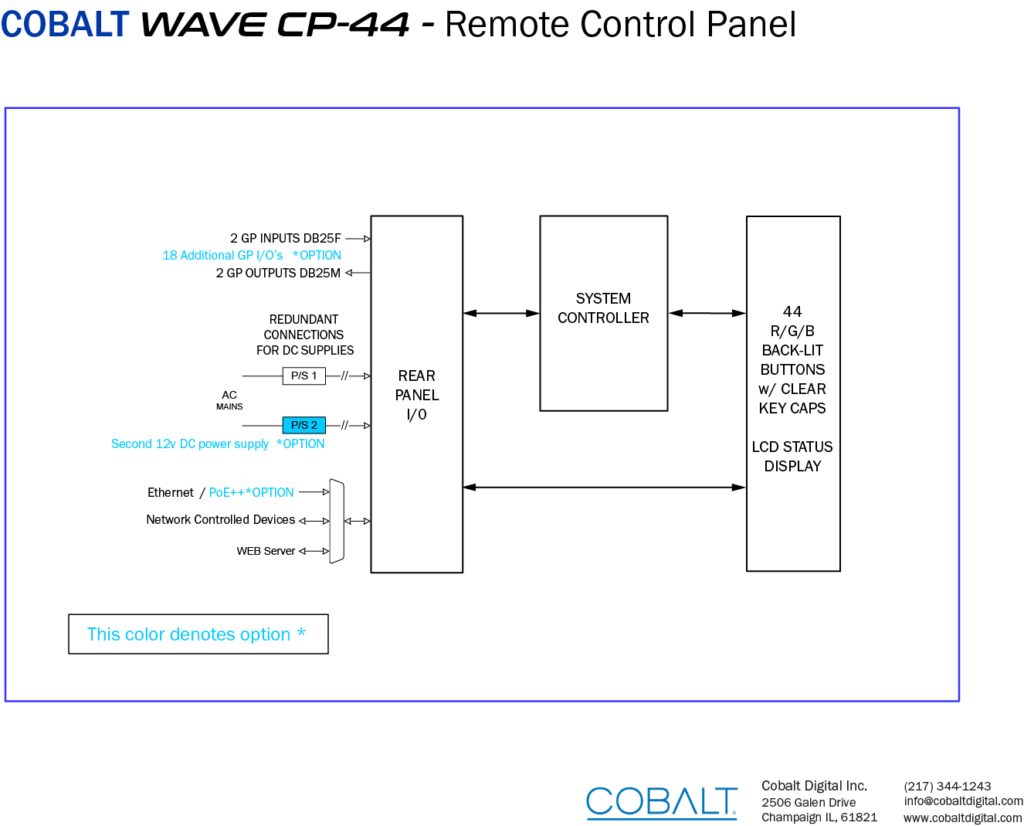

Located on the rear of the unit is an Ethernet port with PoE++ capability for power and IP based communication. Add optional PoE++ capability with the + PoE Option. Built in SW-P-08 protocol comes standard as well 2 optically isolated General Purpose Outputs and 2 Inputs. Add 18 more GP Inputs and 18 GP Outputs with the +GPI Option. Dual DC power inputs provide for redundant operation.

The web-based browser control system includes button assignment, back-light color, setup of salvo presets, panel & button locks, setup of the GP/I/O system and other important system management operations. The WAVE Control Series panels allow different panel setups to be stored and recalled from the browser to provide extremely flexible operations. Recall complex configurations for various operations.

Don’t want to use the factory supplied labels? Download a label example template from the Cobalt web site. Enter your information, print and cut custom labels to fit into the clear key-caps of each button. After setting up the configuration of the panel, save and upload that configuration to a different panel of the same model for rapid set-up of other CP-44 control panels on your network.
