The Cobalt® WAVE CP-78 Remote Control Panel features 78 back-lit buttons. All buttons are illuminated by Red, Green and Blue LED’s providing a wide array of background colors to choose from. Factory presets provide a solid starting point from which to customize each button color.
The front panel color LCD display keeps you informed of the panel status.
The frame is 2U / 3.5 inches tall and is only 3.4 inches deep with removable rack mount “ears” for desktop use or other custom installations.
The WAVE series of control panels offer unprecedented flexibility, ease of use & integration. Located on the rear of the unit is an Ethernet port with PoE++ capability for power and IP based communication. Add optional PoE++ capability with the + PoE Option. Built in SW-P-08 protocol comes standard as well 2 optically isolated General Purpose Outputs and 2 Inputs. Add 18 more GP Inputs and 18 GP Outputs with the +GPIO Option. Dual DC power inputs provide for redundant operation.
The web-based browser control system includes button assignment, back-light color, setup of salvo presets, panel & button locks, setup of the GP/I/O system and other important system management operations. The WAVE Control Series panels allow different panel setups to be stored and recalled from the browser to provide extremely flexible operations. Recall complex configurations for various operations.
Don’t want to use the factory supplied labels? Download a label template from the product downloads tab above. Enter your information, print and cut custom labels to fit into the clear key-caps of each button. After setting up the configuration of the panel just as you need it, save and upload that configuration to a different panel of the same model for rapid set-up of other control panels on your network.
Key Features
78 R/G/B back-lit buttons with clear key caps and front panel LCD Status display
Compatible with Cobalt Digital WAVE Series Routers (And other brands with SW-P-08 communications protocol)
The control panel is easily customizable for almost any application using Lua scripts.
Ethernet with PoE++ compatibility. Add Option +POE
Redundant DC power connections. Optional +PS add a second DC power supply for redundant operation. (1) power supply included with purchase.
Optically Isolated - 2 GPO (General Purpose Outputs), 2 GPI (General Purpose Inputs), Add 18 more GP Inputs and 18 GP Outputs with the +GPIO Option for a total of 20 GP Inputs and 20 GP Outputs
Quiet fan-less design
19 inch wide rack mount. 3.5 inches tall (2U) 3.4 inches deep. Weight: < 3 lbs.
Five-year warranty
Specifications
Display Buttons
(78) R-G-B back-lit 64×32 dot matrix LCD display buttons
Network Interfaces
(1) RJ-45, 10/100/1000 Ethernet port with PoE capability (with +POE option)
Embedded web server for remote control
Inputs
(2) GP Onputs / 18 optional inputs (with +GPIO option)
Outputs
(2) GP outputs / 18 optional outputs (with +GPIO option)
Power
12 Volt DC (PS1 and optional PS2)
(1) AC adapter: 100-240 VAC, 50/60 Hz, universal input, 10-14 VDC regulated
Chassis
Size: 19” wide rack mount / 3.5” (H) (2U) x 3.4” (D)
Weight: 2.5lbs

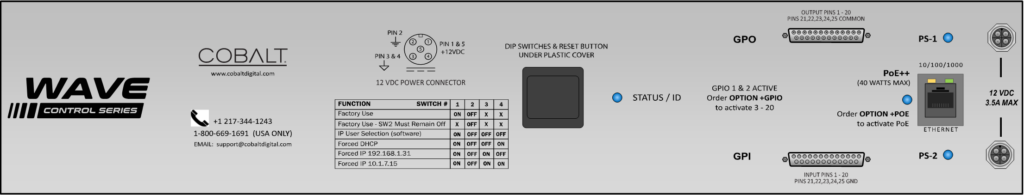

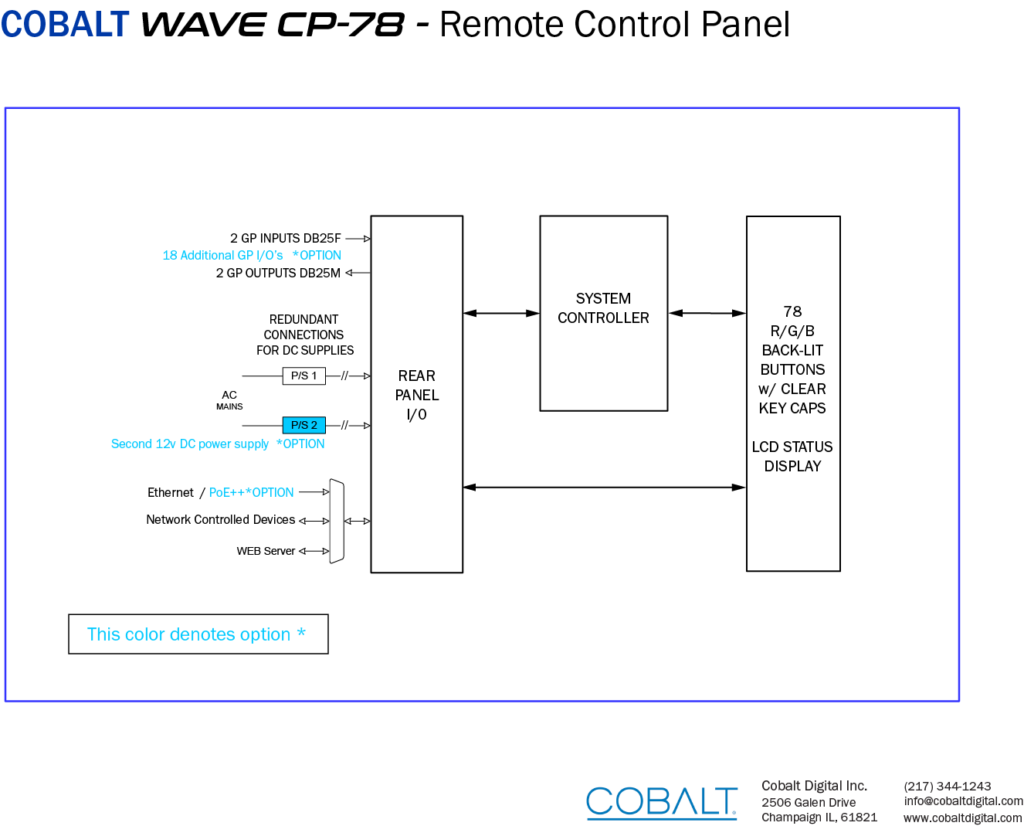

Diagrams
Note: Purchase includes 1 power supply.
