The Cobalt WAVE Remote Control Panel CP-84L features 84 back-lit LCD dot matrix display buttons. All buttons are illuminated by Red, Green and Blue LED’s providing a wide array of background colors to choose from.

The frame is 2U – 3.5 inch tall and is only 3.4 inches deep with removable rack mount “ears” for desktop use or other custom installations.

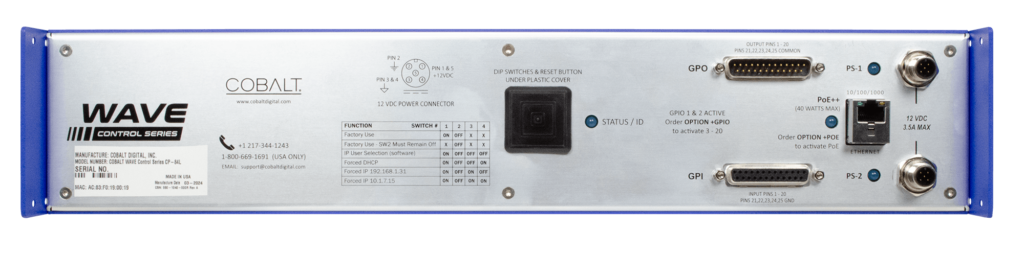

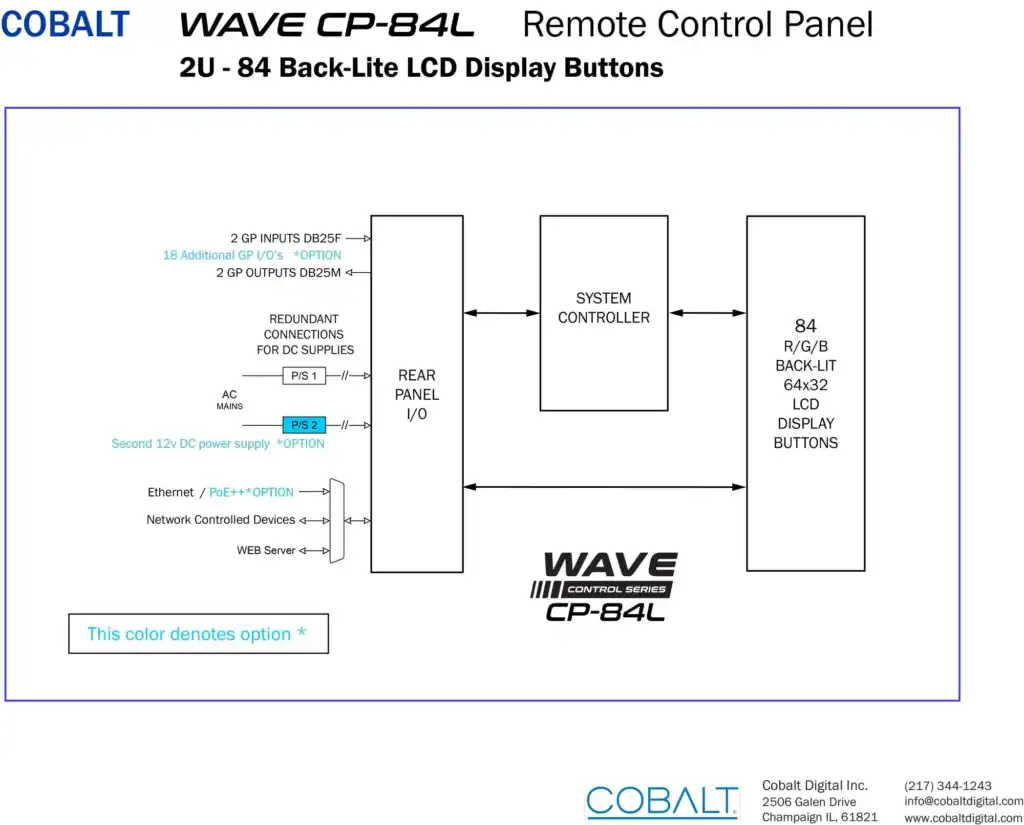

The WAVE series of control panels offer unprecedented flexibility, ease of use & integration. Located on the rear of the unit is an Ethernet port for IP based communication. Add optional PoE++ capability with the + PoE Option. Built in SW-P-08 protocol comes standard. For flexibility, 2 optically isolated General Purpose Outputs and 2 Inputs come standard. Add 18 more GP Inputs and 18 GP Outputs with the +GPIO Option.

Dual DC power inputs provide for redundant operation.

The web-based browser control system includes button assignment, back-light color, setup of salvo presets, panel & button locks, setup of the GP/I/O system and other important system management operations. Factory presets provide a solid starting point from which to customize each button with its 64×32 dot matrix graphics.

The WAVE Control Series panels allow different panel setups to be stored and recalled from the browser to provide extremely flexible operations. Recall complex configurations for various operations, no labels to cut and fit into keycaps. After customizing the panel just as you need it, upload the configuration to a different panel for rapid changes to operations of other same model panels on your network.
