The COBALT WAVE RTR-64×64 12G SDI/ASI/MADI Router is a midsize 64×64 Crosspoint solution contained within a compact 4U (7 inch) tall frame.
This router provides a high density solution that offers unprecedented flexibility, ease of use & integration. The frame is a thin 3.75 inch deep chassis.
A single 10/100/1000 Ethernet port for IP based controls such as General Remote protocol SW-P-08 and PESA PNET.
The unit also has RS 422 and RS 232 9pin serial communication ports. The integrated web server supports browser control and system setups which can be saved and recalled quickly.
This compact design is specifically optimized for 12G SDI operation but handles lower SDI rates with ease.
Key Features
64x64 Crosspoint / 12G SDI I/O
Full size 75 ohm BNC connectors
External analog reference for RP-168 switch point timing
SW-P-08 & PESA PNET remote control protocol
Redundant power supply connections
Compatible with Cobalt Digital WAVE control panels (and many other brands)
Five Year Warranty
Specifications
Compact / High Density Frame
12G / 6G / 3G / 1.5G / SD / ASI / MADI
Full size 75 ohm BNC connectors
Quiet Fan-less design with Fan Option for operation in environments above 50°c
Redundant power supply connections
Size
19 inch Rack Mount
7 Inch / 4U tall
3.75 Inch deep, including front bezel & rear connectors
Weight
<11 lbs.
Diagrams

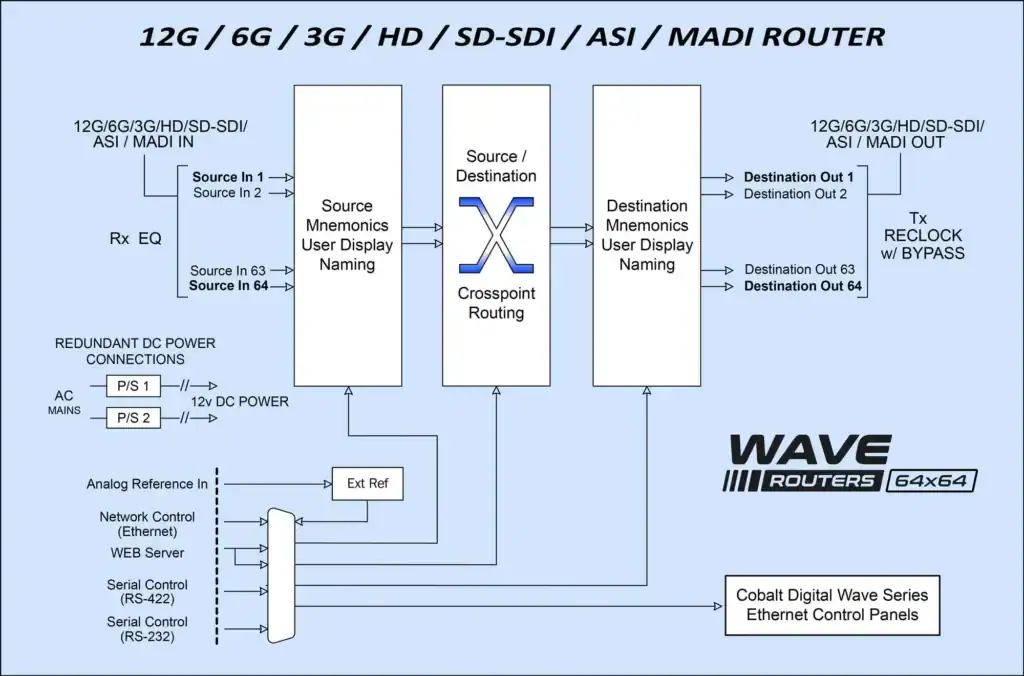

Block Diagram
