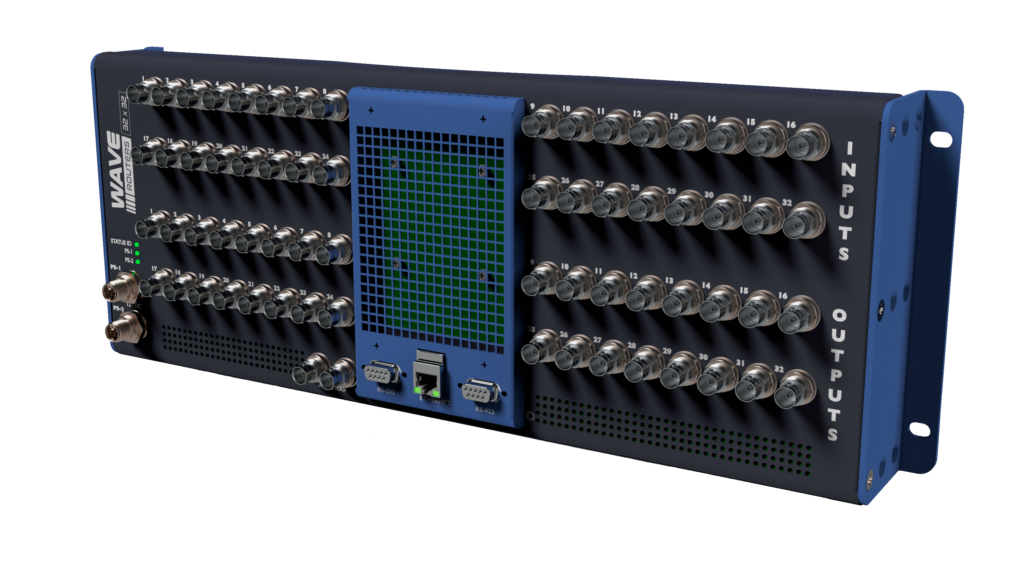

The COBALT WAVE RTR-32×32 12G SDI/ASI/MADI ROUTER is a 32×32 Crosspoint solution contained within a compact 4U (7 inch) tall frame that is a thin 3.75 inch deep chassis.
This router offers unprecedented flexibility and ease of use and integration.
This unit has a single Ethernet port for IP-based protocols such as SW-P-08 and PESA PNET.
The WAVE series also offers RS 422 and a RS 232 9pin serial communication ports.
The integrated web server supports browser control and system setups which can be saved and recalled quickly.
Routing setups can be saved as presets, allowing one-button engage with WAVE Series remote control panels.
This compact design is specifically optimized for 12G SDI operation but handles lower SDI rates with ease.
Key Features
Compact 4U solution
Direct interface compatibility SW-P-08 & PESA PNET protocol
Compatibility with other brands of control panels (conforming with SW-P-08 or PESA PNET protocol)
Design specifically optimized for 12G support
Web browser remote control status monitoring, setup and controls
External analog reference for RP-168 switch point timing
Five year warranty
Specifications
Inputs
(32) SDI / ASI / MADI
Outputs
(32) SDI / ASI / MADI OUTPUTS
Full size 75 ohm BNC connectors
Quite fan-less operation w/Fan option for operation in environments above 50°c
9-PIN COMM PORTS (RS232 & RS422)
(1) 10/100/1000 BaseT Ethernet Port
Redundant power supply connections
Dimensions
19 inch rack mount – 7 inch tall
3.75 inch deep chassis including front bezel and rear connectors
All coaxial connectors full size BNC
Diagrams

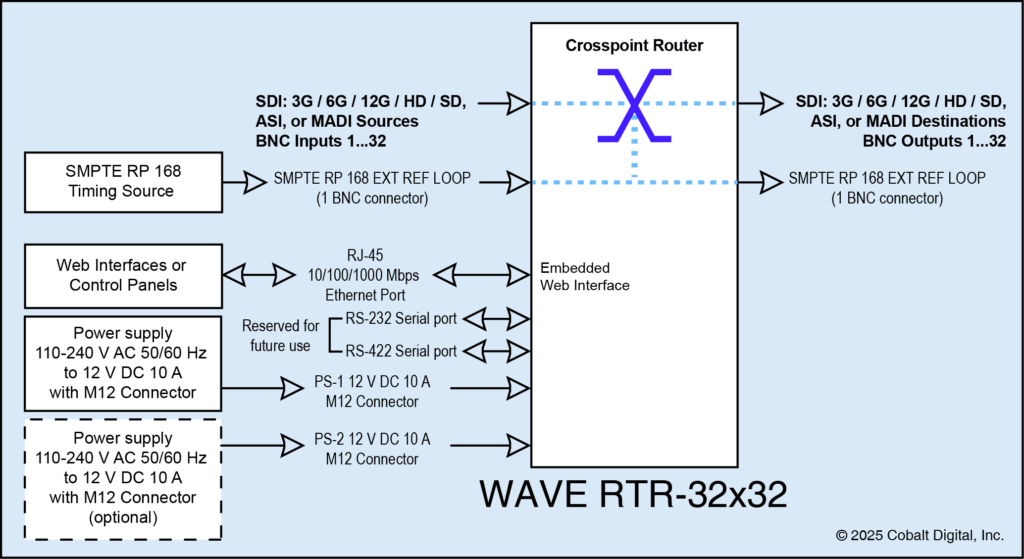

Block Diagram
