Product discontinued. See ROYAL 9915DA-2X16-XPT-12G for replacement.
9415DA-SFP
3G/HD/SD-SDI / ASI / MADI Reconfigurable Video SFP Transceiver/Distribution Amplifier with Full-Flexibility Crosspoint and Externally-Accessible SFP Modul
Product Categories
A card-based solution for high-density conversions between coax SDI/ASI, fiber, HDMI, and MADI.
The Cobalt® 9415DA-SFP 3G/HD/SD-SDI / ASI / MADI Reconfigurable Video SFP Transceiver/Distribution Amplifier with Full-Flexibility Crosspoint and Externally-Accessible SFP Module provides a card-based solution for high-density conversions between coax SDI/ASI, fiber, HDMI, and MADI. With an externally-accessible SFP cage on the card rear module, SFP modules can be easily hot-swapped for maintenance or card repurposing. Cards using SDI-IP SFP module -SFP-IP-SWD can be configured flexibly for various SDI-IP / IP-SDI conversions purposing via easy and economical software upgrade uploads. Because all connections are direct to the card rear module and external SFPs, all cabling remains undisturbed for card removal/installation.
A crosspoint (which is user-configurable via DashBoardâ„¢ remote control) allows the card to apply any of the card inputs to various coax DA outputs as well as up to 2 Rx and Tx paths through the external SFP. Up to 10 coaxial DA outputs are available per each card. Using a high-density split rear module, up to 20 cards can be installed in a frame, providing 40 channels of distribution.
The card accepts non-MSA video SFP modules, with single and dual-channel Tx and Rx modules available, supporting an extensive range of electrical/coax and fiber conversions. Excellent receive performance allows coaxial receive EQ for up to 110m 3G, 180m HD, and 360m SD cable length (1694A). Full user DashBoardâ„¢ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
9415DA-SFP
Key Features
Externally-accessible SFP cages allow easy card repurposing. Wide array of industry-standard SFP modules available, including fiber I/O, HDMI and 2022-6/2110 IP.
Fully-flexible coaxial crosspoint/DA provides up to 10 copies per card. Crosspoint can select from any card input.
Excellent coax receive performance – EQ allows 1694A cable lengths up to 110m (3G) / 180m (HD) / 360m (SD)
Full support of 3G/HD/SD-SDI and ASI/DVB
Automatic reclocking for all SDI data rates (auto-bypass for non-SDI data rates
SFP-based converters provide state-of-the-art fiber performance, power consumption, and compactness.
All outputs are non-inverting – ASI can be outputted on any output
DashBoardâ„¢ status and full remote control
Hot-swappable
Five year warranty
Specifications
Note: Inputs/outputs are a function of rear I/O module used. Fiber specifications are typical, and only applicable for card fitted with Tx or Rx (as applicable) fiber SFP module. Specifications subject to change.
Power
< 10 Watts
3G/HD/SD-SDI / ASI / MADI Inputs/Outputs (Coaxial Primary)
(2) 75Ω BNC input/outputs max (I/O-A and I/O-B)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
Coaxial Receive Performance (Cable Length; Belden 1694A)
SDI Receive Cable Length (1694A): 110m/180m/360m (3G/HD/SD)
Fiber Transmit Output (typ. with fiber Tx SFP)
LC connector
Fiber Wavelength, Tx: 1310 nm
Tx Power: -5.0 dBm (min)
Fiber Receive Input (typ. with fiber Rx SFP)
LC connector
Receive Sensitivity: -23 dBm; 1260 to 1620 nm (with internal power meter status display)
3G/HD/SD-SDI / ASI / MADI Outputs (DA Outputs)
Four, 1×2 75Ω BNC outputs (8 total, max). Each DA pair can receive any primary or opposite-channel DA signal.
Signal Level: 800 mV nominal
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Diagrams

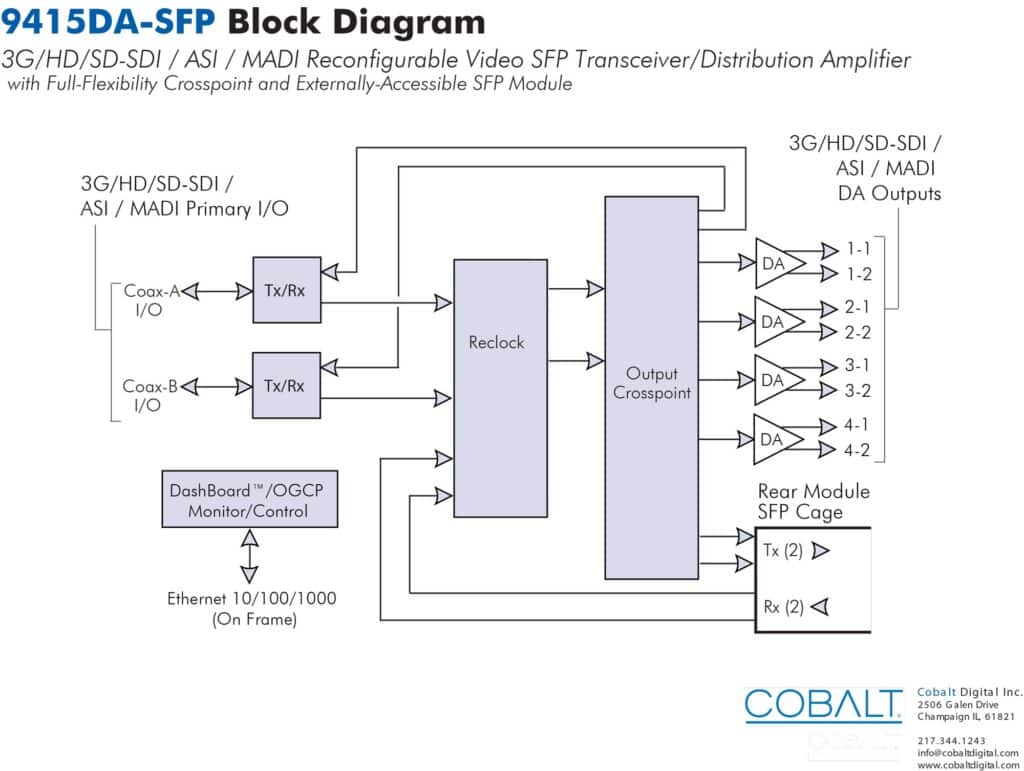

Block Diagram
Use fiber wavelength codes below for CWDM SFPs when ordering. Available wavelengths (in nm) are as follows: 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610.
In “WX” places in part number, substitute code for wavelengths in each place as listed below:
- -27: 1270nm
- -29: 1290nm
- -31: 1310nm
- -33: 1330nm
- -35: 1350nm
- -37: 1370nm
- -39: 1390nm
- -41: 1410nm
- -43: 1430nm
- -45: 1450nm
- -47: 1470nm
- -49: 1490nm
- -51: 1510nm
- -53: 1530nm
- -55: 1550nm
- -57: 1570nm
- -59: 1590nm
- -61: 1610nm
(Example: -SFP-EO-CWDM-27 has 1270 nm Tx wavelength)
