The award-winning Cobalt® 9922-2FS 3G/HD/SD-SDI Dual-Channel Frame Sync with Audio/Video Processing, AES/Analog Audio Embedding/De-Embedding and CVBS I/O offers two independent signal paths of frame sync / audio embedding and de-embedding on a single open-Gear® card. Using our HPF-9000 20-slot frame, this provides up to 40 channels of processing in a single frame. The 9922-2FS represents a whole new level of openGear packaging density!
Advanced frame sync features include per-channel audio delay, audio/video offset, and output rate conversion to and from 23.98/29.97/59.94 to 24/30/60 frame rates. Frame sync can select from multiple reference inputs, with failover to alternate selected sources.
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Bulk and per-channel audio delay controls easily address lip-sync issues.
A convenient input crosspoint can select from up to four SDI inputs to be applied to either of the card’s two processing paths. The input crosspoint allows manual selection of input via remote control or GPIO, or failover to alternate inputs on loss of input conditions. For each path, two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. Import of user trouble slate graphics is also supported in addition to standard test pattern insert as an input LOS marker. With option +T-SLATE, import of user trouble slate graphics is also supported in addition to standard test pattern insert as an input LOS/quality event marker. Moving-box insertion can serve as a dynamic raster confidence check even when the input video image is static. Included standard is closed captioning absence/presence detection for CEA 608/708 and line 21 SD closed captioning.
Option +TTS provides high-quality Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. It interfaces with industry standard Windows Share folder systems to receive non-proprietary text, XML, or similar plain text files, and converts and inserts realistic human-voice audio into user-configured audio channels. Option +EAS provides the ideal solution for keying Emergency Alert System (EAS) text crawls in the active video. Option +EAS directly converts serial crawl text data from EAS generators (such as Sage™ or Dasdec™) to a keyed scrolling text insertion. User-configurable fill background color and text size can be correlated to event severity. With option +ANC, the 9922-2FS offers full VANC/HANC ancillary data packet de-embedding and embedding for 3G/HD/SD-SDI streams.
The space-saving design of the 9922-2FS provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard width “split” rear module. This provides four video paths per each pair of slots, readily providing 20 channels of processing in only 10 slots. Two independent paths with fully independent user delays is perfect for setting up path delays for key/fill video.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The 9922-2FS is also available in stand-alone form factor BBG-1022-2FS.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Dual-path looping setup can provide same program video outputs with different timing offsets as desired
Multi-input RP168 clean switch, with manual selection or GPI controlled input selection. Path inputs can also be sourced from opposite path output with no external patching.
Auto-Changeover can be set to invoke failover for basic input loss. Quality Check option (+QC) provides alert actions on criteria such as black/frozen frame, audio silence, and closed-captioning absence. Threshold and hold-off are user configurable.
Moving-box insertion serves as a dynamic raster confidence check even in cases where the input video image is static
Frame Sync with full H/V offset and manual/LOS video pattern generator
Per-path dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions)
Option +TTS provides Text-To-Speech synthesis, directly converting EAS text to high-quality digital audio speech with no baseband signal breakouts or add-on units
Option +ANC adds full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, and other specialized user payloads. Multi-mode setup includes Bridge mode (card internal path with bypass bridging) or Insert/Extract modes for insert/extract to or from IP/serial external interfaces. SMPTE 337 embed/de-embed allows serial user data to be embedded and de-embedded over unused embedded audio pairs.
Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC, with output/burn-in timecode using selected format
Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
CVBS analog video I/O and analog/AES embed / de-embed with 4-line Adaptive Comb Filter
Video options include color correction and keying
Pattern generator for each channel can provide raster/test pattern and patterns for LOS failover insertion
Low-power/high-density design – less than 18 Watts per card
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Power
< 18 Watts
SDI Input/Outputs
Up to (4) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs (selectable as processed SDI Path 1 or Path 2, or selected input reclocked)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Minimum Latency (frame sync disabled):
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
Note: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.
CVBS Video Input/Outputs
(1) 75Ω BNC input
(1) 75Ω BNC output (selectable as Path 1 or Path 2 processed output). CVBS output functional only when selected path is carrying SD-SDI.
ADC resolution: 9-bit
Sampling frequency: 27 MHz (2x over-sampling)
Y/C separation: 4 line Adaptive Comb Filter
Freq. Response: ± 0.25 dB to 5.5 MHz
SNR: > 50 dB to 5.5 MHz (unweighted)
Differential Phase: < 1 degree
Differential Gain: < 1%
Nonlinearity < 1%
Discrete Audio Input/Outputs
AES-3id 75Ω inputs (8 pair (16-Ch) max)
AES-3id 75Ω outputs (8 pair (16-Ch) max)
Input AES SRC Range: 32 to 96 kHz
Balanced analog audio inputs (4-Ch max)
Balanced analog audio outputs (4-Ch max)
(I/O conforms to 0 dBFS = +24 dBu)
Analog Output Impedance: < 50Ω
Analog Reference Level: -20 dBFS
Analog Nominal Level: +4 dBu
Analog Max Output Level: +24 dBu (0 dBFS)
Analog Freq. Response: ±0.2 dB (20 Hz to 20 kHz)
Analog SNR: 115 dB (A weighted)
Analog Analog THD+N: -96 dB (20 Hz to 10 kHz)
Analog Crosstalk: -106 dB (20 Hz to 20 kHz)
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Timecode Insertion/Burn-In
Per-path burn-in and embedded video output timecode selected via user controls from input video SMPTE embedded timecode and/or audio LTC. Burn-in enable/disable user controls. Configurable for burn-in string of seconds, seconds:frames, seconds:frames:field. User controls for text size and H/V position.
Text Burn-In
(2) independent strings per path supported. Independent insertions controls for enable/disable and enable upon LOS. User controls for text size and H/V position.
GPIO/COMM
(2) GPI configurable to select input routing. (2) GPO configurable to invoke upon input selected. RS-232/485 comm port.
Frame Reference Input
(2) reference from frame bus or selected program video ref sources. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”.
Return Loss: >35 dB up to 5.75 MHz
Note: Per-path frame reference offers independent per-path controls (such as video delay offset).
However, all paths must be locked to the same selected reference selection (e.g., frame REF 2 used
for each path).
Diagrams

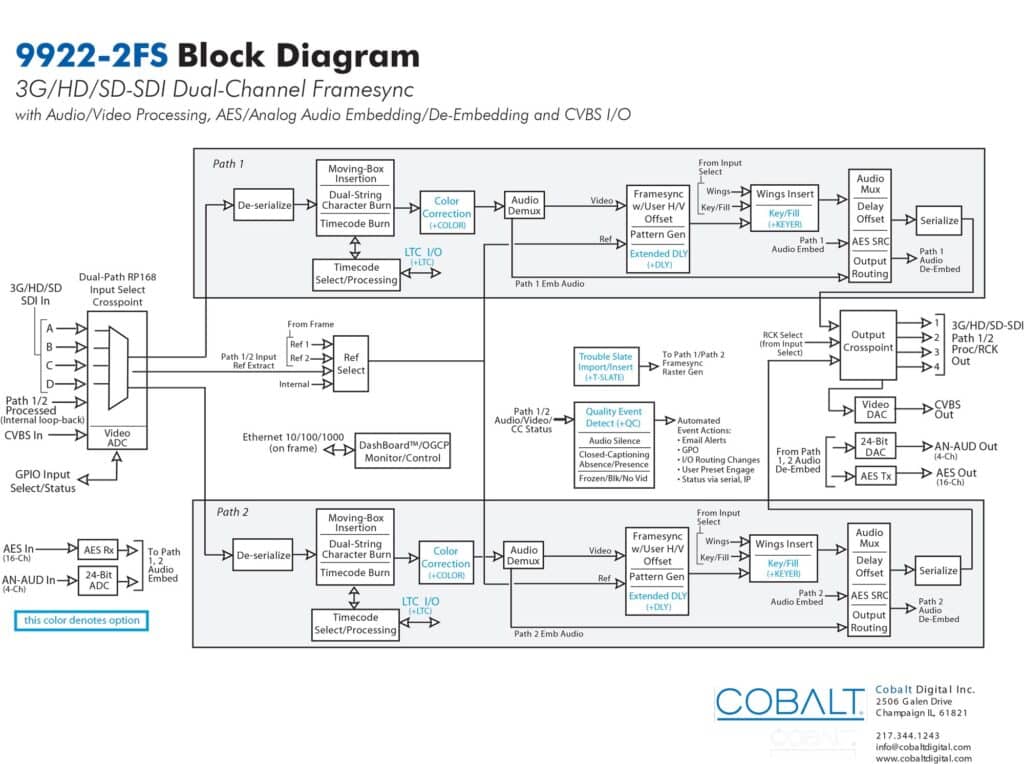

Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

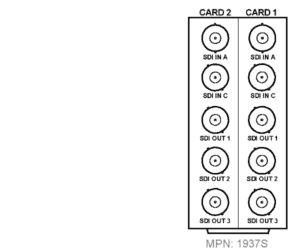

RM20-9922-2FS-A/S
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (3) SDI Out
(All coaxial connectors BNC)

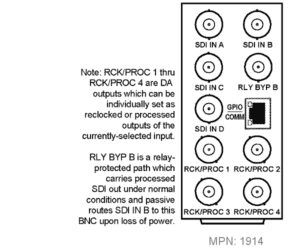

RM20-9922-2FS-C
- (4) SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) Relay protected SDI Out (proc or SDI IN B on loss of power)
(All coaxial connectors BNC)

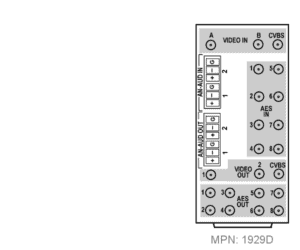

RM20-9922-2FS-D-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-D-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors HDBNC)

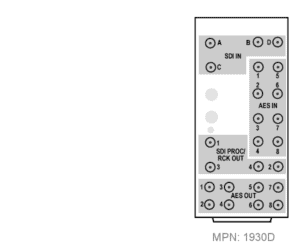

RM20-9922-2FS-E-DIN
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-E-HDBNC
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors HDBNC)

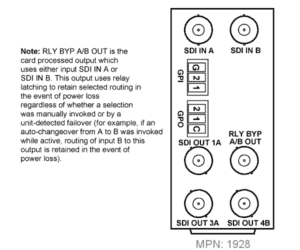

RM20-9922-2FS-F
- (2) SDI In
- (1) SDI Out with Relay Failover Protect
- (3) SDI Out (selectable as Proc out or RCK)
- (2) GPI
- (2) GPO
(All coaxial connectors BNC)

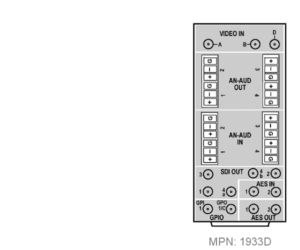

RM20-9922-2FS-H-DIN
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-H-HDBNC
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HDBNC)

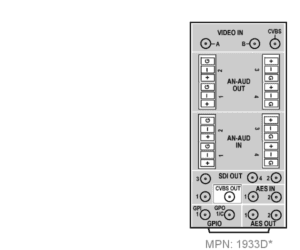

RM20-9922-2FS-J-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-J-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HDBNC)

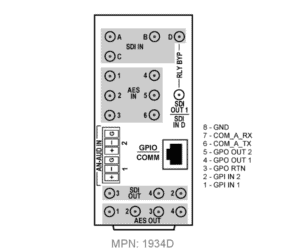

RM20-9922-2FS-K-DIN
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-K-HDBNC
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors HDBNC)

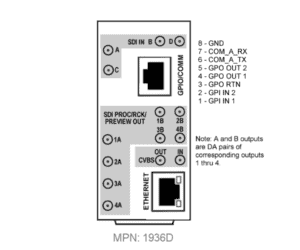

RM20-9922-2FS-L-DIN
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-L-HDBNC
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)

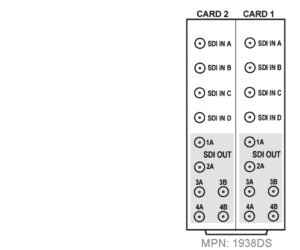

RM20-9922-2FS-M/S-DIN
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-M/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors HDBNC)

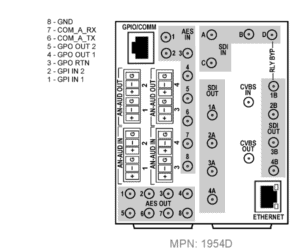

RM20-9922-2FS-N-DIN
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-N-HDBNC
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors HDBNC)
RM20-9922-2FS-P-DIN
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9922-2FS-P-HDBNC
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
