Product discontinued. See 9990-DEC-MPEG, BBG-1300-FR for replacement.
BBG-1190-DEC-MPEG
Standalone MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI Outputs
Product Categories
A high performance, real-time video decoding solution.
The Cobalt® BBG-1190-DEC-MPEG Standalone MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI Outputs provides a high performance real-time MPEG-2 and MPEG-4 SD and HD video decoding solution. Its design is practically future proof and decodes traditional video formats such as UDP and RTP (MPEG Transport Stream) as well as Internet and Mobile formats such as RTMP (Adobe® Flash) and HLS (Apple® HTTP Live Streaming). In addition to full remote control/monitoring via DashBoard™ software, the advanced front panel display/user interface allows initial and basic configuration setup without needing a computer or connection to remote control.
The BBG-1190-DEC-MPEG supports newer cameras that output RTMP and security cameras that output RTSP. Its low power design saves on operating expenses. IP and DVB-ASI input streams are supported, with outputs as ASI, DVB-ASI, SDI, HDMI, and CVBS (for SD streams) using MPEG4 AVC or MPEG2 decoding. The BBG-1190-DEC-MPEG can decode from several audio codecs and provides Dolby® pass-thru. SMPTE-2038 processing allows de-embedding SMPTE-2038 generic ancillary data packets.
Low-profile packaging fits 1 RU installations. Full user DashBoardâ„¢ remote control allows full status and control access locally or across a standard Ethernet network. A complete SNMP MIB is also included.
BBG-1190-DEC-MPEG
Key Features
Compact self-contained form with built-in AC power supply. Up to 3 units can be installed in a 1RU tray.
Comprehensive MPEG decoding solution – MPEG4 AVC and MPEG2 to ASI, SDI, HDMI and CVBS with built-in audio codecs. Convenience IP output also.
IP reception of unicast or multicast
DVB-ASI Turnaround to IP and ASI with SPTS Splitting
Supports RTMP and RTSP sources
MPEG-1 Layer II, AAC -LC, AAC-HE, E-AC-3 and AC-3 audio codecs standard (Dolby pass-thru; Dolby decode option available)
SMPTE-2038 processing allows de-embedding SMPTE-2038 generic ancillary data packets
SCTE-35 to SCTE-104 conversion
Support for RTP/ARQ interoperability with +RTP/ARQ Cobalt Encoder option. (Decoder +ARQ license included standard.)
Support for selecting desired video PID in multi-angle streams
Several options available for scalable configuring
SNMP MIB included
Ethernet remote control/monitoring via DashBoardâ„¢ software. Advanced front panel display/user interface allows initial and basic configuration setup without needing connection to external network or remote control.
Dual-redundant internal power supplies
Five year warranty
Specifications
Power
< 100-250 VAC, 47-63 Hz, 8 Watts max.
Inputs
(1) DVB-ASI 75Ω BNC
(1) IP; 1000Base-T RJ-45
Gen lock (from frame ref 1/2)
Outputs
(1) HD/SD-SDI 75Ω BNC (4:2:2 10-bit)
(1) CVBS 75Ω BNC
(1) DVB-ASI 75Ω BNC
(1) HDMI
(2) Analog Audio Out L/R (balanced 3-pin terminals or unbal RCA depending on model)
Network Transport Protocols
UDP (Unicast or Multicast)
RTP (Unicast or Multicast)
RTMP Client or Server (Adobe Flash)
RTSP (Security Camera)
SMPTE 2022 Pro-MPEG-FEC
ARQ
HTTP Live Streaming (HLS) client
Video Resolution
3G:
1920 x 1080p – 50/59.94/60
HD:
1920 x 1080i – 50/59.94/60
720 x 1280p – 50/59.94
SD:
480 x 720 – 29.97
576 x 720 – 25
Video Codec Supported
MPEG-2
H.264 4:2:0 High Profile
Audio Codec Supported/Processing
MPEG-1 Layer 2 (mp2)
AAC-LC
HE-AAC
AC-3, E-AC-3 (Dolby® pass-thru)
Regulatory Compliance
CE: CE marked in accordance with 89/336/EEC, 72/23/EEC and 1999/5/EEC Directive
UL: UL approval
US FCC: Part 15
EMC: EN55022, EN55024, EN6100-3-2
Safety: IEC60950
RoHS: 2011/65/EU
WEEE: 2012/19/EU
Physical
Dimensions (WxDxH): 5.8 x 14 x 1.7 in (14.6 x 35.6 x 4.4 cm) (including component projection)
Operating Temperature/Humidity: 32°F to 122°F (0°C to 50°C); 5% to 95% non-condensing
Note: When ordering the BBG-1190-DEC-MPEG, you have the option to choose either RTMP – Balanced or Unbalanced Analog Audio Input:
- BBG-1190-DEC-MPEG-B
Standalone MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI with Balanced Analog Audio Outputs - BBG-1190-DEC-MPEG-U
Standalone MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI with Unbalanced (RCA) Analog Audio Outputs
Diagrams

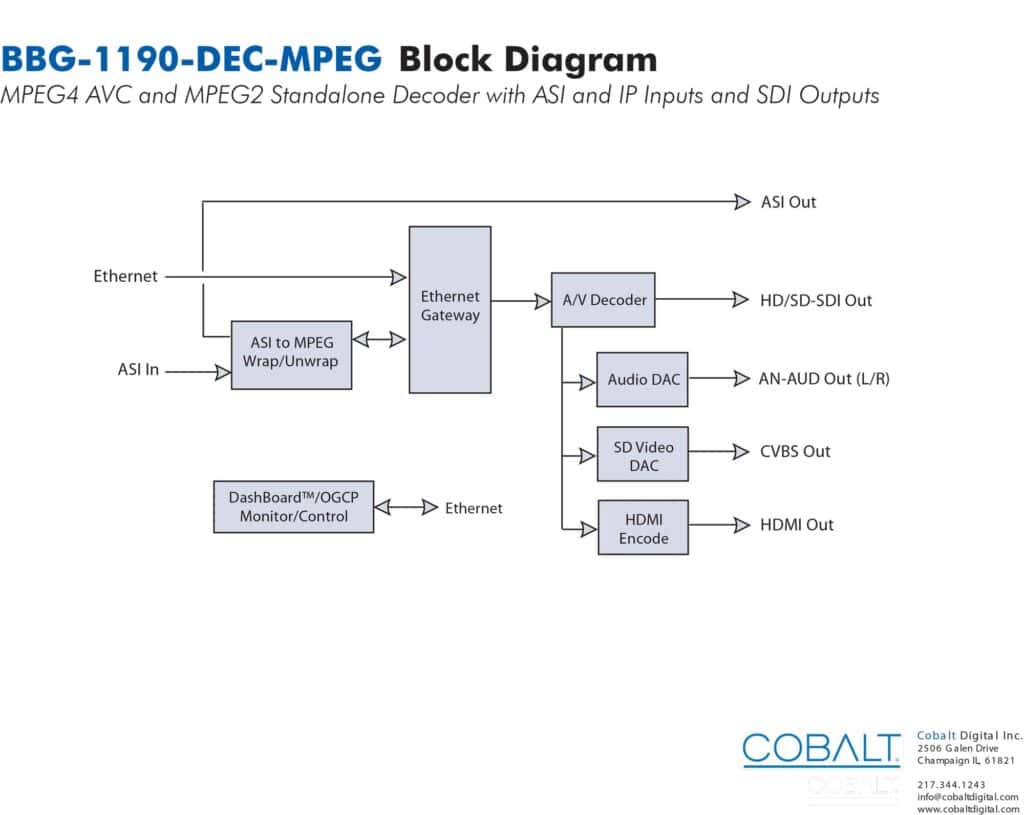

Block Diagram
