SAPPHIRE BBG-2110-4Ho/4Sio
Quad channel SMPTE ST 2110 to HDMI 2.0 / SDI converter unit with four simultaneous HDMI 2.0 outputs and four simultaneous SDI outputs.
Product Categories
ConvertersJPEG-XS Converters
ST 2110 / IPMXST 2110 / IPMX Conversion
Mini-ConvertersST 2110/IPMX to HDMI/SDI Format Mini-Converters
Received uncompressed and JPEG XS* content on HDMI monitors in a simple and cost-effective way.

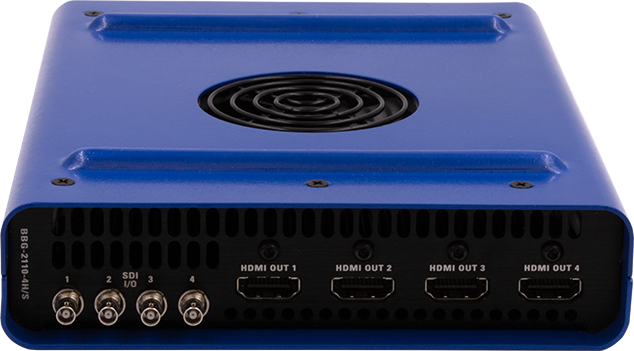

The COBALT SAPPHIRE BBG-4Ho/4Sio Quad channel SMPTE ST 2110 to HDMI 2.0 / SDI converter unit with four simultaneous HDMI outputs and four simultaneous SDI outputs.
This mini converter addresses the need to display received baseband and JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini converter is designed to be mounted behind a monitor.
The unit features dual SFP cages with support for 10G and 25G Ethernet ports with an additional 1Gbps copper Ethernet port for out-of-band management.
The unit supports SMPTE ST 2022 7 Seamless Switching up to Class C operation for WAN environments.
The unit also supports NMOS IS-04/IS-05 control and management (both in-band and out-of-band) and in-band PTP support.
*Optional JPEG-XS compressed ST 2110-22 requires a license.
Note: The SAPPHIRE BBG-2110-4Ho/4Sio currently supports 1 path of 4K: the other 3 paths support up to 1018p.
SAPPHIRE BBG-2110-4Ho/4Sio
Key Features
SMPTE 2110-20/22 to HDMI converter unit with four simultaneous HDMI and four simultaneous SDI outputs. There are limitations on the configuration when there are SDI inputs.
Designed to be mounted behind the monitor.
Active cooling (fan)
Redundant power connections
4 SFP cages - *Initially only 2 will be used but the other two are there for future additional IP networks or possible SDI over fiber support.
(4) Bidirectional SDI I/O, either all inputs or all outputs
4 HDMI 2.0 Outputs

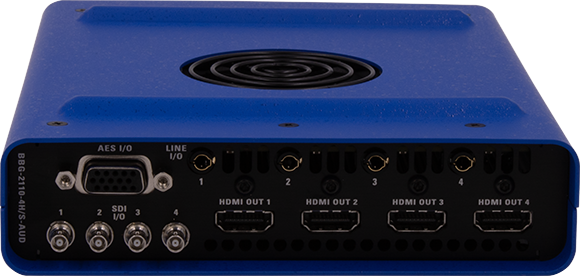

*Optional audio -BBG-4Ho/4Sio-AUD with (4) 3.5mm TRS jacks for consumer analog audio levels. Configurable in software as Analog Inputs or Outputs.
(1) Reference Output (SYNC OUT) (reserved for future use)
(1) Reference Input (SYNC IN) (reserved for future use)
(1) RJ45 Ethernet Port 100/1000 for communication and control
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.
Five Year Warranty
Specifications
Inputs
(4) 25G SFP28 cage receptacles (Note: Two of the SFP cages are reserved for future use.)
(1) HDBNC reference input (SYNC IN) (reserved for future use)
Outputs
(4) HDMI 2.0 Output Type A standard connector
(4) HDBNC SDI outputs
(1) HDBNC reference output (SYNC OUT) (reserved for future use)
(8 pairs) AES (Note: AES outputs will be enabled in the future and will require the-BBG-2110-4Ho/4Sio-AUD option.)
Control
(1) RJ45 Ethernet Port 100/1000
Power
(2) 12VDC/4A Redundant Inputs
Typical Power Consumption < 35 Watts
Dimensions
5.8” x 7.85” x 1.6
Other
Active cooling fan
Diagrams

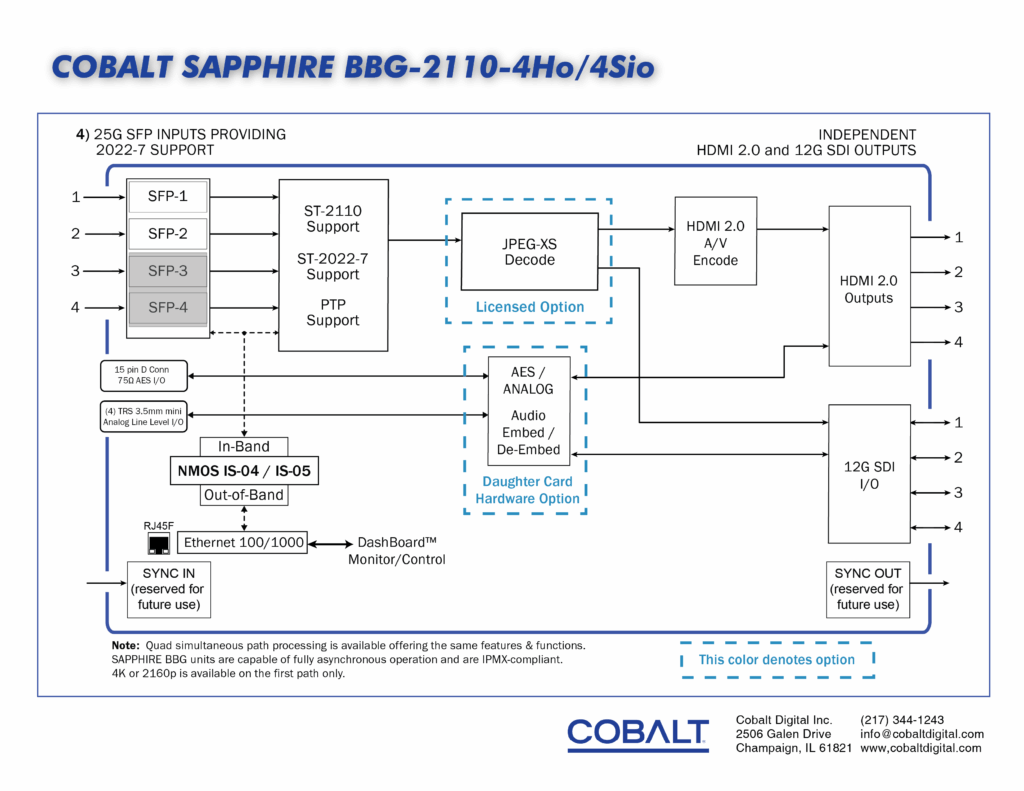

Block Diagram
