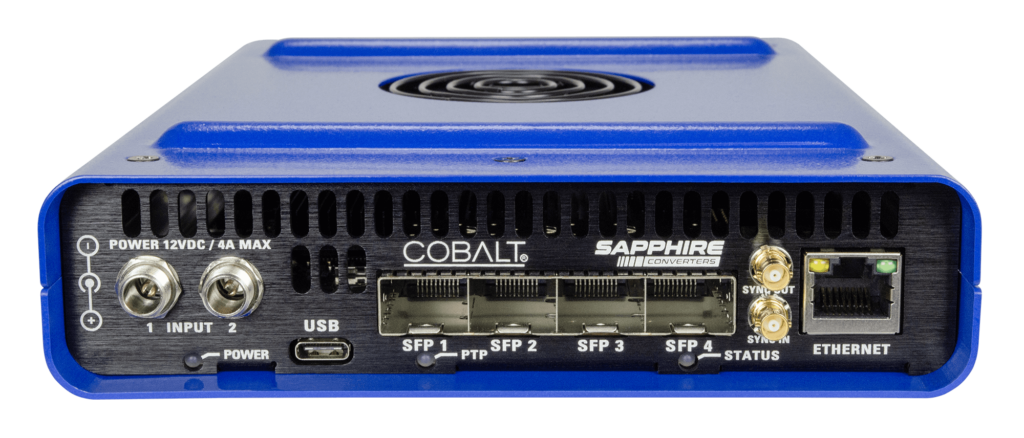

Cobalt Digital introduces the SAPPHIRE BBG-2110-4Hi/4Sio Quad channel SMPTE ST 2110 – 20/22 baseband to HDMI / SDI converter unit with four simultaneous HDMI and four simultaneous SDI outputs. This mini converter addresses the need to display received baseband and JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini converter is designed to be mounted behind the monitor. The converter includes Quad SFP cages with support for 10G and 25G Ethernet ports, additional 1Gb copper Ethernet port for out-of-band management, support for SMPTE ST 2022 7 Seamless Switching up to Class C operation for WAN environments. Support for NMOS IS 04/IS 05 control and management (both in-band and out-of-band) and in-band PTP support. The SAPPHIRE BBG units are the ideal choice for directly displaying incoming baseband and JPEG-XS* content on HDMI monitors, including content originating from a WAN connection. The units can be mounted directly behind the monitor and will not take up any rack space. The unit depicted here features an active cooling (fan) and the audio hardware option* (-BBG-2110-4Ho/4Sio-AUD)
* +JPEG-XS optional license
Note: The SAPPHIRE BBG-2110-4Ho/4Sio currently supports 1 path of 4K. The other 3 paths support up to 1080p.
Key Features
SMPTE 2110-20/22 to HDMI converter unit with four simultaneous HDMI and four simultaneous SDI outputs. There are limitations on the configuration when there are SDI inputs.
Designed to be mounted behind the monitor.
Active cooling (fan)
Redundant power connections
4 SFP cages - *Initially only 2 will be used but the other two are there for future additional IP networks or possible SDI over fiber support.
4 bidirectional SDI I/O
4 HDMI Outputs

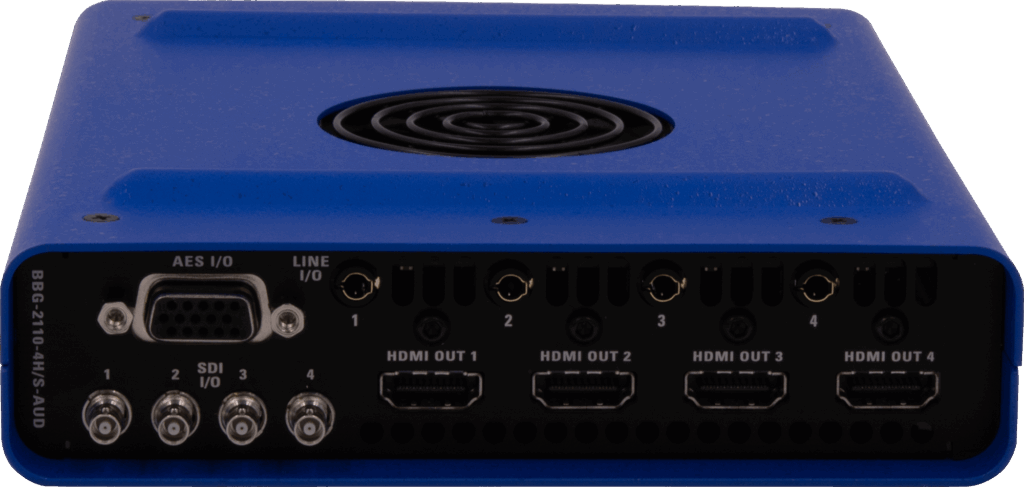

With the factory installed audio option* there are (4) 3.5mm TRS jacks for consumer analog audio levels. Configurable in software as Analog Inputs or Outputs.
1 Reference Input – *future use
1 Reference Output – *future use
RJ45 - Ethernet control
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.
Specifications
Inputs
(4) 25G SFP28 cage receptacles (Note: Two of the SFP cages are reserved for future use.)
(1) HD-BNC reference input (Note: The reference input will be enabled at a future date.)
Outputs
(4) HDMI 2.0 Output Type A standard connector
(4) HD-BNC SDI outputs
(1) HD-BNC reference output (Note: The reference output will be enabled at a future date.)
(8 pairs) AES (Note: AES outputs will be enabled in the future and will require the-BBG-2110-4Ho/4Sio-AUD option.)
(8 channels) Analog Audio (unbalanced) (Note: Analog Audio will be enabled at a future date and will require the -BBG-2110-4Ho/4Sio-AUD option.)
Control
(1) RJ45 Ethernet Port 100/1000
Power
(2) 12VDC/4A Redundant Inputs
Typical Power Consumption < 35 Watts
Dimensions
4″ x 5.5″ x 1.5″
Other
Active cooling (fan)
Diagrams

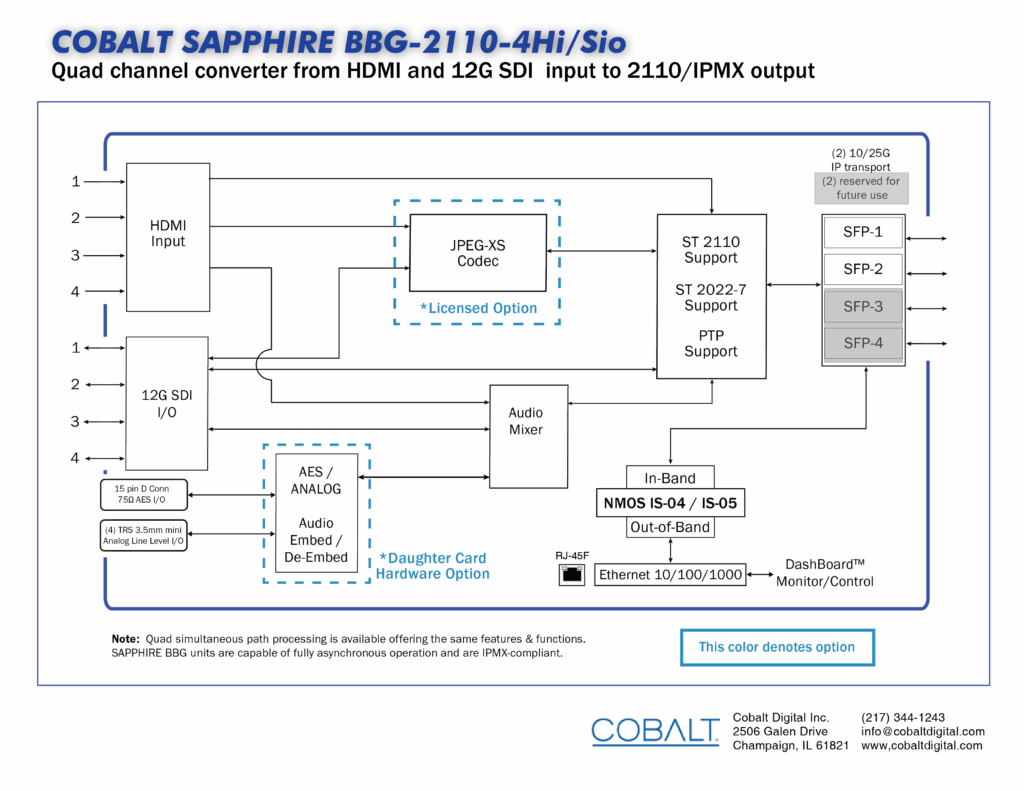

Block Diagram
