The Cobalt® 9410DA-2EO 3G/HD/SD-SDI / ASI / MADI Fiber Dual EO Transport/Distribution Amplifier with Full-Flexibility Crosspoint provides a card-based solution for high-density conversion from coax to fiber (with two independent EO channels), as well as coaxial distribution. The 9410DA-2EO is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
SFP-based EO converters provide state-of-the-art fiber performance, power consumption, and compactness. A crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows the card to apply any of the card inputs to various coax DA outputs as well as two independent fiber output channels. Up to 9 flexibly-sourced coaxial DA outputs are available per each card.
Using a high-density low-power design along with a high-density split rear module, up to 20 cards can be installed in a frame, providing 40 channels of EO conversion as well as up to 180 coaxial DA outputs. Excellent receive performance allows coaxial receive EQ for up to 110m 3G, 180m HD, and 360m SD cable length (1694A). Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Dual independent coax-to-fiber channels. Fiber outputs can be sourced from any card coaxial input.
Full support of 3G/HD/SD-SDI and ASI/DVB
Fully-flexible coaxial crosspoint/DA provides up to 9 copies per card. Crosspoint can flexibly select from any card input or output, with auto-reclock or user reclock bypass for any source.
Excellent coax receive performance – EQ allows 1694A cable lengths up to 110m (3G) / 180m (HD) / 360m (SD)
SFP-based EO converters provide state-of-the-art fiber performance, power consumption, and compactness
Automatic reclocking for all SDI data rates (auto-bypass for non-SDI data rates)
Optical Tx power status fields allow optical transmit confidence assessment
All outputs are non-inverting – ASI can be outputted on any output
DashBoard™ status and full remote control
Five year warranty
Specifications
Note: Inputs/outputs are a function of rear I/O module used.
Power
< 10 Watts
3G/HD/SD-SDI / ASI / MADI Inputs/Outputs (Coaxial Primary)
(2) 75Ω BNC input/outputs max (A-I/O and B-I/O)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
Coaxial Receive Performance (Cable Length; Belden 1694A)
SDI Receive Cable Length (1694A): 110m/180m/360m (3G/HD/SD)
Fiber Transmit Output
(2) Fiber outputs (independent paths from card crosspoint); LC connectors
Fiber Wavelength, Tx: 1310 nm
Tx Power: -5.0 dBm (min)
3G/HD/SD-SDI / ASI / MADI Outputs (DA Outputs)
Four, 1×2 75Ω BNC outputs (8 total, max). Each DA pair can receive any primary or opposite-channel DA signal.
Signal Level: 800 mV nominal
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Note: Specifications subject to change.
Diagrams

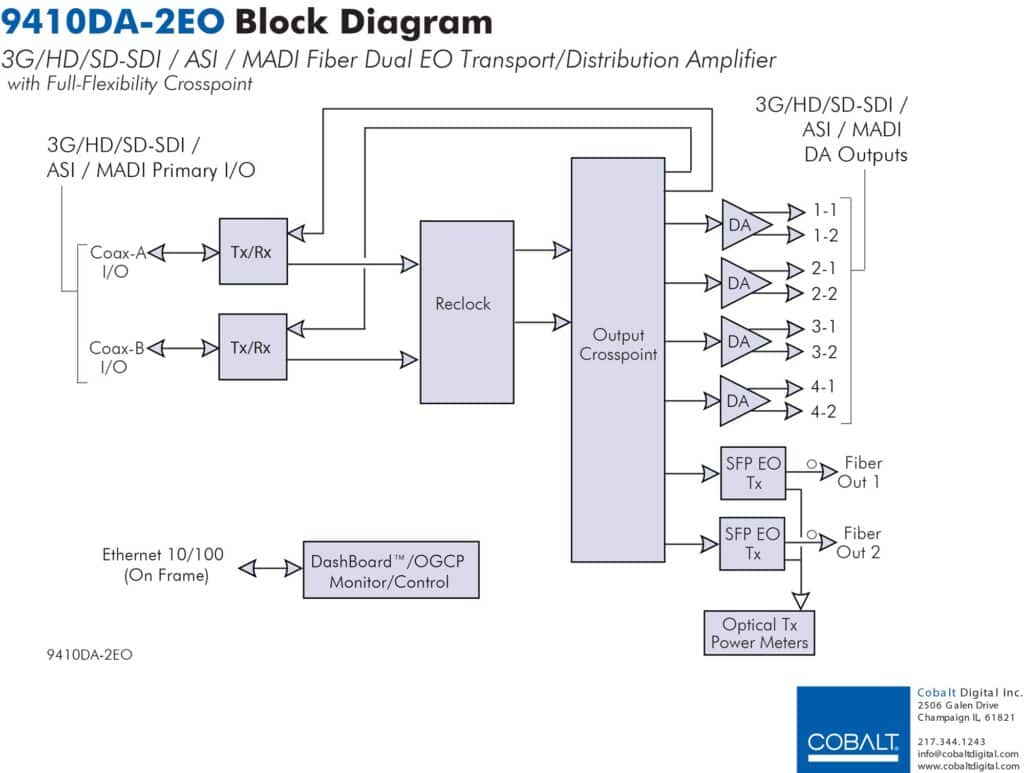

Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

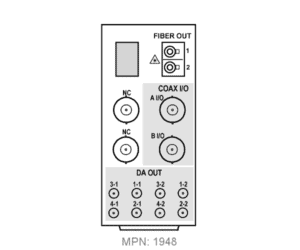

RM20-9410DA-2EO-D-DIN
- (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (8) DA Out coaxial (DIN1.0/2.3)
Note: Mates to card in odd slot.
Note: This rear module supersedes -B model (which is discontinued).
RM20-9410DA-2EO-D-HDBNC
- (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (8) DA Out coaxial (HDBNC)
Note: Mates to card in odd slot.
Note: This rear module supersedes -B model (which is discontinued).

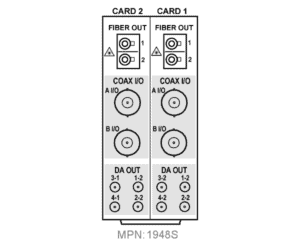

RM20-9410DA-2EO-D/S-DIN
(Dual-card (split) rear module; connections are per card)
- (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (4) DA Out coaxial (DIN1.0/2.3)
Note: This rear module supersedes -B/S model (which is discontinued).
RM20-9410DA-2EO-D/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (4) DA Out coaxial (HDBNC)
Note: This rear module supersedes -B/S model (which is discontinued).

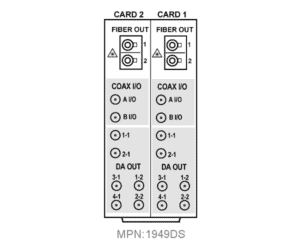

RM20-9410DA-2EO-E/S-DIN
(Dual-card (split) rear module; connections are per card)
- (2) SDI/ASI/MADI coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (6) DA Out coaxial
(All coaxial connectors DIN1.0/2.3)
Note: This rear module supersedes -C/S model (which is discontinued).
RM20-9410DA-2EO-E/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (2) SDI/ASI/MADI coaxial In/Out (Coax-A I/O and Coax-B I/O)
- (2) Fiber Out (Fiber Out 1 and Fiber Out 2; LC connectors)
- (6) DA Out coaxial
(All coaxial connectors HDBNC)
Note: This rear module supersedes -C/S model (which is discontinued).
