The Cobalt® ROYAL 9910DA-WC Audio Word Clock Distribution Amplifier provides 1×8 distribution with one word clock input and eight 75Ω word clock outputs. Card jumpers allow setting the input as Hi-Z looping input or on-card 75Ω terminated. The card can be accessed using DashBoard™ remote control for status monitoring.
Key Features
Multi-mode input provides hi-Z looping or card-terminated operation
Remote monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Five year warranty
Specifications
Power
2 Watts
Word Clock Input
Number of inputs: (1)
Impedance: User selectable as hi-Z looping or card-terminated 75Ω
Sensitivity: 200 mV
Word Clock Outputs
Number of DA outputs: up to (8)
Impedance: 75Ω
Level: 10 Vp-p square wave (unterminated), 5 Vp-p square wave (terminated into 75Ω)
Looping Output: (1)
Performance
Sampling frequencies up to 192 kHz
Diagrams
Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

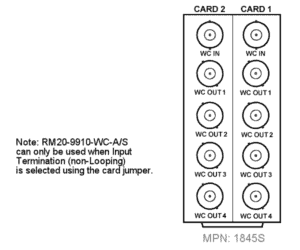

RM20-9910WC-A/S
(Dual-card (split) rear module; connections are per card)
- Word Clock In
- (4) Word Clock Out
(All coaxial connectors BNC)

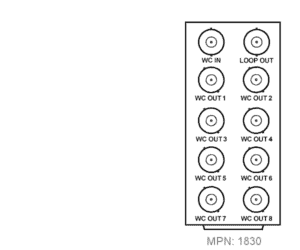

RM20-9910WC-B
- Word Clock In
- (1) Loop Output
- (8) Word Clock Out
(All coaxial connectors BNC)

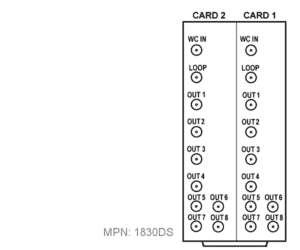

RM20-9910WC-B/S-DIN
(Dual-card (split) rear module; connections are per card)
- Word Clock In
- (1) Loop Output
- (8) Word Clock Out
(All coaxial connectors DIN1.0/2.3)
RM20-9910WC-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- Word Clock In
- (1) Loop Output
- (8) Word Clock Out
(All coaxial connectors HDBNC)
