SAPPHIRE BBG-2110-2Hi2Ho/4Sio
ST 2110/IPMX Dual-Channel Converter with 12G SDI and HDMI 2.0 Inputs
Product Categories
ConvertersJPEG-XS Converters
ST 2110 / IPMXST 2110 / IPMX Conversion
Mini-ConvertersST 2110/IPMX to HDMI/SDI Format Mini-Converters
The COBALT SAPPHIRE BBG-2110-2Hi2Ho/4Sio Dual-channel SMPTE ST 2110/IPMX to HDMI/SDI converter unit with two simultaneous HDMI 2.0 and SDI inputs and two simultaneous HDMI 2.0 and SDI outputs.
The unit features dual SFP cages with support for 10G and 25G Ethernet ports with an additional 1Gbps copper Ethernet port for out-of-band management.
Standard features include SMPTE ST 2022-7 seamless switching, NMOS IS-04/IS-05 control and management, both in-band and out-of-band, and uncompressed ST 2110-20 video.
*Optional JPEG-XS compressed ST 2110-22 requires a license.
Note: The SAPPHIRE BBG-2110-2Hi2Ho/4Sio currently supports 1 path of 4K. The other path supports up to 1080p.
SAPPHIRE BBG-2110-2Hi2Ho/4Sio
Key Features

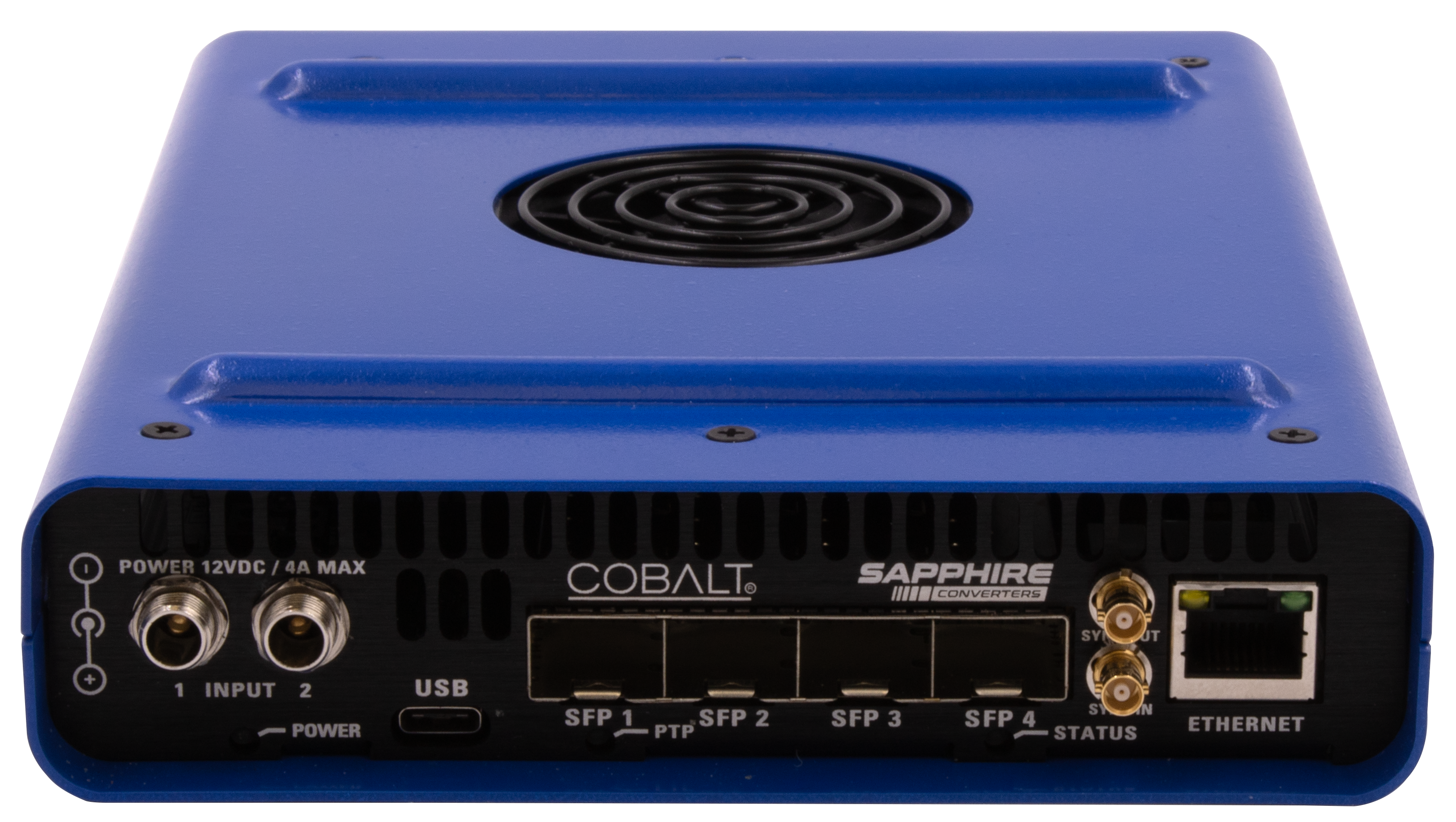

(4) SFP cages – (2) 10/25G IP transport and (2) reserved for future use
(2) SDI In and (2) SDI out
(2) HDMI 2.0 Inputs and (2) HDMI 2.0 Outputs
(1) RJ45 Ethernet Port 100/1000 for communication and control
Supports NMOS IS-04/IS-05 control, both in-band and out-of-band and SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation

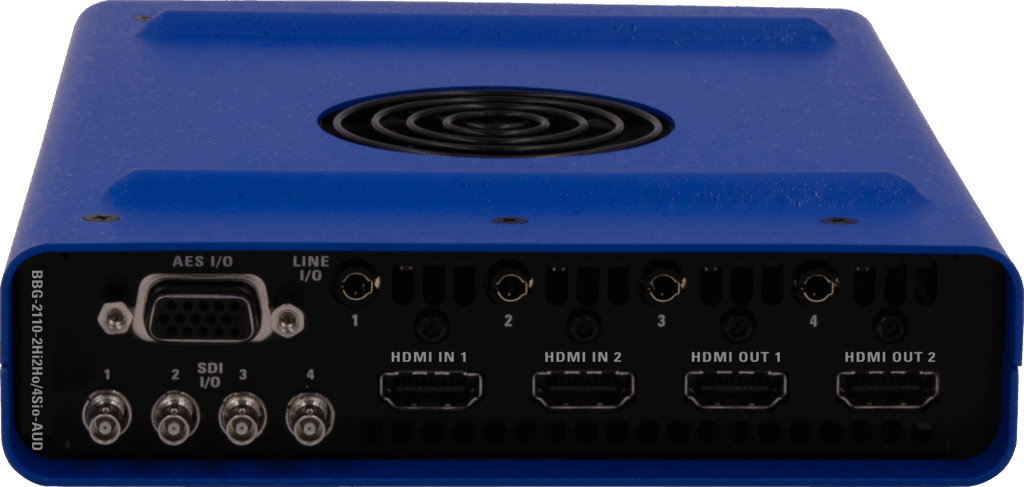

*Optional audio -BBG-2Hi2Ho/4Sio-AUD with (4) 3.5mm TRS jacks for consumer analog audio levels. Configurable in software as Analog Inputs or Outputs.
Five Year Warranty
Supports resolutions of: 720p, 1080i, 1080p, and 2160p (2160p is available on the first path only)
Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
Asynchronous operation and IPMX-ready
(2) 12VDC/4A Redundant Inputs Typical Power Consumption <35 watts
Active cooling fan
Specifications
Inputs
(2) HDMI 2.0 Inputs Type A standard connectors
(4) 25G SFP28 cage receptacles (Note: Two of the SFP cages are reserved for future use.)
(1) HDBNC reference Input (Note: Reserved for future use.)
Outputs
(2) HDMI 2.0 Output Type A standard connector
(4) HDBNC SDI Outputs
(1) HDBNC reference Output (Note: Reserved for future use.)
(8 channels) Analog Audio (unbalanced) (Note: Analog Audio requires the factory installed BBG-2110-2Hi2Ho/4Sio-AUD option.)
Control
(1) RJ45 Ethernet Port 100/1000
Power
(2) 12VDC/4A Redundant Inputs
Typical Power Consumption < 35 Watts
Dimensions
5.8” x 7.85” x 1.6
Other
Active cooling fan
Diagrams

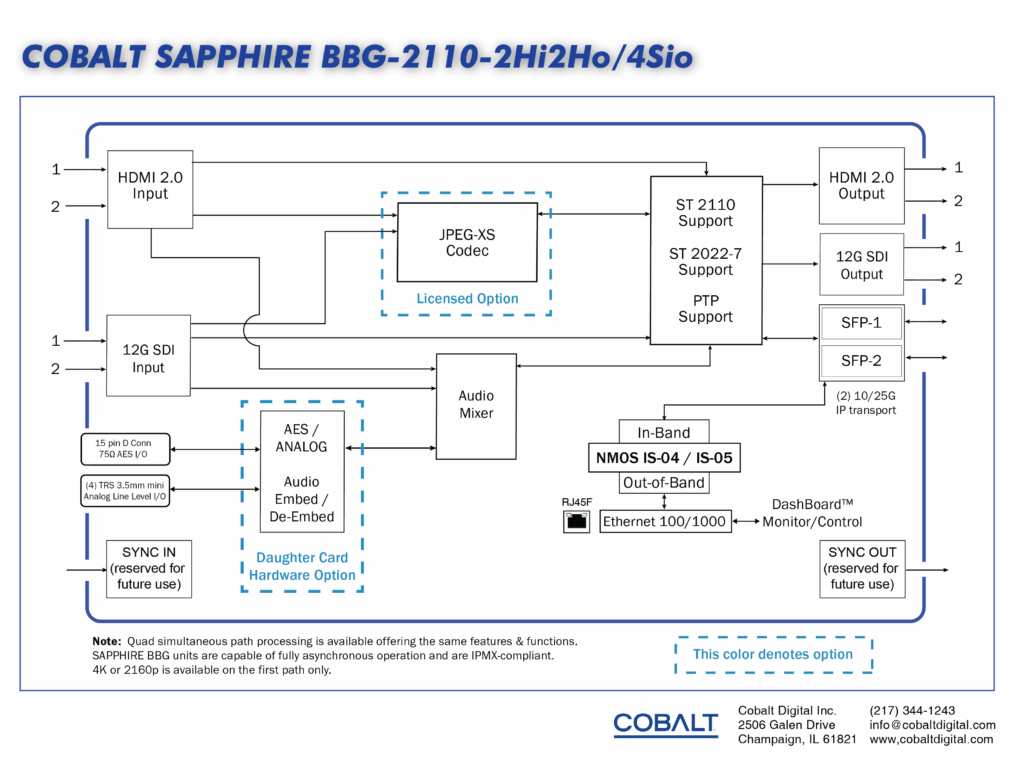

Block Diagram
