The Cobalt® TOPAZ 9902-UDX-DSP-CI Channel Integrator provides a comprehensive signal conversion and processing feature set designed to condition ingest Analog and Digital Audio and Video signals to meet comprehensive output requirements.
The TOPAZ 9902-UDX-DSP-CI Channel Integrator provides a powerful, high-density 3G/HD/SD-SDI/CVBS Up/Down/Cross Converter-Frame Sync and Embedder/De-Embedder platform with support for the following optional features:
- Linear Frame Rate Standards Conversion Option
- RGB Color Correction Option
- Trouble Slate Insertion Option
- Logo Generator Option
- External SFP Cage Hardware Option
- HDMI, Fiber, IP ST2110, ST2022-6 SFP Options
- Emergency Alert Crawl Generator Option
- Text-To-Speech Generator Option
- Real-Time Loudness Leveling (RTLL) Loudness Processing Options
- Dolby® Encode/Decode Options
- Stereo to Surround Sound Upmixing Option
Along with the extensive list of features and options, the TOPAZ 9902-UDX-DSP-CI offers comprehensive high-quality standards conversion utilizing Cobalt’s linear frame rate conversion to convert between virtually any SD/HD/3G format – 25/50, 29.97/30/59.94/60, and 23.98/24 (both film and PsF) from 525/625i to 1080p and anything in-between – with conversion to and from NTSC and PAL available for all input and output formats (see Diagrams for full conversion matrix). This broad flexibility makes the TOPAZ 9902-UDX-DSP-CI perfect for international signal aggregators and distributors in the Cable, DBS, and OTT markets.
I/O Capabilities
In addition to accepting and providing 3G/HD/SD-SDI I/O and CVBS I/O, the TOPAZ 9902-UDX-DSP-CI accommodates a wide array of baseband I/O, including:
- Externally accessible SFP cage option allows flexible added I/O, including fiber, HDMI, and IP.
- Accepts up to 16 channels (8 pairs) of discrete unbalanced AES (AES-3id) embed/de-embed. Per-pair SRC can be applied to consumer (non-professional) digital audio sources to synchronize to 48 kHz video.
- Full audio crosspoint between embedded channels, balanced analog I/O and AES I/O.
As content delivery platforms evolve, conversion and processing systems need to be as comprehensive and cost-effective as possible. Content providers/aggregators are tasked with receiving various signal types and standards and formatting them to the exact video, audio and metadata configuration needed on a per-channel basis, and need an easy-to-deploy means of integrating and optimizing the components that comprise a modern broadcast.
Designed to address these evolving needs in the densest foot print possible, the 9902-UDX-DSP-CI Channel Integrator provides the signal conversion and processing tool set needed to conform analog and digital audio and video signals and their associated metadata to meet sophisticated channel delivery requirements. Flexibility and advanced video processing including broadcast quality Up/Down/Cross conversion with Noise Reduction and Detail Enhancement makes the 9902-UDX-DSP-CI perfect for rentals and international signal aggregators and distributors in all markets.
The Channel Integrator is offered with a wide range of rear I/O options including high-density DIN and HDBNC and can be configured with a SFP I/O port option which adds support for either HDMI, fiber optic, or IP (SMPTE 2110 or SMPTE 2022-6).
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
High-density openGear comprehensive integration solution
Optionally accepts SMPTE resolution and frame rate signals via HDMI allowing for computer and consumer A/V sources to be ingested
Frame Sync synchronizes to external reference and provides audio/video offsets as desired
Dolby encoding/decoding, loudness processing, and upmixing DSP audio options available
Auto Adjust feature helps assure lip sync by assessing and alerting where DSP processing requires matching video delay
Up/Down/Cross Conversion with user and AFD, VI, and WSS ARC specifically tailored for broadcast video
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Power
24 Watts (including +DSP options)
Add 3 Watts for option -CI-SFP
SDI Input/Outputs
(4) 75Ω inputs (max)
(5) 75Ω outputs (max) (1 with relay bypass protect)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter 3G/HD/SD: Minimum Latency (scaler and frame sync disabled): SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
CVBS Video Input/Outputs
(1) 75Ω BNC input
(1) 75Ω BNC output. CVBS can be upconverted to any supported SDI format; all inputs can be downconverted to CVBS.
CVBS ADC resolution: 10-bit
CVBS ADC sampling: 4x oversampling
CVBS DAC resolution: 10-bit
CVBS DAC sampling: 16x oversampling
Y/C separation: 4-line Adaptive Comb Filter
Freq. Response: ± 0.25 dB to 5.5 MHz
SNR: >50 dB to 5.5 MHz (unweighted)
Differential Phase: <1 degree
Differential Gain: <1%
Nonlinearity <1%
Discrete Audio Input/Outputs
AES-3id 75Ω inputs (8 pair (16-Ch) max)
AES-3id 75Ω outputs (8 pair (16-Ch) max)
Input AES SRC Range: 32 to 96 kHz
Balanced analog audio inputs (4-Ch max)
Balanced analog audio outputs (4-Ch max)
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
ARC
ARC manually configurable (custom) or automatic triggering in full compliance/conformity with AFD (SMPTE 2016), VI (RP186), and WSS triggering.
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Audio Conversion Format
48 kHz sampling, 24-bit. Auto-SRC bypass for Dolby inputs. Analog audio I/O conforms to
+24 dBu 0 dBFS.
Note: Fiber specifications are typical, and only applicable for card fitted with optional Tx or Rx (as applicable) fiber SFP module. Specifications subject to change.
Fiber Transmit Output (typ. with fiber Tx SFP)
LC connector
Fiber Wavelength, Tx: 1310 nm
Tx Power: -5.0 dBm (min)
Fiber Receive Input (typ. with fiber Rx SFP)
LC connector
Receive Sensitivity: -23 dBm; 1260 to 1620 nm (with internal power meter status display)
HDMI Input (typ. with HDMI-to-SDI HDMI SFP)
(1) HDMI 1.4 Input; type D-micro connector; DVI-D compliant input (limited to SMPTE HD formats).
HDMI Output (typ. with SDI-to-HDMI SFP)
(1) HDMI 1.4 Output; type D-micro connector; DVI-D compliant input (limited to SMPTE HD formats).
Analog Audio Specifications
4-ch inputs; 4-ch outputs
Input Impedance: >10kΩ
Reference Level: -20 dBFS
Nominal Level: +4 dBu
Input Clip Level: +24 dBu (0 dBFS)
Freq. Response: ±0.2 dB (20 Hz to 20 kHz)
SNR: 115 dB (A weighted)
THD+N: -96 dB (20 Hz to 10 kHz)
Crosstalk: -106 dB (20 Hz to 20 kHz)
Output Impedance: <50Ω
Max. Output Level: +24 dBu (0 dBFS)
(I/O conforms to 0 dBFS = +24 dBu)
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”.
Diagrams
Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

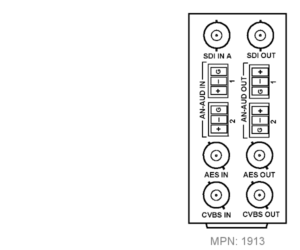

RM20-9902-DSP-CI-B
• (1) SDI In
• (1) CVBS In
• (2) Analog Audio Balanced In
• (2) Analog Audio Balanced Out
• (1) AES In
• (1) AES Out
• (1) SDI Out (selectable as processed or input RCK)
• (1) CVBS Analog Video Out

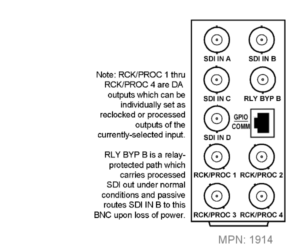

RM20-9902-DSP-CI-C
- (4) SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- (4) SDI Out (each selectable as processed out or
input RCK) - (1) Relay protected SDI Out (proc or SDI IN B on loss of
power)
(All coaxial connectors BNC)

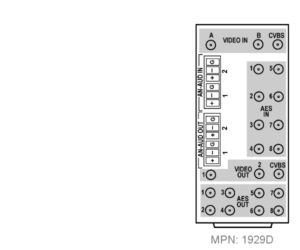

RM20-9902-UDX-DSP-CI-D-DIN
• (2) SDI In (selectable manually or as failover)
• (1) CVBS In
• (8) AES In
• (2) Balanced Analog Audio In
• (2) SDI Out (each selectable as processed out or input RCK)
• (1) CVBS Out
• (8) AES Out
• (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-D-HDBNC
• (2) SDI In (selectable manually or as failover)
• (1) CVBS In
• (8) AES In
• (2) Balanced Analog Audio In
• (2) SDI Out (each selectable as processed out or input RCK)
• (1) CVBS Out
• (8) AES Out
• (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

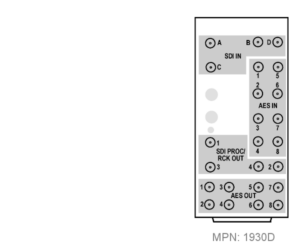

RM20-9902-UDX-DSP-CI-E-DIN
• (4) SDI In
• (8) AES In
• (4) SDI Out (each selectable as processed out or
input RCK)
• (8) AES Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-E-HDBNC
• (4) SDI In
• (8) AES In
• (4) SDI Out (each selectable as processed out or
input RCK)
• (8) AES Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

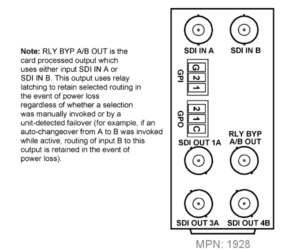

RM20-9902-UDX-DSP-CI-F
• (2) SDI In BNCs
• (1) SDI Out BNC with Relay Failover Protect
• (3) SDI Out BNCs (selectable as Proc out or RCK)
• (2) GPI
• (2) GPO

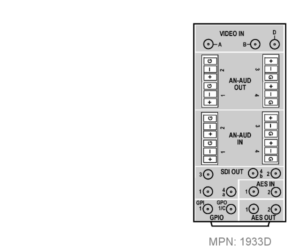

RM20-9902-UDX-DSP-CI-H-DIN
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-H-HDBNC
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or inputRCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

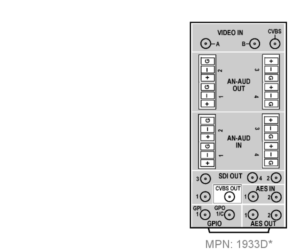

RM20-9902-UDX-DSP-CI-J-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-J-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

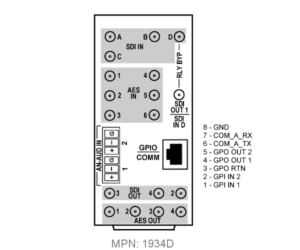

RM20-9902-UDX-DSP-CI-K-DIN
- (4) SDI In (selectable manually or as failover; )
- (1) Relay protected SDI Out (proc or SDI IN D on loss of power)
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (4) AES Out
- GPIO/COMM port (RJ-45)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-K-HDBNC
- (4) SDI In (selectable manually or as failover; )
- (1) Relay protected SDI Out (proc or SDI IN D on loss of power)
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (4) AES Out
- GPIO/COMM port (RJ-45)
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

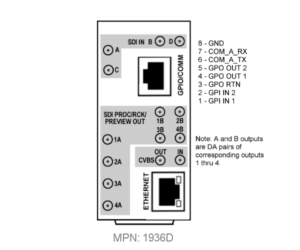

RM20-9902-UDX-DSP-CI-L-DIN
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-L-HDBNC
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

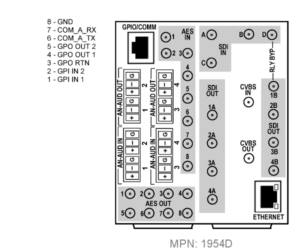

RM20-9902-UDX-DSP-CI-N-DIN
- (4) SDI In
- (1) CVBS In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-N-HDBNC
- (4) SDI In
- (1) CVBS In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

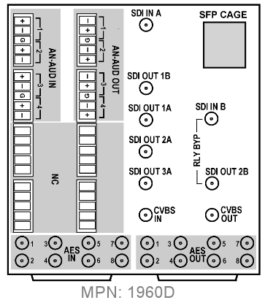

RM20-9902-UDX-DSP-CI-P-DIN
- (2) SDI In
- (1) CVBS In
- (4) Balanced Analog Audio In
- (8) AES In
- (1) SFP cage receptacle (valid with option -CI-SFP)
- (5) SDI Out (1 with relay bypass protect)
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) CVBS Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9902-UDX-DSP-CI-P-HDBNC
- (2) SDI In
- (1) CVBS In
- (4) Balanced Analog Audio In
- (8) AES In
- (1) SFP cage receptacle (valid with option -CI-SFP)
- (5) SDI Out (1 with relay bypass protect)
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) CVBS Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
