9341 8-Channel Analog Audio to AES Converter

Tabs

Overview

(This product is discontinued. Please see 9345 for its replacement.) The 9341 is an analog audio to AES converter, supporting up to eight balanced analog inputs into eight AES output channels (four AES pairs). The 24-bit audio conversion supports audio input levels up to +24 dBu. The AES output pairs can be locally timed, or timed to a frame reference or a DARS input.

The 9341 features full user remote and card-edge control of audio level/polarity and channel routing – all with user memory. Factory presets enable a return to factory settings.

9341 Options

• Audio Mixing (+AMx)
• Linear Acoustic Loudness Processing (+LP)
• Loudness Metering (+LM)
• Linear Acoustic Upmixing (+UM)

Features

Eight analog audio input channels
Balanced inputs to +24dB
24-bit audio conversion
Remote and local audio level and mixing control
Remote/local control of mapping and inversion
Four internal tone generators
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixing (+AMx)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

Loudness Metering (+LM)

Linear Acoustic Upmixing (+UM)

Diagrams

Specifications

Electrical
Power: 11 Watts

Analog Audio Input
Number of Inputs: 8-Ch balanced
Input Impedance: 3.2 kΩ
Connector: Removable 3-pin Phoenix
Signal Level: up to +24 dBu
Sample Rate: 48 kHz

AES Output
Number of Outputs: 4-pair unbalanced BNCs (AES-3id)
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

Rear Module Options

Rear Modules

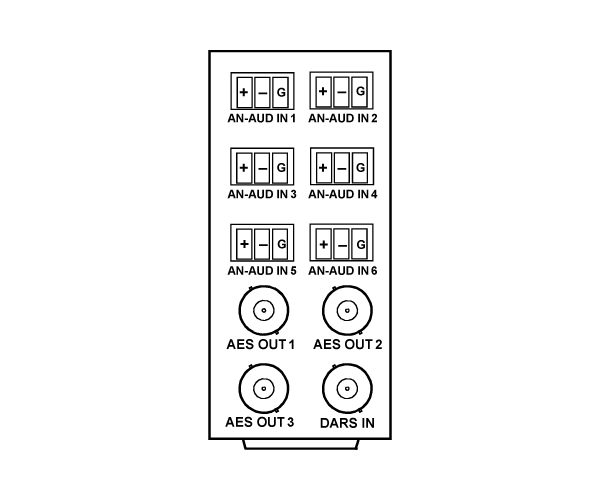

RM20-9341-B

   • (6) Balanced Analog Audio In
   • DARS In
   • (3) AES Out
   (All coaxial connectors BNC)

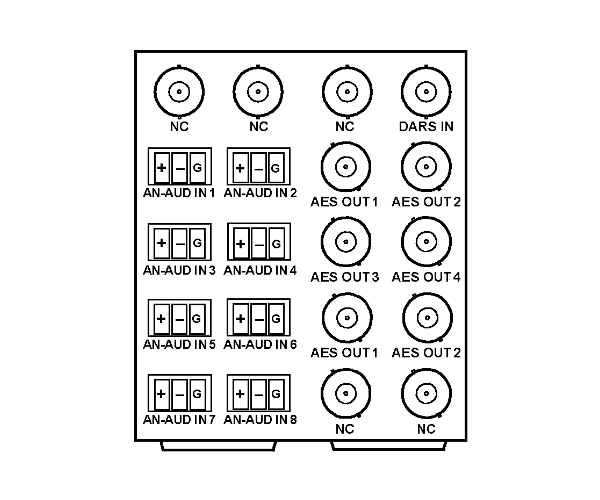

RM20-9341-C

   • (8) Balanced Analog Audio In
   • DARS In
   • (4) AES Out (1-4)
   • (2) AES Out Copy (1-2)
   (All coaxial connectors BNC)

Ordering Information

9341 8-Channel Analog to AES/EBU Digital Audio Converter
RM20-9341-B 20 Slot Frame Rear I/O Module (Standard Width) 6 Analog Audio Inputs, 3 AES Output BNCs, DARS Input BNC
RM20-9341-C 20 Slot Frame Rear I/O Module (Double Width) 8 Analog Audio Inputs, 6 AES Output BNCs, DARS Input BNC
