The 9345 Stereo Analog Audio to AES A/D Converter provides A/D audio conversion with a 1x4 AES signal distribution DA. The card supports audio sampling frequencies from 30 kHz to 192 kHz, and converts the incoming stereo analog audio signal to an AES digital audio signal using 24-bit conversion.
Internal clock generates audio sampling frequencies from 32 kHz to 192 kHz
Can synchronize to frame, external or internally generated reference signals
24-bit audio conversion
1x4 AES output DA
Remote control/monitoring via DashBoard™ software
Five year warranty
Electrical Power: 4 watts
Analog Audio Input Number of Inputs: 2 balanced Impedance: >20 kΩ balanced Signal Level: up to +24 dBu Freq. Response: +/-0.2 dB at 20 Hz to 20 kHz THD+N: <0.01% Noise: -84 dBu at 20 Hz to 20 kHz
AES Output Number of Outputs: 1x4 unbalanced (AES-3id) Impedance: 75 Ω Resolution: 24-bit Level: 1 Vp-p Sample rate: 30 kHz to 192 kHz Jitter: <5 ns

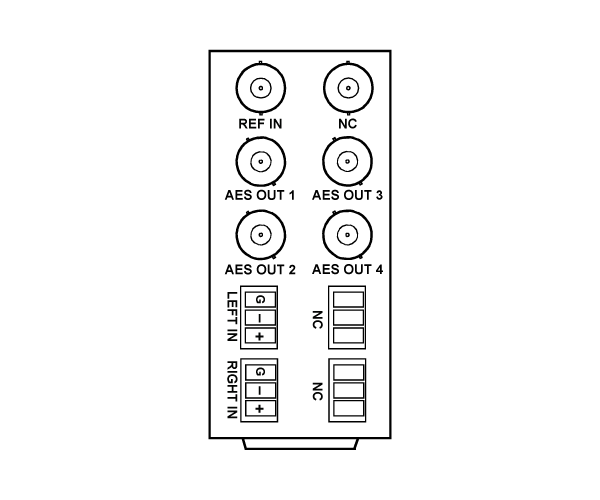

RM20-9345-B
• Ref (DARS) In • (2) Balanced Analog Audio In (L/R) • (4) AES Out (All coaxial connectors BNC)
RM20-9345-B/S
(Dual-card (split) rear module; connections are per card) • Ref (DARS) In • (2) Balanced Analog Audio In (L/R) • (2) AES Out (All coaxial connectors BNC)
