9253 Cobalt ROYAL 2x4 AES Audio Distribution Amplifier, 75 Ohms

Tabs

Overview

The Cobalt ROYAL 9253 is a dual AES/EBU distribution amplifier, providing four copies of each incoming signal. The card supports audio sampling frequencies from 30 kHz to 192 kHz. It can also be used as a 1x8 distribution amplifier, providing eight outputs that are sample rate converted. Cable equalization and reclocking techniques enable the 9253 to reliably recover the incoming digital audio signal.

The 9253 has two 75Ω unbalanced AES inputs and four 75Ω unbalanced AES outputs per AES input. Card status can be monitored using DashBoard ™ remote control software.

Features

Supports audio sampling frequencies from 30 kHz to 192 kHz
Cable equalization and data relocking on AES inputs
Configurable as dual 1x4 or 1x8 distribution amplifier
Remote monitoring via DashBoard™ software
Five year warranty

Diagrams

Specifications

Electrical
4 Watts

AES Input
Number of Inputs: 2 unbalanced BNC (2 Ch per BNC)
Impedance: 75 Ω
Supported external reference type: DARS (via frame reference or
AES IN 2 set as ref input). Ref source set using card jumpers.
Resolution: 24-bit
Level: 0.2 - 7 Vp-p
Sample rate: 30 kHz to 192 kHz

AES Output
Number of outputs: 8 unbalanced BNC (2 Ch per BNC)
Impedance: 75 Ω
Resolution: 24-bit
Level: 1 Vp-p
Sample rate: 30 kHz to 192 kHz
Jitter: < 5 ns

Rear Module Options

Rear Modules

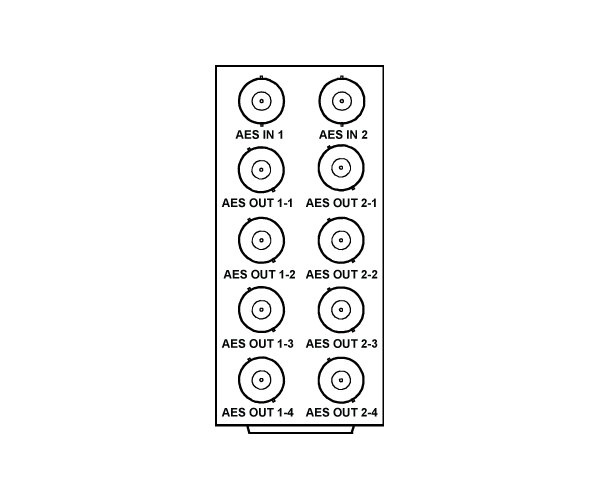

RM20-9253-A

   • (2) AES Audio In (IN 1 and IN 2)
   • (8) AES Audio Out (1-1 thru 1-4 OUT; 2-1 thru
      2-4 OUT; can be used as 1x8 DA)

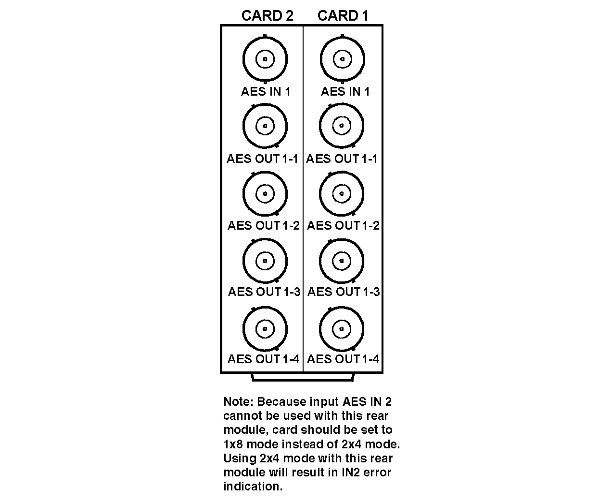

RM20-9253-A/S

   (Dual-card (split) rear module; connections are per card)
   • (1) AES Audio In (IN 1)
   • (4) AES Audio Out (1-1 thru 1-4 OUT
   (Rear module offers only IN 1 1x4 DA)

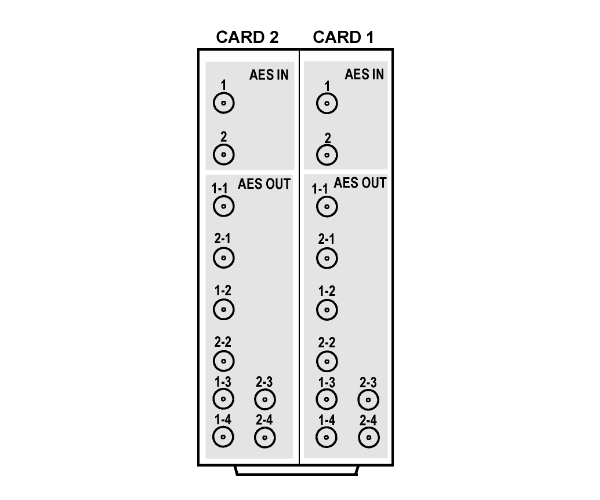

RM20-9253-B/S

   (Dual-card (split) rear module; connections are per card)
   • (2) AES Audio In (IN 1 and IN 2)
   • (8) AES Audio Out (1-1 thru 1-4 OUT; 2-1 thru
      2-4 OUT)
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

Cobalt ROYAL 9253 2 X 4 AES/EBU Reclocking Distribution Amplifier, 75 Ohm, Unbalanced, BNC I/O
RM20-9253-A 20-Slot Frame Rear I/O Module (Standard Width) 2 AES Input BNCs, 8 AES Output BNCs
RM20-9253-A/S 20-Slot Frame Rear I/O Module (Split, supports 2 cards) AES IN 1 Input BNC, 4 AES DA Output BNCs (connections are per card)
RM20-9253-B/S-HDBNC 20-Slot Frame Rear I/O Module (Split, supports 2 cards) 2 AES Input BNCs, 8 AES Output BNCs (connections are per card; all connectors HD-BNC)
RM20-9253-B/S-DIN 20-Slot Frame Rear I/O Module (Split, supports 2 cards) 2 AES Input BNCs, 8 AES Output BNCs (connections are per card; all connectors DIN1.0/2.3)
