9241 Analog Audio Distribution Amplifier (DISCONTINUED)

Tabs

Overview

(This product is discontinued. Please see 9243 for its replacement.)

The 9241 Analog Audio Distribution Amplifier is an analog audio distribution amplifier with up to eight low-impedance outputs designed for broadcast use. It can be used as either a mono or two-channel (stereo) audio DA. The 9241 can provide eight copies of a single (mono) input signal or four copies each of a  two (stereo) inputs.

The 9241 can also sum two channels for creating a mono mix. It can also detect dead-air silence and set an alarm when no audio is present.

Features

Handles mono or stereo signals
Multi-mode with stereo (2x4), mono 1x8, or summed (L+R) mono x8 output modes
Silence detection with configurable threshold/holdoff time
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Diagrams

Specifications

Electrical
Power: 3 Watts

Analog Audio Input
Number of inputs: 2 balanced
Impedance: >20 kΩ balanced
Max Level: +27.5 dBu
Common Mode
Rejection: >80 dB, 20 Hz to 20 kHz

Performance
Freq. Response: >0.1 dB at 20 Hz to 20 kHz
Gain: -14 dB to +18 dB cont. variable
Harmonic Distortion: <0.01%
SNR: > 95 dBu

Analog Audio Output
Number of Outputs: 8
Impedance: 60 Ω balanced
Max Level: +26 dBu

Rear Module Options

Rear Modules

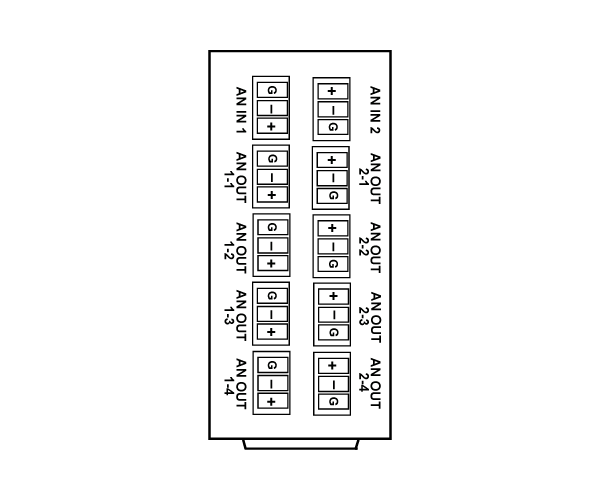

RM20-9241-B

   • (2) Balanced Analog Audio In (IN 1 and IN 2)
   • (8) Balanced Analog Audio Out (1-1 thru 1-4 OUT; 2-1 thru
      2-4 OUT)
      (Can be used as 1x8 DA)

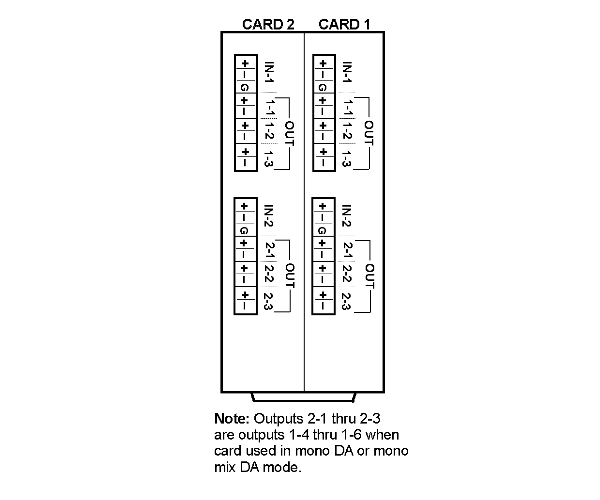

RM20-9241-C/S

   (Dual-card (split) rear module; connections are per card)
   • (2) Balanced Analog Audio In (IN 1 and IN 2)
   • (6) Balanced Analog Audio Out (1-1 thru 1-3 OUT; 2-1 thru
      2-3 OUT)
      (Can be used as 1x6 DA)

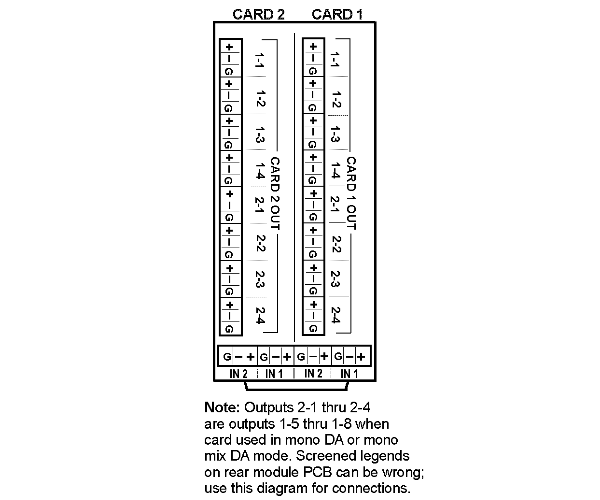

RM20-9241-D/S

   (Dual-card (split) rear module; connections are per card)
   • (2) Balanced Analog Audio In (IN 1 and IN 2)
   • (8) Balanced Analog Audio Out (1-1 thru 1-4 OUT; 2-1 thru
      2-4 OUT)
      (Can be used as 1x8 DA)

Ordering Information

9241 Analog Audio Distribution Amplifier, 1 X 8 Mono or 1 X 4 Stereo, with Summing Control
RM20-9241-B 20-Slot Frame Rear I/O Module (Standard Width) 2 Differential Analog Audio In, 8 Differential Analog Audio Outs
RM20-9241-C/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) Dual 1x3 Differential Analog Audio In/Out (connections are per card)
RM20-9241-D/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) Dual 1x4 Differential Analog Audio In/Out (connections are per card)
