9910DA-AV-EQ Cobalt ROYAL Analog Video Distribution Amplifier with EQ

Tabs

Overview

The Cobalt ROYAL 9910DA-AV-EQ Analog Video Distribution Amplifier with EQ provides 1x8 distribution with one analog input and eight 75Ω analog outputs. Card jumpers allow setting the input as differential (floating ground) or single-ended, AC or DC coupled, and Hi-Z looping input or on-card 75Ω terminated. Trim controls located on the front of the card allow EQ adjustment and gain control. The card can be accessed using DashBoard™ remote control for status monitoring. Status monitoring shows the video format of the input signal.

Features

Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
Signal path can be set as DC or AC coupled
User adjustable EQ and gain with easily accessible controls on front of card edge. EQ optimizes performance for input cable lengths exceeding 1000 ft (300m).
User-selectable input clamping (none, fast, or slow clamping selectable)
Remote monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel. Card Status display shows presence and video format (e.g., 525i, 720p, 1080i) of input signal.
Hot-swappable
Five year warranty

Diagrams

Specifications

Power
2 Watts
Analog Video Input
Number of inputs: (1)
(Compatible with any NTSC or PAL black-burst or tri-level analog video format.)
Impedance: User selectable as hi-Z looping or card-terminated 75Ω
Level: 1 Vp-p, nominal
Return Loss: 46 dB @ 3.58 MHz
Input modes: User selectable as differential/single-ended and AC or DC coupled
Analog Video Outputs
Number of DA outputs: up to (8)
Impedance: 75Ω
Level: 1 Vp-p, nominal
Looping Output: (1)
Performance
Frequency response: >0.05 dB @ 3.58 MHz
Differential Gain: >0.15% @ 3.58 MHz
Differential Phase: >0.15° @ 3.58 MHz
S/N: >60 dB; 5 MHz BW

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

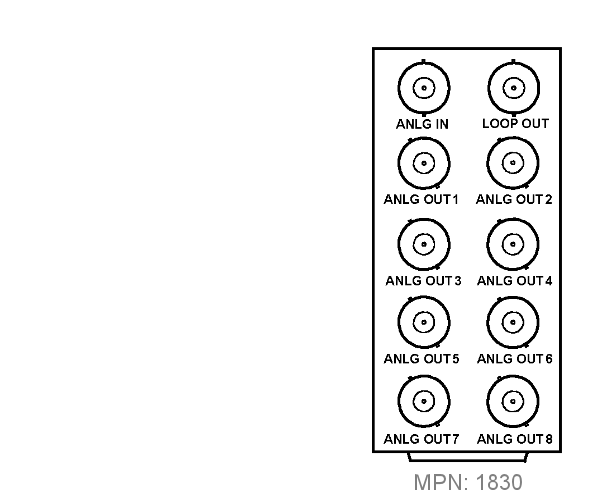

RM20-9910AV-B

   • Analog Video In
   • (1) Loop Output
   • (8) Analog Video Out
    (All coaxial connectors BNC)

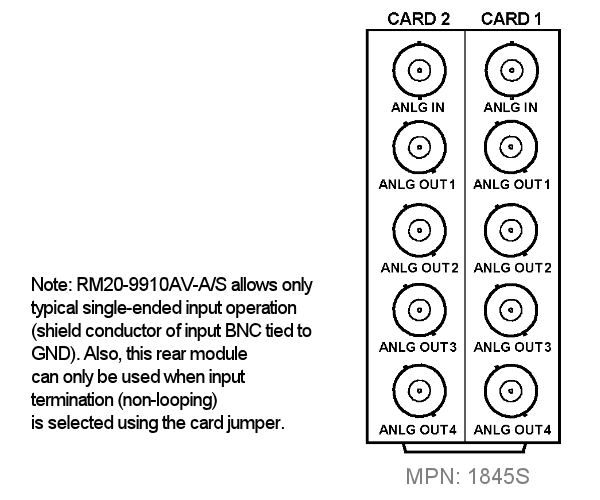

RM20-9910AV-A/S

   (Dual-card (split) rear module; connections are per card)
   • Analog Video In
   • (4) Analog Video Out
    (All coaxial connectors BNC)

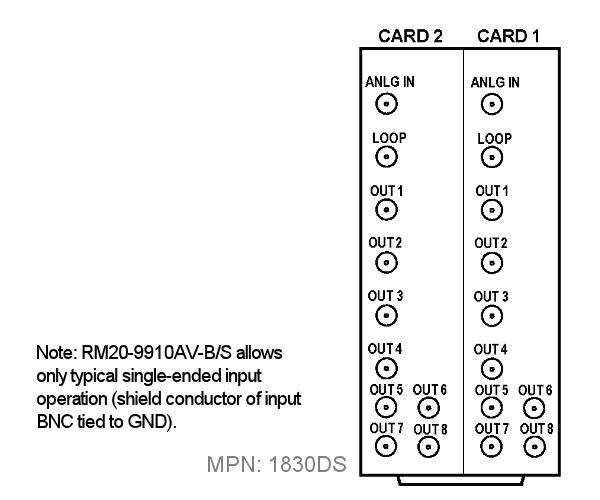

RM20-9910AV-B/S-DIN
RM20-9910AV-B/S-HDBNC

    (Dual-card (split) rear module; connections are per card)
   • Analog Video In
   • (1) Loop Output
   • (8) Analog Video Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

Cobalt ROYAL 9910DA-AV-EQ Analog Video Distribution Amplifier with EQ

Rear Modules:

RM20-9910AV-B 20-Slot Frame Rear I/O Module (Standard Width) (1) Analog Video Input BNC, (8) Analog DA Output BNCs, (1) Input Loop Output BNC
RM20-9910AV-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input BNC, (4) Analog DA Output BNCs (connections are per card)
RM20-9910AV-B/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input, (8) Analog DA Outputs, (1) Input Loop Output (connections are per card; all connectors are DIN 1.0/2.3)
RM20-9910AV-B/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input, (8) Analog DA Outputs, (1) Input Loop Output (connections are per card; all connectors are HD-BNC)
