9910DA-AV Cobalt ROYAL Analog Video Distribution Amplifier

Tabs

Overview

The Cobalt ROYAL 9910DA-AV Analog Video Distribution Amplifier provides 1x8 distribution with one analog input and eight 75Ω analog outputs. Card jumpers allow setting the input as differential (floating ground) or single-ended, and Hi-Z looping input or on-card 75Ω terminated. A trim control located on the front of the card allows gain control. The card can be accessed using DashBoard™ remote control for status monitoring. Status monitoring shows the video format of the input signal.

Features

Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
Remote monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel. Card Status display shows presence and video format (e.g., 525i, 720p, 1080i) of input signal.
Hot-swappable
Five year warranty

Diagrams

Specifications

Power
2 Watts

Analog Video Input
Number of inputs: (1)
(Compatible with any NTSC or PAL black-burst or tri-level analog video format.)
Impedance: User selectable as hi-Z looping or card-terminated 75Ω
Level: 1 Vp-p, nominal
Return Loss: 46 dB @ 3.58 MHz
Input modes: User selectable as differential/single-ended and AC or DC coupled

Analog Video Outputs
Number of DA outputs: up to (8)
Impedance: 75Ω
Level: 1 Vp-p, nominal
Looping Output: (1)

Performance
Frequency response: >0.05 dB @ 3.58 MHz
Differential Gain: >0.15% @ 3.58 MHz
Differential Phase: >0.15° @ 3.58 MHz
S/N: >60 dB; 5 MHz BW

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

RM20-9910AV-B

   • Analog Video In
   • (1) Loop Output
   • (8) Analog Video Out
    (All coaxial connectors BNC)

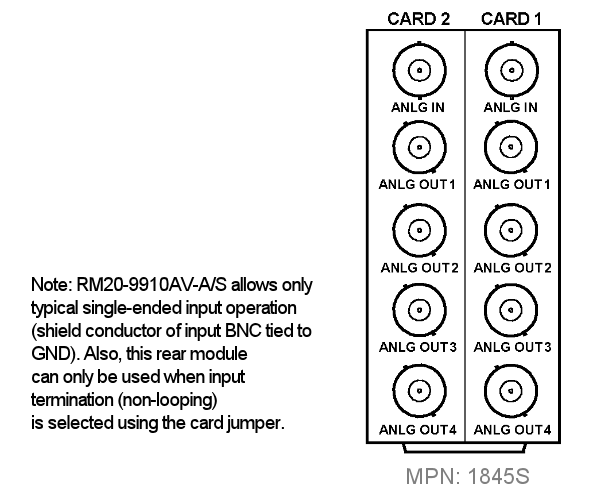

RM20-9910AV-A/S

   (Dual-card (split) rear module; connections are per card)
   • Analog Video In
   • (4) Analog Video Out
    (All coaxial connectors BNC)

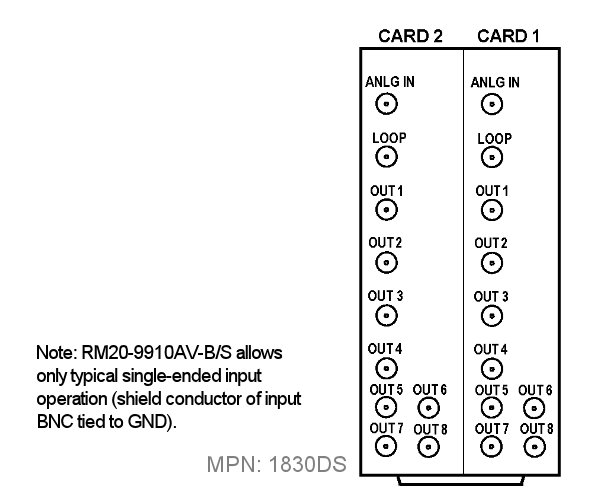

RM20-9910AV-BS-DIN
RM20-9910AV-BS-HDBNC

(Dual-card (split) rear module; connections are per card)
   • Analog Video In
   • (1) Loop Output
   • (8) Analog Video Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

Cobalt ROYAL 9910DA-AV Analog Video Distribution Amplifier

Rear Modules:

RM20-9910AV-B 20-Slot Frame Rear I/O Module (Standard Width) (1) Analog Video Input BNC, (8) Analog DA Output BNCs, (1) Input Loop Output BNC
RM20-9910AV-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input BNC, (4) Analog DA Output BNCs (connections are per card)
RM20-9910AV-B/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input, (8) Analog DA Outputs, (1) Input Loop Output (connections are per card; all connectors are DIN 1.0/2.3)
RM20-9910AV-B/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Analog Video Input, (8) Analog DA Outputs, (1) Input Loop Output (connections are per card; all connectors are HD-BNC)
