9910DA-WC Cobalt ROYAL Audio Word Clock Distribution Amplifier

Tabs

Overview

The Cobalt ROYAL 9910DA-WC Audio Word Clock Distribution Amplifier provides 1x8 distribution with one word clock input and eight 75Ω word clock outputs. Card jumpers allow setting the input as Hi-Z looping input or on-card 75Ω terminated. The card can be accessed using DashBoard™ remote control for status monitoring.

Features

Multi-mode input provides hi-Z looping or card-terminated operation
Remote monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Five year warranty

Diagrams

Specifications

Power
2 Watts

Word Clock Input
Number of inputs: (1)
Impedance: User selectable as hi-Z looping or card-terminated 75Ω
Sensitivity: 200 mV

Word Clock Outputs
Number of DA outputs: up to (8)
Impedance: 75Ω
Level: 10 Vp-p square wave (unterminated), 5 Vp-p square wave (terminated into 75Ω)
Looping Output: (1)

Performance
Sampling frequencies up to 192 kHz

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

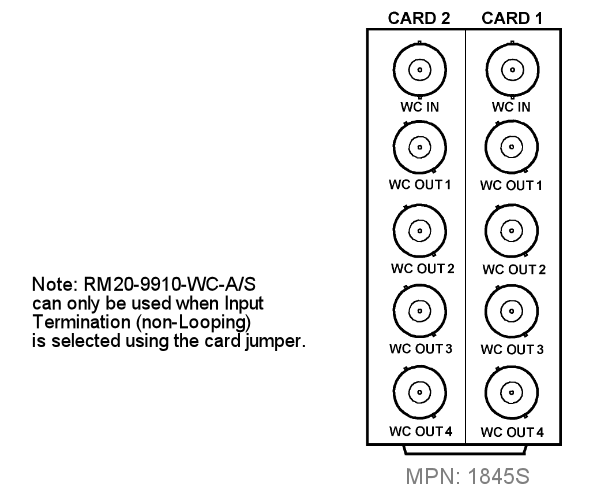

RM20-9910WC-A/S

   (Dual-card (split) rear module; connections are per card)
   • Word Clock In
   • (4) Word Clock Out
    (All coaxial connectors BNC)

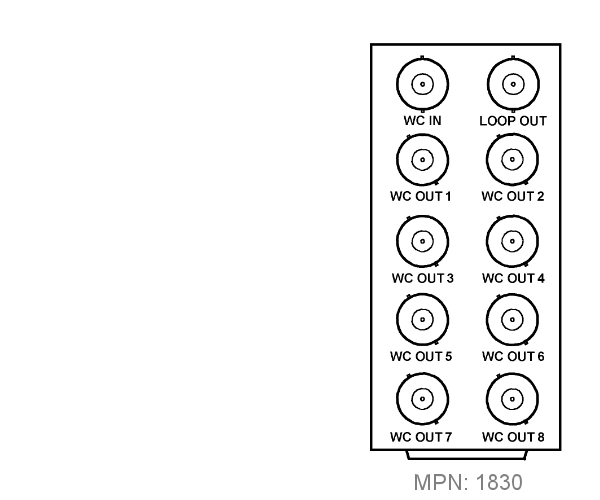

RM20-9910WC-B

   • Word Clock In
   • (1) Loop Output
   • (8) Word Clock Out
    (All coaxial connectors BNC)

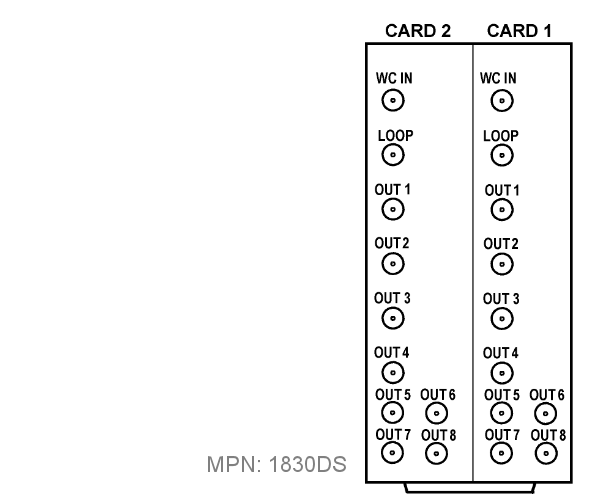

RM20-9910WC-BS-DIN
RM20-9910WC-BS-HDBNC

(Dual-card (split) rear module; connections are per card)
   • Word Clock In
   • (1) Loop Output
   • (8) Word Clock Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

Cobalt ROYAL 9910DA-WC Audio Word Clock Distribution Amplifier

Rear Modules:

RM20-9910WC-B 20-Slot Frame Rear I/O Module (Standard Width) (1) Word Clock Input BNC, (8) Word Clock DA Output BNCs, (1) Input Loop Output BNC
RM20-9910WC-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Word Clock Input BNC, (4) Word Clock DA Output BNCs (connections are per each Card 1 / Card 2 connector bank)
RM20-9910WC-B/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Word Clock Input, (8) Word Clock DA Outputs, (1) Input Loop Output (connections are per each Card 1 / Card 2 connector bank; all connectors are DIN 1.0/2.3)
RM20-9910WC-B/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) Word Clock Input, (8) Word Clock DA Outputs, (1) Input Loop Output ((connections are per each Card 1 / Card 2 connector bank; all connectors are HD-BNC)
