9913DA-AES75-RG Cobalt ROYAL 75-Ohm (Unbalanced) AES Distribution Amplifier with Remote Gain Control

Tabs

Overview

The Cobalt ROYAL 9913DA-AES75-RG 75-Ohm (Unbalanced) AES Distribution Amplifier with Remote Gain Control is a broadcast-quality AES distribution amplifier that provides up to eight copies of the input AES-3id signal. A transformer-coupled input helps prevent ground loop and other grounding-related problems.

The 9913DA-AES75-RG supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the 9913DA-AES75-RG to recover the incoming digital audio signal reliably. The 9913DA-AES75-RG also includes built-in loudness measurement, with ITU1770 LKFS loudness measurement displayed in DashBoard.

A built-in DSP allows mono-mix and L/R-only outputs (these functions can be locked out for Dolby® signal processing). The DSP attenuation function allows overall gain (stereo ganged) trim (offset) via DashBoard™ remote control.

The space-saving design and very low power consumption of the 9913DA-AES75-RG provides f

Features

Full remote control of operating mode and gain control
Multiple DSP modes – stereo/pass-thru, mono mix, L/R only outputs
Transformer-coupled input prevents ground loop issues and other ground-related problems
Convenient DSP gain trim via DIP or remote control (gain disable for Dolby/non-PCM usage)
DashBoard LKFS loudness display (10-second averaging)
Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
Hot-swappable
Five year warranty

Diagrams

Specifications

Power
< 2.2 Watts

AES Input
Number of Inputs: (1), unbalanced AES-3id (transformer-coupled)
Impedance: 75 Ω
Maximum Input Level: +27.5 dBu

Performance
Sampling Rates: 32 kHz to 96 kHz
Signal Level: 0.2 – 7 Vp-p
Resolution: 24-bit
Output Jitter: < 5 ns

AES Output
Number of Outputs: (8) max, unbalanced AES-3id (available as stereo, pass-thru, mono-mixed, or L/R only)
Impedance: 75 Ω
Return Loss: -25 dB

Rear Module Options

Rear Modules

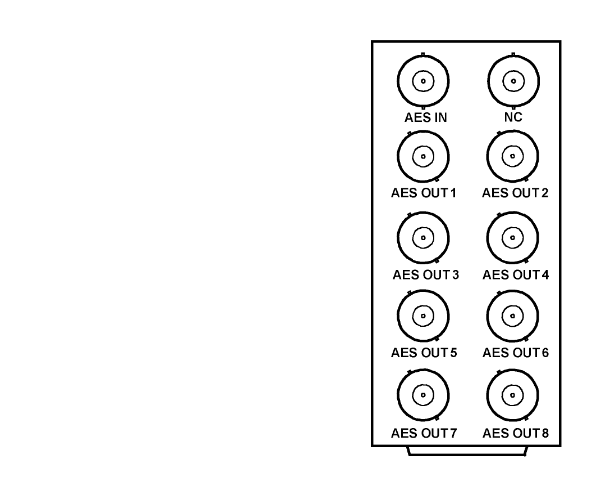

RM20-9913DA75-A

• (1) AES Audio In (AES IN)
• (8) AES Audio Out (AES OUT 1 thru AES OUT 8)

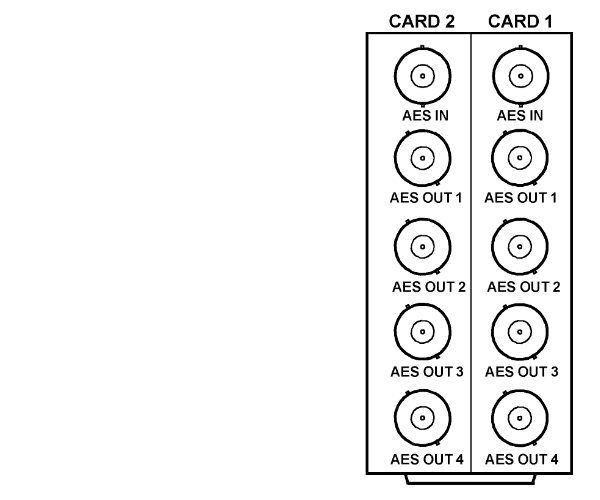

RM20-9913DA75-A/S

   (Dual-card (split) rear module; connections are per card)
   • (1) AES Audio In (AES IN)
   • (4) AES Audio Out (AES OUT 1 thru AES OUT 4)

Ordering Information

Cobalt ROYAL 9913DA-AES75-RG 75-Ohm (Unbalanced) AES Distribution Amplifier with Remote Gain Control

Rear Modules:

RM20-9913DA75-A 20-Slot Frame Rear I/O Module (Standard Width) (1) AES Audio In BNC, (8) AES Audio Out BNCs

RM20-9913DA75-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) (1) AES Audio In BNC, (4) AES Audio Out BNCs (connections are per card)

Product Downloads

Datasheet

Block Diagram

Product Manual

Request a Quote for this Product

You are currently requesting a quote for 9913DA-AES75-RG Cobalt ROYAL.

To expand your request to include multiple products or quantities, please visit this page.
