9410DA-2OE 3G/HD/SD-SDI / ASI / MADI Fiber Dual OE Transport/Distribution Amplifier with Full-Flexibility Crosspoint

Tabs

Overview

The Cobalt® 9410DA-2OE 3G/HD/SD-SDI / ASI / MADI Fiber Dual OE Transport/Distribution Amplifier with Full-Flexibility Crosspoint provides a card-based solution for high-density conversion from fiber to coax (with two independent OE channels), as well as coaxial distribution. The 9410DA-2OE is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.

SFP-based OE converters provide state-of-the-art fiber performance, power consumption, and compactness. A crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows the card to apply any of the card inputs to various coax DA outputs as well as two independent fiber input channels. Up to 10 flexibly-sourced coaxial DA outputs are available per each card.

Using a high-density low-power design along with a high-density split rear module, up to 20 cards can be installed in a frame, providing 40 channels of OE fiber conversion as well as up to 200 coaxial DA outputs. Excellent receive performance allows receive EQ for up to 110m 3G, 180m HD, and 360m SD cable length (1694A). Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

Features

Dual independent fiber-to-coax input channels. Fiber inputs can serve as source for any card coaxial outputs.
Full support of 3G/HD/SD-SDI and ASI/DVB
Fully-flexible coaxial crosspoint/DA provides up to 10 copies per card. Crosspoint can select from any card input or output.
Excellent coax receive performance – EQ allows 1694A cable lengths up to 110m (3G) / 180m (HD) / 360m (SD)
Input user selectable as fiber or coaxial
SFP-based OE converters provide state-of-the-art fiber performance, power consumption, and compactness
Automatic reclocking for all SDI data rates (auto-bypass for non-SDI data rates)
Optical Rx receive power status fields allow optical receive assessment
All outputs are non-inverting – ASI can be outputted on any output
DashBoard™ status and full remote control
Five year warranty

Diagrams

Specifications

Note: Inputs/outputs are a function of rear I/O module used.

Power
< 10 Watts

3G/HD/SD-SDI / ASI / MADI Inputs/Outputs (Coaxial Primary)
(2) 75Ω BNC input/outputs max (A-I/O and B-I/O)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M

Coaxial Receive Performance (Cable Length; Belden 1694A)
SDI Receive Cable Length (1694A): 110m/180m/360m (3G/HD/SD)

Fiber Receive Input
(2) Fiber input; LC connectors
Receive Sensitivity: -23 dBm; 1260 to 1620 nm (with internal power meter status display)

3G/HD/SD-SDI / ASI / MADI Outputs (DA Outputs)
Four, 1x2 75Ω BNC outputs (8 total, max). Each DA pair can receive any primary or opposite-channel DA signal.
Signal Level: 800 mV nominal
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI

Note: Specifications subject to change.

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

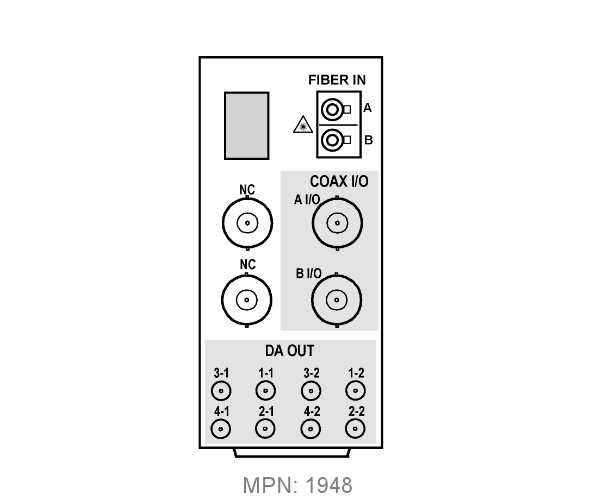

RM20-9410DA-2OE-D-DIN
RM20-9410DA-2OE-D-HDBNC

   • (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
   • (2) Fiber In (Fiber-A In and Fiber-B In; LC connectors)
• (8) DA Out coaxial (DIN1.0/2.3 or HD-BNC)
' Note: Mates to card in odd slot.
  'Note: This rear module supersedes -B
model (which is discontinued).

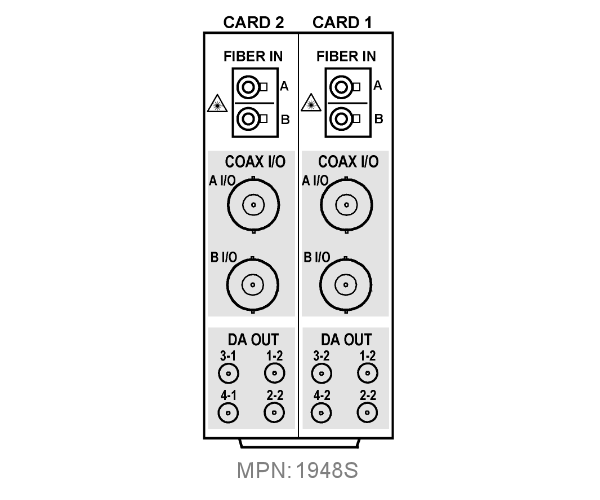

RM20-9410DA-2OE-D/S-DIN
RM20-9410DA-2OE-D/S-HDBNC

   (Dual-card (split) rear module; connections are per card)
   • (2) SDI/ASI/MADI BNC coaxial In/Out (Coax-A I/O and Coax-B I/O)
   • (2) Fiber In (Fiber-A In and Fiber-B In; LC connectors)
• (4) DA Out coaxial (DIN1.0/2.3 or HD-BNC)
  'Note: This rear module supersedes -B/S
model (which is discontinued).

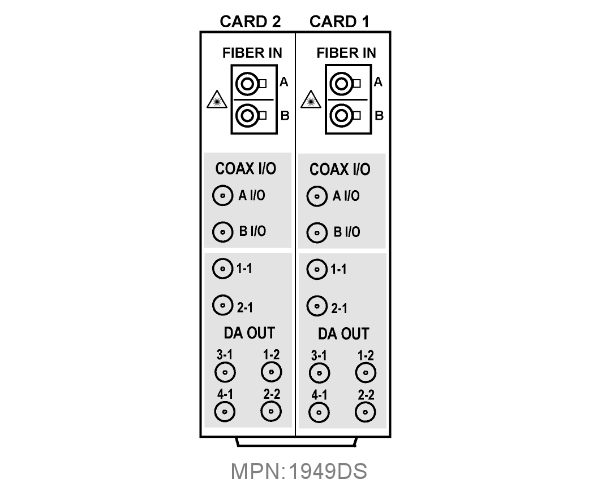

RM20-9410DA-2OE-E/S-DIN
RM20-9410DA-2OE-E/S-HDBNC

   (Dual-card (split) rear module; connections are per card)
   • (2) SDI/ASI/MADI coaxial In/Out (Coax-A I/O and Coax-B I/O)
   • (2) Fiber In (Fiber-A In and Fiber-B In; LC connectors)
• (6) DA Out coaxial
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
  'Note: This rear module supersedes -C/S
model (which is discontinued).

Ordering Information

9410DA-2OE 3G/HD/SD-SDI / ASI / MADI Fiber Dual OE Transport/Distribution Amplifier with Full-Flexibility Crosspoint
RM20-9410DA-2OE-D-DIN 20-Slot Frame Rear I/O Module (Standard-Width). (2) 3G/HD/SD-SDI / ASI / MADI input/output BNCs, (2) Fiber in (LC connectors), (8) DA coaxial outputs (DA output connectors are DIN1.0/2.3) (Note: Mates to card in odd frame slot.)
RM20-9410DA-2OE-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width). (2) 3G/HD/SD-SDI / ASI / MADI input/output BNCs, (2) Fiber in (LC connectors), (8) DA coaxial outputs (DA output connectors are HD-BNC) (Note: Mates to card in odd frame slot.)
RM20-9410DA-2OE-D/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards). (2) 3G/HD/SD-SDI / ASI / MADI input/outputs, (2) Fiber in (LC connectors), (4) DA coaxial outputs (connections are per card; DA output connectors are DIN1.0/2.3)
RM20-9410DA-2OE-D/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards). (2) 3G/HD/SD-SDI / ASI / MADI input/outputs, (2) Fiber in (LC connectors), (4) DA coaxial outputs (connections are per card; DA output connectors are HD-BNC)
RM20-9410DA-2OE-E/S-DIN 20-Slot Frame Rear I/O Module (Split; supports 2 cards). (2) 3G/HD/SD-SDI / ASI / MADI input/outputs, (2) Fiber in (LC connectors), (6) DA coaxial outputs (connections are per card; coaxial connectors are DIN1.0/2.3)
RM20-9410DA-2OE-E/S-HDBNC 20-Slot Frame Rear I/O Module (Split; supports 2 cards). (2) 3G/HD/SD-SDI / ASI / MADI input/outputs, (2) Fiber in (LC connectors), (6) DA coaxial outputs (connections are per card; coaxial connectors are HD-BNC)
