(This product is discontinued. Please see 9942-RTR for its replacement.) Cobalt introduces the 9941-RTR series of SDI/ASI/MADI routers for the openGear® form factor. Using the openGear platform, the 9941-RTR series provides a high-density card-based solution that offers unprecedented flexibility and ease of use and integration.

3G/HD/SD-SDI/ASI/MADI versions are available in size from 24x24 I/O to a 12x4 asymmetrical I/O configuration. A 12x4 12G-SDI version is also available. Offering the card-based flexibility and scalability of the openGear form factor, rear I/O modules are also available to suit your I/O requirements. The rear modules are available in standard BNC or high-density DIN 1.0/2.3 and HD-BNC formats.

The 9941-RTR series offer built-in Ethernet ports, as well as multiple serial and GPIO control interfaces. Also supported are easy-to-use JSON-based ReFLEX, SNMP, and third-party router protocols that allow for easy integration with A/V control and automation systems. GUI choices include an integrated HTML-5 Web server and support for the DashBoard™ control system, allowing users to design custom control panels that provide the most intuitive remote control and monitoring interfaces possible. DashBoard user matrix provides easy to use manual routing setup.

The 9941-RTR integrates perfectly with other advanced Cobalt products such as our 9970-QS Expandable Multiviewer with Advanced On-Screen Graphics cards. This synergy provides a dynamically reconfigurable, nonblocking 20 x 4 multiviewer, with configurations of four independent 5 x 1 multiviewers all the way up to a 17-window system – or any number of intermediate cascade combinations. DashBoard user matrix provides easy to use manual routing setup. Routing setups can be saved as presets, allowing one-button engage with DashBoard or OGCP-9000 Remote Control Panel. Full user DashBoard™ remote control allows full setup, status, and local control across a standard Ethernet network.

9941-RTR Models:
• 9941-RTR-12x4-12G 12G/3G/HD/SD-SDI / ASI / MADI 12x4 Router
• 9941-RTR-12x4-3G '3G/HD/SD-SDI / ASI / MADI 12x4 Router
• 9941-RTR-12x12-3G 3G/HD/SD-SDI / ASI / MADI 12x12 Router
• 9941-RTR-24x24-3G 3G/HD/SD-SDI / ASI / MADI 24x24 Router

Features

Exclusive openGear card-based scalable router solution
High-density design in openGear form offers compact 2RU solution
Available in several matrix sizes with rear IO modules suited to your requirements
Flexible control/monitoring options including Ethernet, JSON-based ReFLEX, SNMP, and third-party router protocols
Fully embedded software/processing platform with all processing done locally on card
Supports software upgrades allowing expanded functionality without removing cards and minimal disruption
Integrates seamlessly with Cobalt 9970-QS Expandable Multiviewer
DashBoard™ remote control status monitoring and setup/control
Five year warranty

Diagrams

Rear Module Options

Rear Modules

Note: For rear modules below specified available as DIN1.0/2.3 or HD-BNC, only HD-BNC models are compatible with 12G-SDI use.

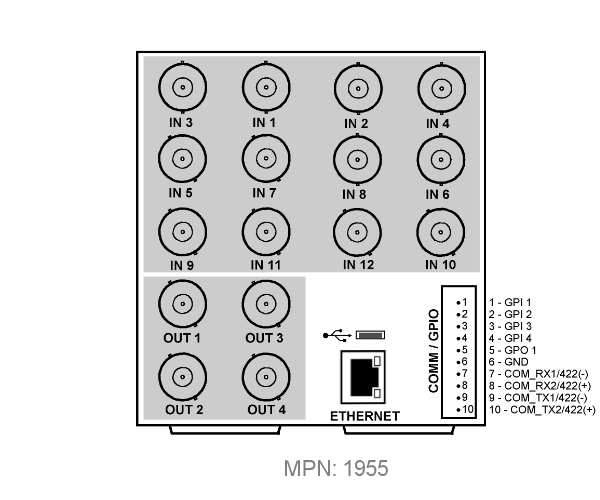

RM20-9941-12X4-A-BNC

   • (12) SDI In BNC
• (4) SDI Out BNC
   • COMM/GPI
   • (1) 100/1000 BaseT Ethernet Port
   • (1) USB Port (Type A; reserved)
      (All coaxial connectors BNC)

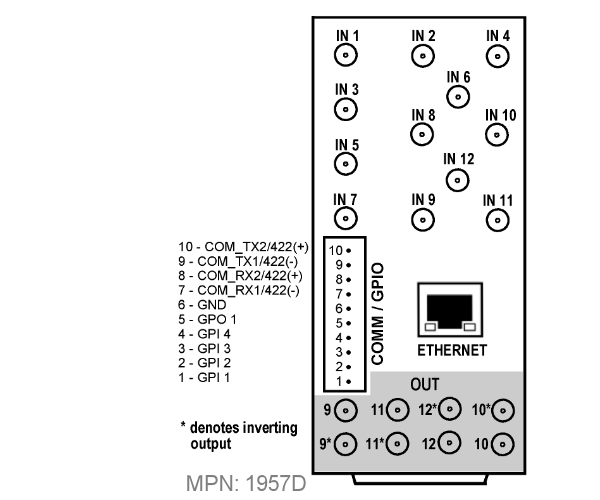

RM20-9941-12X4-A-DIN
RM20-9941-12X4-A-HDBNC

   • (12) SDI In
• (4) SDI Out
• (4) SDI Out Copy
   • COMM/GPIO
   • (1) 100/1000 BaseT Ethernet Port
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

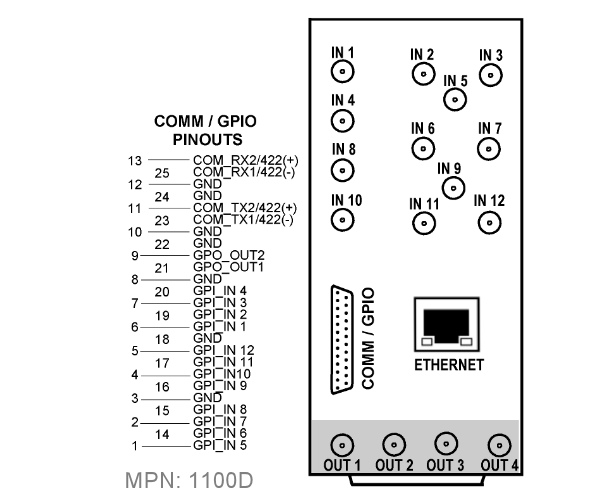

RM20-9941-12X4-B-DIN
RM20-9941-12X4-B-HDBNC

   • (12) SDI In
• (4) SDI Out
• COMM/GPIO
   • (1) 100/1000 BaseT Ethernet Port
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

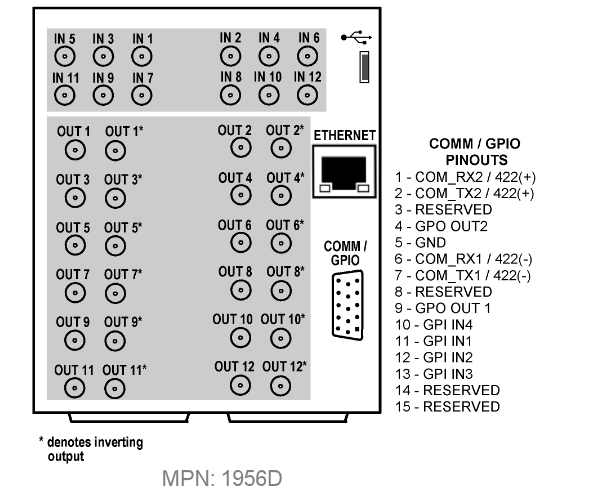

RM20-9941-12X12-A-DIN
RM20-9941-12X12-A-HDBNC

   • (12) SDI In
• (12) SDI Out
• (12) SDI Out cOPY
• COMM/GPIO
   • (1) 100/1000 BaseT Ethernet Port
   • (1) USB Port (Type A; reserved)
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

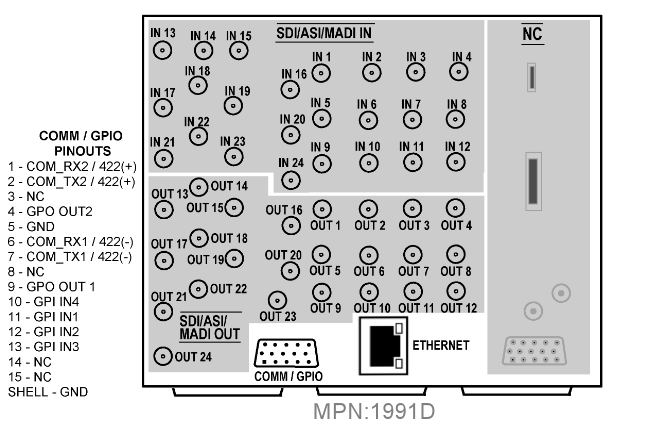

RM20-9941-24x24-A-HDBNC

   • (24) SDI In
• (24) SDI Out
   • COMM/GPIO
   • (1) 100/1000 BaseT Ethernet Port
      (All coaxial connectors HD-BNC)

Ordering Information

9941-RTR-12x4-12G 12G/3G/HD/SD-SDI / ASI / MADI 12x4 Router
9941-RTR-12x4-3G 3G/HD/SD-SDI / ASI / MADI 12x4 Router
9941-RTR-12x12-3G 3G/HD/SD-SDI / ASI / MADI 12x12 Router
9941-RTR-24x24-3G 3G/HD/SD-SDI / ASI / MADI 24x24 Router

Rear Modules:

Note: All Rear I/O Modules are preliminary designs/layouts and subject to change. For rear modules below specified available as DIN1.0/2.3 or HD-BNC, only HD-BNC models are compatible with 12G-SDI use.
RM20-9941-12X4-A-BNC 20-Slot Frame Rear I/O Module (Double Width). (12) SDI/ASI/MADI BNC coaxial inputs, (4) SDI/ASI/MADI BNC coaxial outputs, COMM/GPI connector, 100/1000 BaseT Ethernet Port, USB port (type A, reserved) (All coaxial connectors BNC.)
RM20-9941-12X4-A-DIN 20-Slot Frame Rear I/O Module (Standard Width). (12) SDI/ASI/MADI coaxial inputs, (4) SDI/ASI/MADI coaxial outputs, (4) router output copy coaxial connectors, COMM/GPIO connector, 100/1000 BaseT Ethernet Port (All coaxial connectors DIN1.0/2.3.)
RM20-9941-12X4-A-HDBNC 20-Slot Frame Rear I/O Module (Standard Width). (12) SDI/ASI/MADI coaxial inputs, (4) SDI/ASI/MADI coaxial outputs, (4) router output copy coaxial connectors, COMM/GPIO connector, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9941-12X4-B-DIN 20-Slot Frame Rear I/O Module (Standard Width). (12) SDI/ASI/MADI coaxial inputs, (4) SDI/ASI/MADI coaxial outputs, COMM/GPIO connector (12 GPI IN; Micro D25 female connector), 100/1000 BaseT Ethernet Port (All coaxial connectors DIN1.0/2.3.)
RM20-9941-12X4-B-HDBNC 20-Slot Frame Rear I/O Module (Standard Width). (12) SDI/ASI/MADI coaxial inputs, (4) SDI/ASI/MADI coaxial outputs, COMM/GPIO connector (12 GPI IN; Micro D25 female connector), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9941-12X12-A-DIN 20-Slot Frame Rear I/O Module (Double Width). (12) SDI/ASI/MADI coaxial inputs, (12) SDI/ASI/MADI coaxial outputs, (12) router output copy coaxial connectors, COMM/GPIO connector, 100/1000 BaseT Ethernet Port, USB port (type A, reserved) (All coaxial connectors DIN1.0/2.3.)
RM20-9941-12X12-A-HDBNC 20-Slot Frame Rear I/O Module (Double Width). (12) SDI/ASI/MADI coaxial inputs, (12) SDI/ASI/MADI coaxial outputs, (12) router output copy coaxial connectors, COMM/GPIO connector, 100/1000 BaseT Ethernet Port, USB port (type A, reserved) (All coaxial connectors HD-BNC.)
RM20-9941-24X24-A-HDBNC 20-Slot Frame Rear I/O Module (Double Width). (24) SDI/ASI/MADI coaxial inputs, (24) SDI/ASI/MADI coaxial outputs, COMM/GPIO connector, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
