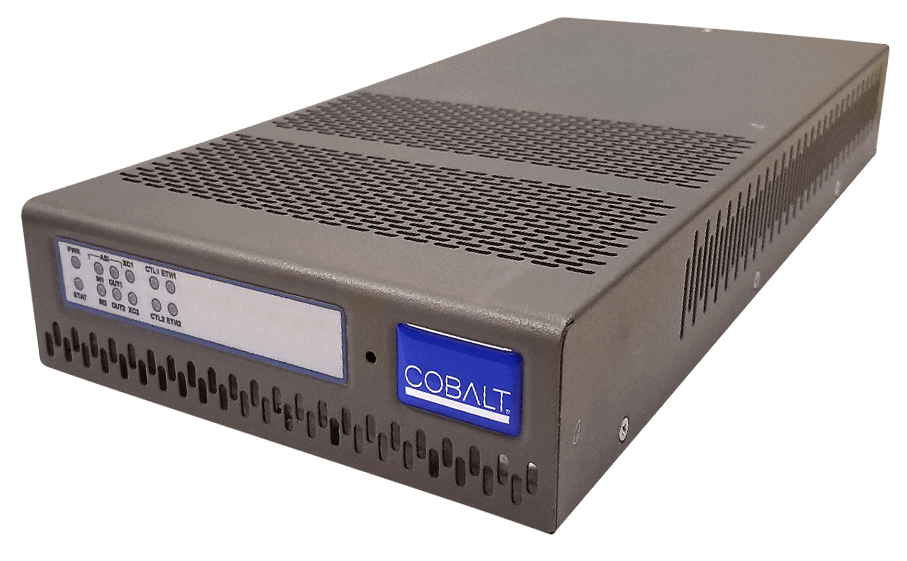

9223-SA-S Single-Channel 3G/HD/SD MPEG-4 Standalone Encoder Units

Tabs

Overview

(This product is being discontinued. Please see BBG-1123-ENC for its replacement.) The 9223-SA-S Single-Channel 3G/HD/SD MPEG-4 Standalone Encoder Units provide a compact form-factor standalone unit for distribution of MPEG-4 encoding. Utilizing the openGear® open-architecture control/monitoring platform, the 9223-SA-S can be remotely controlled and monitored with the free, easy-to-use DashBoard™ setup and control operator interface. (When connected to your network, the 9223-SA-S appears in DashBoard just like any other device.) The 9223-SA-S includes dual redundant 10/100/1000 Mb/s Ethernet ports for control.

The 9223-SA-S offers the latest advances in video compression that delivers excellent video quality at very low bit rates. Unique encoding designs allow delivery of multiple HD and SD video services simultaneously. In addition to SD/HD-SDI/3G-SDI inputs, the 9223-SA-S provides the flexibility of supporting SD analog composite video and one pair of analog stereo audio per channel (using MPEG-1 Layer II audio encoding as standard). The 9223-SA-S features ASI outputs, as well as transport Ethernet outputs, supporting full-duplex 100 Mb/s and 1 Gb/s operation. Input video auto-detect mode allows encoding to automatically configure an output that correspond to the input, with resolution and frame rate same as input, and scaling set to same as input or other applicable choices.

When using the Ethernet output, the 9223-SA-S supports the traditional UDP/RTP/SPMTE 2022 FEC protocols, as well as the HTTP Live Streaming protocol for transmitting live video over the Internet. Using HTTP Live Streaming, the 9223-SA-S can transmit broadcast-quality video to mobile phones (Apple and Android 4.0 supported), tablets, and a variety of consumer set-top boxes (such as the Amino A140 and the Roku Player).

RTMP support allows direct publishing of real-time, live content to Adobe® Media Servers or any other servers, web sites and CDNs with RTMP ingress, such as Justin.tv, UStream, LiveStream and Akamai. Publish professional-quality real-time SD/HD content to Internet viewers (including some critical features not available in PC-based software encoders) such as ancillary data support (closed-captioning, AFD) and SD-SDI/HD-SDI video inputs with embedded audio support – all in broadcast-grade video quality. SMPTE-2038 processing allows inserting generic ancillary data packets in the transport stream, with frame accuracy. Up to four DID/SDID pairs can be supported.

Full user remote monitor/control allows full device status and control access across a standard Ethernet network.

9223-SA encoders are also available in dual encoding channel configuration (some 9223-SA-S models can be upgraded to dual-channel; see Options and Ordering Information). For info on 9223-SA-D Dual-Channel 3G/HD/SD
MPEG-4 Encoder Unit models, please see 9223-SA-D.

Features

Compact self-contained form with built-in AC power supply
Input video auto-detect mode automatically configures output to correspond to input frame rate and scaling
DVB-ASI and Ethernet outputs
Full support of CEA-608 and CEA-708 closed captioning and PMT information. Closed-captioning filtering allows filtering to allow and use only SMPTE-334M and/or CEA-708 closed captioning.
Support for inserting generic ancillary data packets in the transport stream using SMPTE-2038, with frame accuracy. Up to four DID/SDID pairs can be supported.
SCTE 104 to SCTE 35 conversion
License-based options allow tailoring functionality as needed, with upgrades available if later desired
Built-in video/audio ADC and embedder allows direct use with SD composite video and audio analog sources
RTMP support for publishing to Adobe® Media Server, availing SDI content to Internet viewers
HTTP Live Streaming protocol allows viewing by Apple® and Android™ 3.0 (or higher) devices
Optional support for additional audio pairs
Optional RTP/ARQ support
Built-in Packet Test Generators allow pre-validation of transport
Multiple pre-defined control templates provide automatic setup of popular contribution-to-distribution schemes
Ethernet remote control/monitoring via DashBoard™ software
Five year warranty

Options

Option

Notes:
• Add Encoder Second Channel license options below may require unit to be returned to factory for
'hardware board populate upgrade. Inquire with Customer Support for more information and details.
• Add Encoder Second Channel options cannot be used with -A8 (8-channel audio) models.
• Options denoted as "+" are software-based options which can be fitted on new product during
'ordering or field-installed as a software upload upgrade. Options denoted as "-" are
'hardware-based option which are factory-installed upon ordering, or factory-installed by
'returning fielded product to Cobalt for option installation.
-------------------------------------------------------------------------------------------------------------------------------------------

Upgrade License; Upgrade (1) SD Channel to HD up to 1080i (+SD-HD-I-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Upgrade License; Upgrade (1) SD Channel to HD up to 1080p (+SD-HD-P-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Upgrade License; Upgrade (1) HD 1080i Channel to HD 1080p (+HD-I-HD-P-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

AAC Audio License; Add (1) AAC-LC Stereo Channel (+UP-AAC-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Additional Audio Pair License (+2A-SA); allows an additional audio pair (from an SDI embedded pair) to be encoded along with base single-pair embedding. See Ordering Information for more details.
Note: 9223-SA-A8 models come standard with maximum audio channel capacity. +2A option cannot be added to these models.
-------------------------------------------------------------------------------------------------------------------------------------------

SMPTE 2022 FEC Insertion License. Provides one FEC insertion per device Ethernet port (one +SMPTE2022FEC license max. per device) (+SMPTE2022)
-------------------------------------------------------------------------------------------------------------------------------------------

Add Encoder Second Channel H.264 SD (-SD-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Add Encoder Second Channel H.264 SD/HD (up to 1080i) (+HD-I-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Add Encoder Second Channel H.264 SD/HD (up to 1080p) (+HD-P-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Encoder 2nd channel H.264 low resolution PIP option (-PIP-SA)
-------------------------------------------------------------------------------------------------------------------------------------------

Automatic Repeat Request, Error Correction Assigned For Live Video Over IP / Internet Based on the Reliable Internet Streaming Transport (RIST) Standard.(+RIST/ARQ-ENC)
-------------------------------------------------------------------------------------------------------------------------------------------

1RU Mounting Tray (supports up to three 922x-SA units) (TRAY)

___________________________________________________________________________________________________
To see more about the Reliable Internet Streaming Transport (RIST) protocol and RIST options available for this model, see RIST Reliable Internet Streaming Transport.

Diagrams

Specifications

Electrical
Power: 100-250 VAC, 47-63 Hz, 15W

3G/HD/SD-SDI Inputs
Number of inputs: 2, each configurable as:
3G-SDI (SMPTE 424M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M) with EDH
Composite analog video (PAL/NTSC)

Audio Inputs Supported
Embedded SDI, AC-3 (optional)
(2) L/R pairs (max) of analog audio embed

Video Encoding
HD Video:
MPEG-4 AVC High profile at level 4.2 (HP@L4.2)
MPEG-4 AVC High profile at level 4.0 (HP@L4.0)
CBR & VBR
2Mbps to 30Mbps (configurable)
SD Video:
MPEG-4 AVC Main profile at level 3.0 (MP@L3.0)
CBR & VBR
1.5Mbps to 10 Mbps (configurable)

Audio Encoding
MPEG-1 layer II, 1 stereo pair base (Dolby pass-thru)
MPEG-4 AAC-LC up to 2 pairs
Lip sync adjustment

Video Resolution Supported
HD: 1920 x 1080p 60/50/30/29.97/25
1920 x 1080/1440i 25/29.97/30
720 x 1280/960/640p 59.94/50/30/29.97/25
SD: 576 x 720/528i 29.97fps
576 x 720/528i 25fps

Video Pre-Processing
Advanced adaptive spatial filtering
Closed Captions CEA 608B & CEA-708C
WSS/AFD
Teletext (WST system B)

ASI Outputs
Number of outputs: 2, 75Ω BNC DVB-ASI
213Mbit/s maximum ASI TS bit-rate per port

Ethernet
Number of control/monitor connections: 2, redundant 10/100Base-T RJ-45
Number of transport outputs: 2, 100/1000Base-T RJ-45
ports, auto-negotiate or fixed speed
IPv4,IPv6 ,UDP & RTP
SMPTE 2022 ProMPEG FEC CoP3, ‘Forward Error
Correction’ (Row and Column)

Regulatory Compliance
CE: CE marked in accordance with 93/68/EEC
(22/07/03) Directive
UL: UL approval
US FCC: Part 15
EMC: EN55022, EN55024, EN6100-3-2

Physical
Dimensions (WxHxD): 5.8 x 1.8 x 14 in (14.7 x 4.6 x 35.6 cm) (including component projection)

Ordering Information

Note: All models are available with unbalanced (RCA) analog audio inputs or balanced 3-wire analog audio inputs. Use –U suffix on part number for unbalanced-input unit (example: “9223-SA-S-U”). Use –B suffix on part number for balanced-input unit (example: “9223-SA-S-B”).
9223-SA-S Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD
9223-SA-S-HD-I Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD/HD up to 1080i
9223-SA-S-HD-P Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD/HD up to 1080p
9223-SA-A8-S Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD. Support for 4 audio pairs (8-ch).
9223-SA-A8-S-HD-I Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD/HD up to 1080i. Support for 4 audio pairs (8-ch).
9223-SA-A8-S-HD-P Single-Channel 3G/HD/SD MPEG-4 Encoder with H.264 SD/HD up to 1080p. Support for 4 audio pairs (8-ch).

Options and Accessories:

Notes:
• Unless indicated as program channel or audio channel pair license, licenses below are device-based
'licenses and require only one license per unit.
• Options denoted as "+" are software-based options which can be fitted on new product at
'ordering or field-installed as a software upload upgrade. Options denoted as "-" are hardware-based
'options which are factory-installed upon ordering, or factory-installed by returning fielded product to
'Cobalt for option installation.
• Although the –A8 versions support eight channels, encoding is not designed for phase coherency
'between PCM pairs (i.e., using six available channels to carry 5.1 PCM surround-sound).
• RTMP and HLS modes can only use stereo encoding.
• Add Encoder Second Channel options cannot be used with -A8 (8-channel audio) models.
+SD-HD-I-SA Upgrade License; Upgrade (1) SD Channel to HD up to 1080i
+SD-HD-P-SA Upgrade License; Upgrade (1) SD Channel to HD up to 1080p
+HD-I-HD-P-SA Upgrade License; Upgrade (1) HD 1080i Channel to HD 1080p
+UP-AAC-SA AAC Audio License; Add (1) AAC-LC Stereo Channel
+SD-SA Add Encoder Second Channel H.264 SD
+HD-I-SA Add Encoder Second Channel H.264 SD/HD (up to 1080i)
+HD-P-SA Add Encoder Second Channel H.264 SD/HD (up to 1080p)
-PIP Encoder 2nd channel H.264 low resolution PIP option
+RIST/ARQ-ENC Automatic Repeat Request License, Error Correction Assigned For Live Video Over IP / Internet Based on the Reliable Internet Streaming Transport (RIST) Standard
+2A-SA Additional Audio Pair License
+SMPTE2022 SMPTE 2022 FEC License
TRAY 1RU Rack-Mount Tray (supports up to 3 units)

— Audio Capacity (Base and with Audio Add Option Licenses +2A or +UP-AAC) —

Base – (1) standard MP1L2 encoding license on 1 PID
Add PIDs:
– Can have 2 audio PIDs total (1 additional +2A license or 1 additional +UP-AAC license).
– Can expand up to 4 audio PIDs with +PIP license (3 additional +2A and/or 2 additional +UP-AAC licenses)
