9902-UDX-DSP-CI 3G/HD/SD-SDI/CVBS Channel Integrator — UDX/Frame Sync with Video Optimization, Advanced Audio DSP Features, and SFP I/O Options

Tabs

Overview

The Cobalt® 9902-UDX-DSP-CI Channel Integrator provides a comprehensive signal conversion and processing feature set designed to condition ingest Analog and Digital Audio and Video signals to meet comprehensive output requirements.

The 9902-UDX-DSP-CI Channel Integrator provides a powerful, high-density 3G/HD/SD-SDI/CVBS Up/Down/Cross Converter-Frame Sync and Embedder/De-Embedder platform with support for the following optional features:

• Linear Frame Rate Standards Conversion Option
• RGB Color Correction Option
• Trouble Slate Insertion Option
• Logo Generator Option
• External SFP Cage Hardware Option
• HDMI, Fiber, IP ST2110, ST2022-6 SFP Options
• Emergency Alert Crawl Generator Option
• Text-To-Speech Generator Option
• Real-Time Loudness Leveling (RTLL) Loudness Processing Options
• Dolby® Encode/Decode Options
• Stereo to Surround Sound Upmixing Option

Along with the extensive list of features and options, the 9902-UDX-DSP-CI offers comprehensive high-quality standards conversion utilizing Cobalt’s linear frame rate conversion to convert between virtually any SD/HD/3G format – 25/50, 29.97/30/59.94/60, and 23.98/24 (both film and PsF) from 525/625i to 1080p and anything in-between – with conversion to and from NTSC and PAL available for all input and output formats (see Diagrams for full conversion matrix). This broad flexibility makes the 9902-UDX-DSP-CI perfect for international signal aggregators and distributors in the Cable, DBS, and OTT markets.

I/O Capabilities
In addition to accepting and providing 3G/HD/SD-SDI I/O and CVBS I/O, the 9902-UDX-DSP-CI accommodates a wide array of baseband I/O, including:
• Externally-accessible SFP cage option allows flexible added I/O, including
fiber, HDMI, and IP.
• Accepts up to 16 channels (8 pairs) of discrete unbalanced AES (AES-3id)
embed/de-embed. Per-pair SRC can be applied to consumer
(non-professional) digital audio sources to synchronize to 48 kHz video.
• Full audio crosspoint between embedded channels, balanced analog
I/O and AES I/O.

As content delivery platforms evolve, conversion and processing systems need to be as comprehensive and cost effective as possible. Content providers/aggregators are tasked with receiving various signal types and standards and formatting them to the exact video, audio and metadata configuration needed on a per channel basis, and need an easy to deploy means of integrating and optimizing the components that comprise a modern broadcast.

Designed to address these evolving needs in the densest foot print possible, the 9902-UDX-DSP-CI Channel Integrator provides the signal conversion and processing tool set needed to conform analog and digital audio and video signals and their associated metadata to meet sophisticated channel delivery requirements. Flexibility and advanced video processing including broadcast quality Up/Down/Cross conversion with Noise Reduction and Detail Enhancement makes the 9902-UDX-DSP-CI perfect for rentals and international signal aggregators and distributors in all markets.

The Channel Integrator is offered with a wide range of rear I/O options including high-density DIN and HDBNC and can be configured with a SFP I/O port option which adds support for either HDMI, fiber optic, or IP (SMPTE 2110 or SMPTE 2022-6).

Features

Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
High-density openGear comprehensive integration solution
Optionally accepts SMPTE resolution and frame rate signals via HDMI allowing for computer and consumer A/V sources to be ingested
Frame Sync synchronizes to external reference and provides audio/video offsets as desired
Dolby encoding/decoding, loudness processing, and upmixing DSP audio options available
Auto Adjust feature helps assure lip sync by assessing and alerting where DSP processing requires matching video delay
Up/Down/Cross Conversion with user and AFD, VI, and WSS ARC specifically tailored for broadcast video
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty

Options

Option

Note:
• Options denoted as "+" are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade.
• Options or ordering line items denoted as “-“ are hardware-based options/items. These options are
'available as factory-installed only on new product, or product returned to Cobalt for
'factory installation.
-------------------------------------------------------------------------------------------------------------------------------------------

Option -CI-SFP – Provides externally-accessible SFP cage allowing flexibly added I/O, including fiber I/O, HDMI, and 2022-6/2011 IP. (See Ordering Information for SFP types available. This option must be ordered to support any SFP options described in Ordering Information.)

Color Correction Option (+COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip.

Linear Frame Rate Conversion (+FRC) – Provides comprehensive high-quality standards conversion utilizing Cobalt’s linear frame rate conversion to convert between virtually any SD/HD/3G format.

Quality Check Option (+QC) – Provides failover, alert, or user presets action on criteria such as black/frozen frame, audio silence, and CC absence.

Key/Fill Keyer Option (+KEYER) – Provides keying using independent SDI inputs for key and fill signals. A separate preview SDI output is provided for observing key results before applying to program video output. Alpha Threshold mode allows full-color key/fill using low-cost PC-based graphics host where the same signal provides a shared key/fill input.

Logo Insertion Option (+LOGO) – Allows uploading of user logo graphic file to card, with automated insertion controlled by GPI or other events.

Trouble Slate Import Option (+T-SLATE) – Allows uploading of up to three different user trouble slate graphic file to card, with automated insertion controlled by GPI or other events.

Text-To-Speech Option (+TTS) – Provides Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. High-quality Text-To-Speech from Acapela Group.

Emergency Alert System Text Crawl Generation Option (+EAS) – Provides a single-card solution for keying Emergency Alert System (EAS) text crawls in the active video and inserting station identification logos. Compatible with Sage™, Dasdec™, and other EAS crawl generators, with automated control insertion via presence of crawl data or GPI.

Loudness Processing Options (+DSP-RTLL) – Consists of numerous Dolby Real-Time Loudness Leveling loudness processing options. (See Ordering Information for more info.)

Dolby® Options (+DSP-ENC, -DEC) – Consists of numerous Dolby encode and decode options. (See Ordering Information for more info.)

Upmixing Option (+DSP-UPMIX-LA) – Provides high-quality Linear Acoustic® UPMAX™ 2.0-to-5.1 upmixing.

Linear Acoustic® AEROMAX™ Loudness Processor Options (+DSP-LP) – Available as surround 5.1 and stereo 2.0. (See Ordering Information for full details.)

Audyne ITU Loudness Leveler Options (+DSP-ITU) – Available as surround 5.1 and stereo 2.0. (See Ordering Information for full details.)

Clean and Quiet Switching Option (+CQS) – Provides automatic audio muting during switching transitions from one SDI input source to another to provide silence between input switches.

Extended Frame Sync Delay Option (+DLY) – Increases frame buffer to provide adjustable audio/video delay buffer capacity to over 9 seconds for SD video, 1.5 seconds for HD video, or 0.8 seconds for 3G video.

SCTE 104 Insertion Option (+SCTE104) – Provides generation/insertion of SCTE 104 data into baseband SDI. Message send can be triggered from automation GPI or other modes. Full control of splice start, end, and cancel as well as pre-roll offsets.

SCTE104 Frame-Accurate SCTE Trigger Insertion Option (+SCTE104-FAST) – Uses Time Stamp data derived from broadcast automation and timecode to provide deterministic, frame-accurate Digital Program Insertion (DPI) message embedding into SDI. The linear channel is output with precise metadata marking the beginning and ending of each program and commercial segment, optimizing it for automatic dissemination to CDN and VOD systems.

Audio LTC I/O Option (+LTC)

Diagrams

Block Diagram ^

Standards Conversion Table ^

Externally-Accessible SFP ^

Specifications

Power
24 Watts (including +DSP options)
Add 3 Watts for option -CI-SFP

SDI Input/Outputs
(4) 75Ω inputs (max)
(5) 75Ω outputs (max) (1 with relay bypass protect)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter 3G/HD/SD: Minimum Latency (scaler and frame sync disabled): SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us

CVBS Video Input/Outputs
(1) 75Ω BNC input
(1) 75Ω BNC output. CVBS can be upconverted to any supported SDI format; all inputs can be downconverted to CVBS.
CVBS ADC resolution: 10-bit
CVBS ADC sampling: 4x oversampling
CVBS DAC resolution: 10-bit
CVBS DAC sampling: 16x oversampling
Y/C separation: 4-line Adaptive Comb Filter
Freq. Response: ± 0.25 dB to 5.5 MHz
SNR: >50 dB to 5.5 MHz (unweighted)
Differential Phase: <1 degree
Differential Gain: <1%
Nonlinearity <1%

Discrete Audio Input/Outputs
AES-3id 75Ω inputs (8 pair (16-Ch) max)
AES-3id 75Ω outputs (8 pair (16-Ch) max)
Input AES SRC Range: 32 to 96 kHz
Balanced analog audio inputs (4-Ch max)
Balanced analog audio outputs (4-Ch max)

Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec

ARC
ARC manually configurable (custom) or automatic triggering in full compliance/conformity with AFD (SMPTE 2016), VI (RP186), and WSS triggering.

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

Audio Conversion Format
48 kHz sampling, 24-bit. Auto-SRC bypass for Dolby inputs. Analog audio I/O conforms to
+24 dBu 0 dBFS.

Note: Fiber specifications are typical, and only applicable for card fitted with optional Tx or Rx (as applicable) fiber SFP module. Specifications subject to change.

Fiber Transmit Output (typ. with fiber Tx SFP)
LC connector
Fiber Wavelength, Tx: 1310 nm
Tx Power: -5.0 dBm (min)

Fiber Receive Input (typ. with fiber Rx SFP)
LC connector
Receive Sensitivity: -23 dBm; 1260 to 1620 nm (with internal power meter status display)

HDMI Input (typ. with HDMI-to-SDI HDMI SFP)
(1) HDMI 1.4 Input; type D-micro connector; DVI-D compliant input (limited to SMPTE HD formats).

HDMI Output (typ. with SDI-to-HDMI SFP)
(1) HDMI 1.4 Output; type D-micro connector; DVI-D compliant input (limited to SMPTE HD formats).

Analog Audio Specifications
4-ch inputs; 4-ch outputs
Input Impedance: >10kΩ
Reference Level: -20 dBFS
Nominal Level: +4 dBu
Input Clip Level: +24 dBu (0 dBFS)
Freq. Response: ±0.2 dB (20 Hz to 20 kHz)
SNR: 115 dB (A weighted)
THD+N: -96 dB (20 Hz to 10 kHz)
Crosstalk: -106 dB (20 Hz to 20 kHz)
Output Impedance: <50Ω
Max. Output Level: +24 dBu (0 dBFS)
(I/O conforms to 0 dBFS = +24 dBu)

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”.

Rear Module Options

Rear Modules

Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

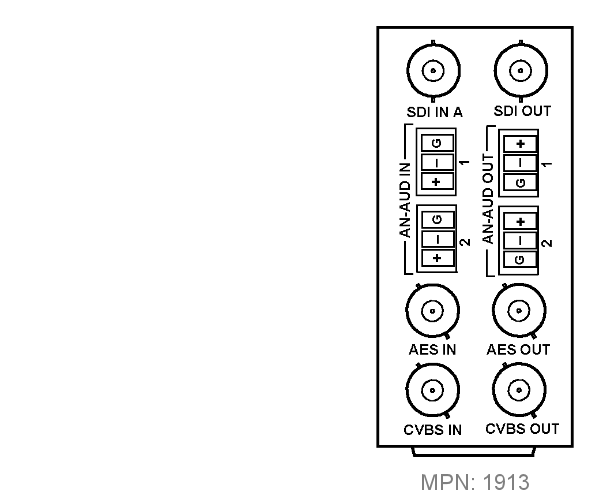

RM20-9902--UDX-DSP-CI-B

   • (1) SDI In
   • (1) CVBS In
   • (2) Analog Audio Balanced In
   • (2) Analog Audio Balanced Out
   • (1) AES In
   • (1) AES Out
   • (1) SDI Out (selectable as processed or input RCK)
   • (1) CVBS Analog Video Out

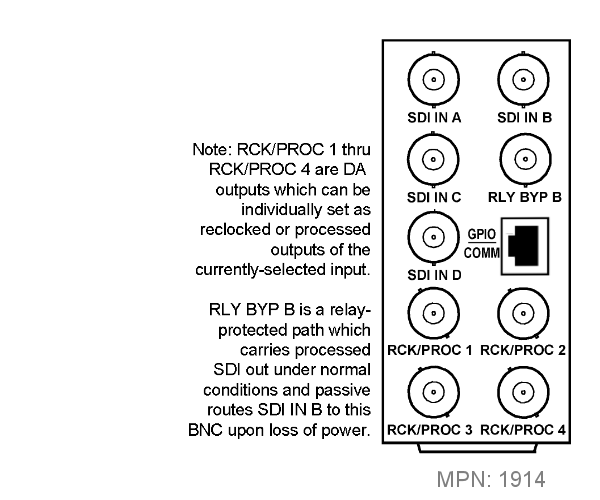

RM20-9902-UDX-DSP-CI-C

   • (4) SDI In (selectable manually or as failover)
   • GPIO/COMM port (RJ-45)
   • (4) SDI Out (each selectable as processed out or
       input RCK)
   • (1) Relay protected SDI Out (proc or SDI IN B on loss of
       power)
      (All coaxial connectors BNC)

RM20-9902-UDX-DSP-CI-D-DIN
RM20-9902-UDX-DSP-CI-D-HDBNC

   • (2) SDI In (selectable manually or as failover)
   • (1) CVBS In
   • (8) AES In
   • (2) Balanced Analog Audio In
   • (2) SDI Out (each selectable as processed out or
input RCK)
   • (1) CVBS Out
   • (8) AES Out
   • (2) Balanced Analog Audio Out
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

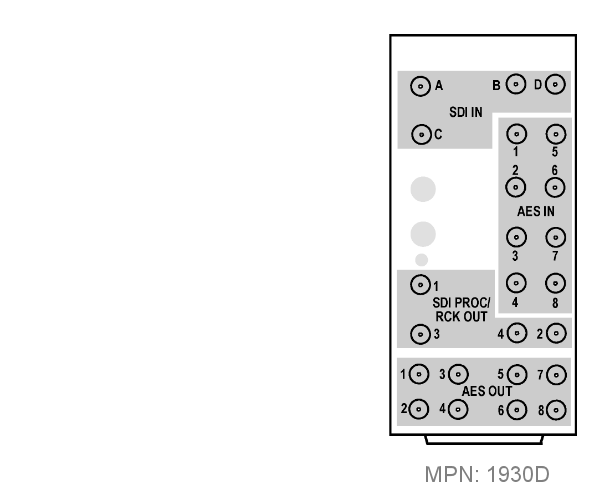

RM20-9902-UDX-DSP-CI-E-DIN
RM20-9902-UDX-DSP-CI-E-HDBNC

   • (4) SDI In
   • (8) AES In
   • (4) SDI Out (each selectable as processed out or
input RCK)
   • (8) AES Out
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

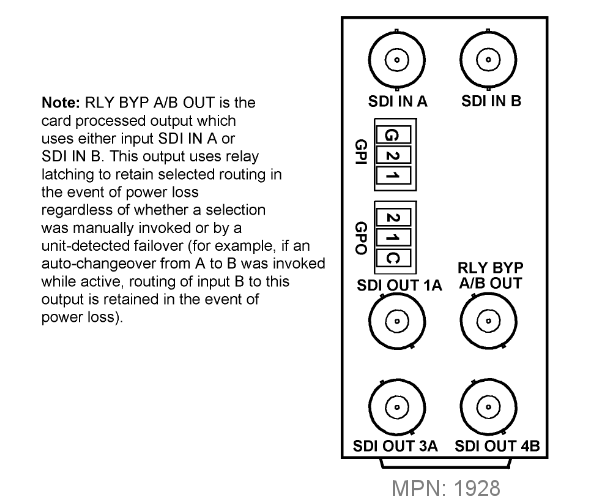

RM20-9902-UDX-DSP-CI-F
   • (2) SDI In BNCs
   • (1) SDI Out BNC with Relay Failover Protect
   • (3) SDI Out BNCs (selectable as Proc out or RCK)
   • (2) GPI
   • (2) GPO

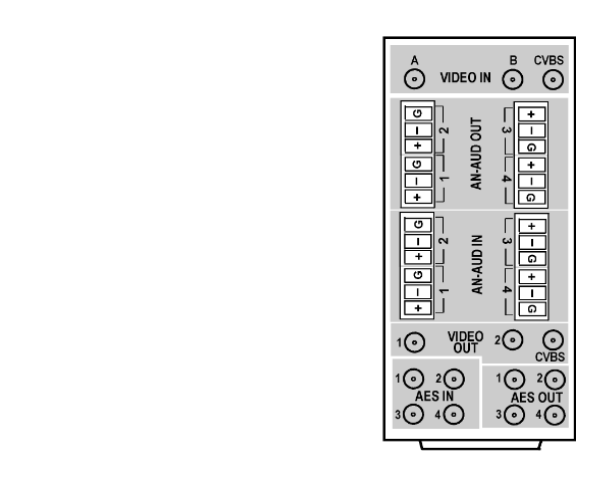

RM20-9902-UDX-DSP-CI-G-DIN
RM20-9902-UDX-DSP-CI-G-HDBNC

   • (2) SDI In (selectable manually or as failover)
   • (1) CVBS In
   • (4) AES In
   • (4) Balanced Analog Audio In
   • (2) SDI Out (each selectable as processed out or
input RCK)
   • (1) CVBS Out
   • (4) AES Out
   • (4) Balanced Analog Audio Out
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

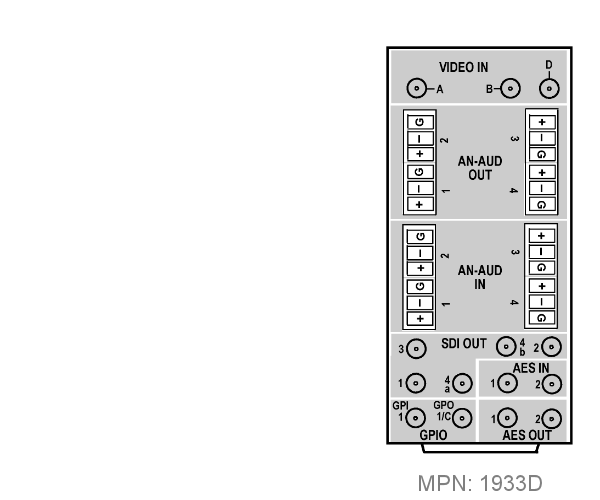

RM20-9902-UDX-DSP-CI-H-DIN
RM20-9902-UDX-DSP-CI-H-HDBNC

   • (3) SDI In (selectable manually or as failover)
• (2) AES In
   • (4) Balanced Analog Audio In
   • (5) SDI Out (each selectable as processed out or input
       RCK; 2x copy of SDI output 4)
   • (2) AES Out
   • (4) Balanced Analog Audio Out
   • (1) GPI/6 Hz (coaxial)
   • (1) GPO w/ isolated return; coaxial)
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

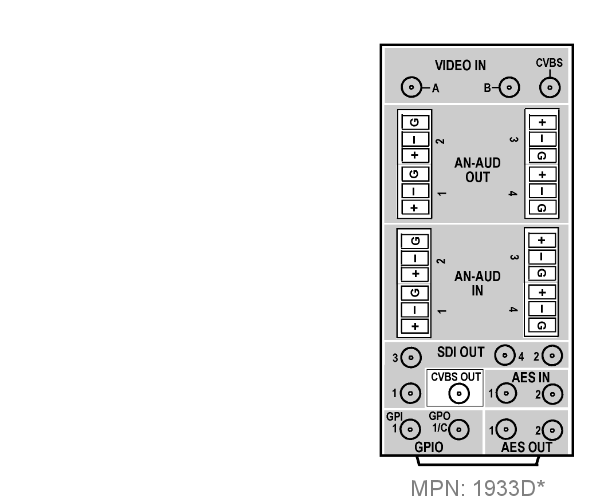

RM20-9902-UDX-DSP-CI-J-DIN
RM20-9902-UDX-DSP-CI-J-HDBNC

   • (2) SDI In (selectable manually or as failover)
• (1) CVBS In
   • (2) AES In
   • (4) Balanced Analog Audio In
   • (4) SDI Out (each selectable as processed out or
input RCK)
   • (1) CVBS Out
   • (2) AES Out
   • (4) Balanced Analog Audio Out
   • (1) GPI/6 Hz (coaxial)
   • (1) GPO w/ isolated return; coaxial)
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

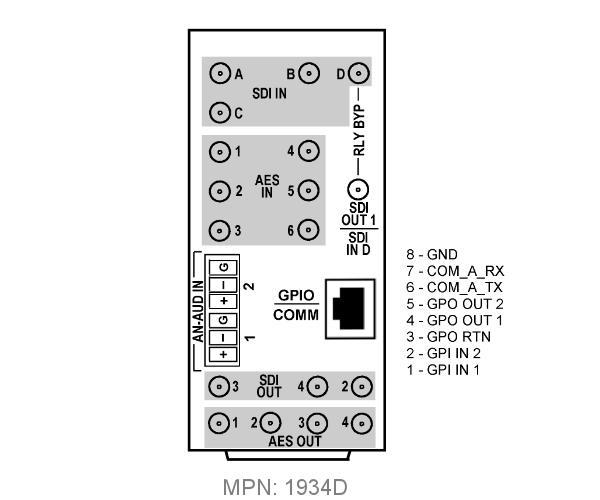

RM20-9902-UDX-DSP-CI-K-DIN
RM20-9902-UDX-DSP-CI-K-HDBNC

   • (4) SDI In (selectable manually or as failover; )
   • (1) Relay protected SDI Out (proc or SDI IN D on loss of
       power)
   • (6) AES In
   • (2) Balanced Analog Audio In
   • (4) SDI Out (each selectable as processed out or
input RCK)
   • (4) AES Out
   • GPIO/COMM port (RJ-45)
      (All coaxial connectors DIN1.0/2.3 or HD-BNC)

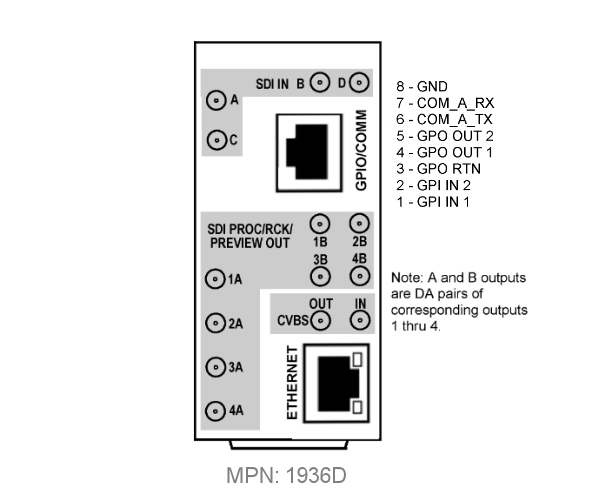

RM20-9902-UDX-DSP-CI-L-DIN
RM20-9902-UDX-DSP-CI-L-HDBNC

   • (4) SDI In
   • CVBS In
   • (8) SDI Out (1x2 DA output of each crosspoint output)
   • CVBS Out
   • COMM/GPIO port (RJ-45)
   • 100/1000 BaseT Ethernet Control Port
    (All coaxial connectors DIN1.0/2.3 or HD-BNC)

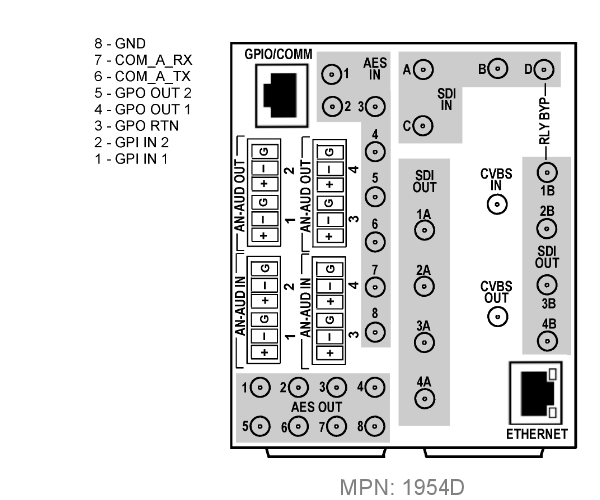

RM20-9902-UDX-DSP-CI-N-DIN
RM20-9902-UDX-DSP-CI-N-HDBNC

   • (4) SDI In
   • (1) CVBS In
   • (4) Balanced Analog Audio In
   • (8) AES In
   • (8) SDI Out (1 with relay bypass protect)
• (1) CVBS Out
• (4) Balanced Analog Audio Out
• (8) AES Out
   • (1) GPIO/COMM (Combined RJ-45 connector)
   • 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

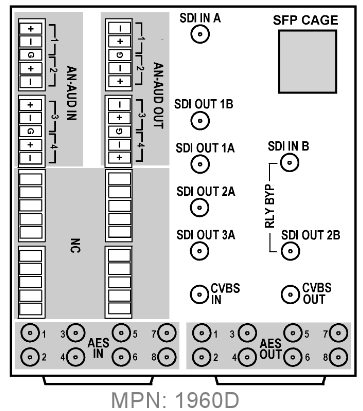

RM20-9902-UDX-DSP-CI-P-DIN
RM20-9902-UDX-DSP-CI-P-HDBNC

   • (2) SDI In
   • (1) CVBS In
   • (4) Balanced Analog Audio In
   • (8) AES In
• (1) SFP cage receptacle (valid with
option -CI-SFP)
   • (5) SDI Out (1 with relay bypass protect)
   • (4) Balanced Analog Audio Out
   • (8) AES Out
   • (1) CVBS Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9902-UDX-DSP-CI 3G/HD/SD-SDI/CVBS Channel Integrator – UDX/Frame Sync and Embedder/De-Embedder with Video Optimization, Advanced Audio DSP Features, and SFP I/O Options

Options:

Note: Options denoted as "+" are software-based options which are available on new product when ordered or can be customer field-installed as a software upload upgrade. Options or ordering line items denoted as “-“ are hardware orderable items (such as SFP and expansion modules). These options are available as factory-installed only on new product, or product returned to Cobalt for factory installation.
+COLOR Color Correction Option
+QC Quality Check Option
+FRC Linear Frame Rate Conversion Option
+LTC Audio LTC I/O Option
+DLY Extended Frame Sync Delay Option
+SCTE104 SCTE 104 Insertion Option
+SCTE104-FAST Frame-Accurate SCTE 104 Trigger Insertion Option
+T-SLATE User Trouble Slate Graphic Import Option
+LOGO Logo Insertion Option
+KEYER Key/Fill Keyer Option
+TTS Text-To-Speech Option (Acapela Text-To-Speech from Acapela Group™. Installation requires option upload and installation of speech library SD memory card onto host card. Pre-loaded SD card and instructions provided.)
+2L-SPAN Add Spanish-language upgrade (add-on to option +TTS; option +TTS required)
+EAS Emergency Alert System Text Crawl Generation Option
+CQS Clean and Quiet Switching Option
+DSP-RTLL-5.1 Dolby® Real-Time Loudness Leveling 5.1-Channel Surround Sound Loudness Processor
+DSP-RTLL-2.0 Dolby® Real-Time Loudness Leveling 2.0-Channel Stereo Loudness Processor
+DSP-ENCD-5.1 Dolby® Digital / Digital Plus 5.1 Encoder
+DSP-ENCD-2.0 Dolby® Digital / Digital Plus 2.0 Encoder
+DSP-DEC Dolby® E / Dolby® Digital / Dolby® Digital Plus Decoder
+DSP-UPMIX-LA Linear Acoustic UPMAX™ 2.0-to-5.1 Upmixer
+DSP-LP-5.1 Linear Acoustic® AEROMAX™ 5.1-Channel Loudness Processor Option
+DSP-LP-2.0 Linear Acoustic® AEROMAX™ 2-Channel Loudness Processor Option
+DSP-ITU-5.1 Audyne ITU 5.1-Channel Loudness Leveler Option (1)
+DSP-ITU-2.0 Audyne ITU 2.0-Channel Loudness Leveler Option (1)
(1) Manufactured under license from Audyne Inc.
-CI-SFP Adds daughter card supporting externally-accessible SFP cage; orderable as new option or field upgrade. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. Option can only be used with rear module RM20-9902-UDX-DSP-CI-P-DIN or RM20-9902-UDX-DSP-CI-P-HDBNC.
-SFP-EO 3G/HD/SD-SDI/ASI/MADI Video SFP Optical, Single Transmitter, Medium Haul, 1310nm
-SFP-OE 3G/HD/SD-SDI/ASI/MADI Video SFP Optical, Single Receiver, Medium Haul
-SFP-EOOE 3G/HD/SD-SDI/ASI/MADI Video SFP Optical, Transceiver, Medium Haul, 1310nm
-SFP-EO-CWDM-WX 3G/HD/SD-SDI/ASI/MADI Video SFP Optical, Single Transmitter, Long Haul. Specify CWDM Wavelength in place of -WX (see table below)
-SFP-EOOE-CWDM-WX 3G/HD/SD-SDI/ASI/MADI Video SFP Optical, Transceiver, Long Haul. Specify CWDM Wavelength in place of -WX (see table below)
In "WX" places in part number, substitute code for wavelengths in each place as listed below:
-27: 1270nm -29: 1290nm -31: 1310nm
-33: 1330nm -35: 1350nm -37: 1370nm
-39: 1390nm -41: 1410nm -43: 1430nm
-45: 1450nm -47: 1470nm -49: 1490nm
-51: 1510nm -53: 1530nm -55: 1550nm
-57: 1570nm -59: 1590nm -61: 1610nm
(Example: SFP-EO-CWDM-27 has 1270 nm FIBER OUT CWDM wavelength)

-SFP-H-TO-S HDMI/DVI To SDI Video SFP Converter, Single Receiver, Type D with retention clip
(Note: The H-to-S SFP module used here supports 8-bit input only.)
-SFP-S-TO-H SDI To HDMI/DVI Video SFP Converter, Single Transmitter, Type D with retention clip
-SFP-IP-SWD Software-Defined EmSFP 2110 or 2022-6 Encap/De-Encap 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD:
+ADD-SFP-2SDI-TO-IP-2022-6 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6
+ADD-SFP-2SDI-TO-IP-2110 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110
+ADD-SFP-IP-TO-2SDI-2022-6 SFP Software License; Dual-Channel De-Encapsulator IP-2022-6-to-2SDI
+ADD-SFP-IP-TO-2SDI-2110 SFP Software License; Dual-Channel De-Encapsulator IP-2110-to-2SDI
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI
+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
+ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110
- Rear Modules:
- RM20-9902-UDX-DSP-CI-B 20-Slot Frame Rear I/O Module (Standard Width) (1) 3G/HD/SD-SDI Input BNC, (1) CVBS Input BNC, (2) Balanced Analog Audio Inputs, (1) 3G/HD/SD-SDI Output BNCs, (1) CVBS Processed Out BNC, (2) Balanced Analog Audio Outputs
- RM20-9902-UDX-DSP-CI-C 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Input BNCs, (4) 3G/HD/SD-SDI Output BNCs, (1) 3G/HD/SDI Output BNC (with relay bypass failover), (1) GPIO/COMM RJ-45 connector
- RM20-9902-UDX-DSP-CI-D-DIN 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (8) AES Inputs, (2) Balanced Analog Audio Inputs, (2) 3G/HD/SD-SDI Outputs, (1) CVBS Processed Output, (8) AES Outputs, (2) Balanced Analog Audio Outputs (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-D-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (8) AES Inputs, (2) Balanced Analog Audio Inputs, (2) 3G/HD/SD-SDI Outputs, (1) CVBS Processed Output, (8) AES Outputs, (2) Balanced Analog Audio Outputs (All coaxial connectors HD-BNC.)
- RM20-9902-UDX-DSP-CI-E-DIN 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Inputs, (8) AES Inputs, (4) 3G/HD/SD-SDI Outputs, (8) AES Outputs (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Inputs, (8) AES Inputs, (4) 3G/HD/SD-SDI Outputs, (8) AES Outputs (All coaxial connectors HD-BNC.)
- RM20-9902-UDX-DSP-CI-F 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Input BNCs, (1) 3G/HD/SD-SDI Processed Out BNC w/ Latching Input Select/Bypass, (3) 3G/HD/SD-SDI Output BNCs (GUI-selectable as processed or reclocked of selected input, (2) GPI, (2) GPO
- RM20-9902-UDX-DSP-CI-G-DIN 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) SDI/CVBS Input, (4) AES Inputs, (4) Balanced Analog Audio Inputs, (2) 3G/HD/SD-SDI Outputs, (1) CVBS Output, (4) AES Outputs, (4) Balanced Analog Audio Outputs (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-G-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) SDI/CVBS Input, (4) AES Inputs, (4) Balanced Analog Audio Inputs, (2) 3G/HD/SD-SDI Outputs, (1) CVBS Output, (4) AES Outputs, (4) Balanced Analog Audio Outputs (All coaxial connectors HD-BNC.)
- RM20-9902-UDX-DSP-CI-H-DIN 20-Slot Frame Rear I/O Module (Standard Width) (3) 3G/HD/SD-SDI Inputs, (2) AES Inputs, (4) Balanced Analog Audio Inputs, (5) 3G/HD/SD-SDI Outputs, (2) AES Outputs, (4) Balanced Analog Audio Outputs, (1) Coaxial GPI/6 Hz, (1) Coaxial GPO w/ Isolated Return (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-H-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (3) 3G/HD/SD-SDI Inputs, (2) AES Inputs, (4) Balanced Analog Audio Inputs, (5) 3G/HD/SD-SDI Outputs, (2) AES Outputs, (4) Balanced Analog Audio Outputs, (1) Coaxial GPI/6 Hz, (1) Coaxial GPO w/ Isolated Return (All coaxial connectors HD-BNC.)
- RM20-9902-UDX-DSP-CI-J-DIN 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (2) AES Inputs, (4) Balanced Analog Audio Inputs, (4) 3G/HD/SD-SDI Outputs, (1) CVBS Output, (2) AES Outputs, (4) Balanced Analog Audio Outputs, (1) Coaxial GPI/6 Hz, (1) Coaxial GPO w/ Isolated Return (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-J-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (2) AES Inputs, (4) Balanced Analog Audio Inputs, (4) 3G/HD/SD-SDI Outputs, (1) CVBS Output, (2) AES Outputs, (4) Balanced Analog Audio Outputs, (1) Coaxial GPI/6 Hz, (1) Coaxial GPO w/ Isolated Return (All coaxial connectors HD-BNC.)
- RM20-9902-UDX-DSP-CI-K-DIN 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Inputs, (4) 3G/HD/SD-SDI Outputs (one 3G/HD/SDI Output with relay bypass failover), (6) AES Inputs, (2) Balanced Analog Audio Inputs, (4) AES Outputs, (1) GPIO/COMM RJ-45 connector (All coaxial connectors DIN1.0/2.3)
- RM20-9902-UDX-DSP-CI-K-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Inputs, (4) 3G/HD/SD-SDI Outputs (one 3G/HD/SDI Output with relay bypass failover), (6) AES Inputs, (2) Balanced Analog Audio Inputs, (4) AES Outputs, (1) GPIO/COMM RJ-45 connector (All coaxial connectors HD-BNC)
- RM20-9902-UDX-DSP-CI-L-DIN 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD-SD-SDI Inputs, (1) CVBS Input, (8) 3G/HD/SD-SDI Outputs (1x2 DA output of each crosspoint out), (1) CVBS Output, COMM/GPIO RJ-45 connector, Ethernet Port (All coaxial connectors DIN1.0/2.3)
- RM20-9902-UDX-DSP-CI-L-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD-SD-SDI Inputs, (1) CVBS Input, (8) 3G/HD/SD-SDI Outputs (1x2 DA output of each crosspoint out), (1) CVBS Output, COMM/GPIO RJ-45 connector, Ethernet Port (All coaxial connectors HD-BNC)
- RM20-9902-UDX-DSP-CI-N-DIN 20-Slot Frame Rear I/O Module (Double Width) (4) 3G/HD/SD-SDI Inputs, (1) CVBS Analog Video In, (8) AES Inputs, (4) Balanced Analog Audio Inputs, (8) 3G/HD/SD-SDI Outputs (1 with relay bypass protect) , (1) CVBS Analog Video Out, (8) AES Outputs, (4) Balanced Analog Audio Outputs, (1) GPIO/COMM RJ-45 connector, 100/1000 BaseT Ethernet Port (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-N-HDBNC 20-Slot Frame Rear I/O Module (Double Width) (4) 3G/HD/SD-SDI Inputs, (1) CVBS Analog Video In, (8) AES Inputs, (4) Balanced Analog Audio Inputs, (8) 3G/HD/SD-SDI Outputs (1 with relay bypass protect) , (1) CVBS Analog Video Out, (8) AES Outputs, (4) Balanced Analog Audio Outputs, (1) GPIO/COMM RJ-45 connector, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
- Note: Rear module RM20-9902-UDX-DSP-CI-P-DIN or RM20-9902-UDX-DSP-CI-P-HDBNC is required if option -CI-SFP is ordered.
- RM20-9902-UDX-DSP-CI-P-DIN 20-Slot Frame Rear I/O Module (Double-Width) (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (4) Balanced Analog Audio Inputs, (8) AES-3id AES Inputs, (1) SFP cage receptacle (valid with option -CI-SFP), (5)3G/HD/SD-SDI Outputs (relay bypass for SDI IN B – SDI OUT 2B path), (1) CVBS Output, (4) Balanced Analog Audio Outputs, (8) AES-3id AES Outputs (All coaxial connectors DIN1.0/2.3.)
- RM20-9902-UDX-DSP-CI-P-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (2)3G/HD/SD-SDI Inputs, (1) CVBS Input, (4) Balanced Analog Audio Inputs, (8) AES-3id AES Inputs, (1) SFP cage receptacle (valid with option -CI-SFP), (5) 3G/HD/SD-SDI Outputs (relay bypass for SDI IN B – SDI OUT 2B path), (1) CVBS Output, (4) Balanced Analog Audio Outputs, (8) AES-3id AES Outputs (All coaxial connectors HD-BNC.)
