9971-MV18-4K 12G/6G/3G/HD/SD 18-Input UHD Multiviewer

Tabs

Overview

The Cobalt® 9971-MV18-4K 12G/6G/3G/HD/SD 18-Input UHD Multiviewer is part of Cobalt’s next generation of advanced UHD high-capacity channel multiviewers for the openGear® platform. Full-flexibility design accommodates 12G/6G/3G/HD/SD-SDI and UHD1 3840x2160 Square DIvision (SDQS) or Two-Sample Interleave (2SI) quad 3G-SDI based formats as I/O, and can output ST 2082 12G-SDI for single-wire 4K transport. Using 12G-SDI “single-wire” inputs, up to 18 discrete PiP images can be supported. With both 12G-SDI and quad 3G-SDI inputs, the 9971-MV18-4K can downconvert 12G and quad UHD. The 9971-MV18-4K provides up to two HDMI 2.0 outputs for economical 4K video monitoring.

The 9971-MV18-4K suite offers unprecedented ease of setup and also offers an unprecedented ease of use. Fully-flexible layouts using any of several one-button template presets or fully customizable layouts using easy to use sizing/positioning custom controls. Any template layout or custom layout changes can be done "on-the-fly" in real time, without tedious setup or layout programs like many other multiviewer products. Graphical overlay features include user text “burn-in” insertions that can correlate the images displayed with contextual information. Numerous preset layout formats are available, as well as custom layouts as desired. Custom layout and configuration settings can be saved to user presets, allowing the custom settings to be recalled with one click.

The high-density openGear® design allows for up to five 9971-MV18-4K cards to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol.

Features

High-density openGear comprehensive UHD multiviewer solution
Allows easy, real-time “on the fly” custom layout changes without needing setup or layout programs
Supports Square Division (SDQS) and Two-Sample Interleave (2SI) quad UHD formats
Easy to configure PiP sizing and borders
PiP Identity Text, Video Format, Closed Captioning, Clock burn-ins. LTC burn-in from discrete external RS-485 or per-PiP VBI-based ATC_LTC or ATC_VITC timecode. User graphic overlay import.
UHD 3840x2160 output raster support
Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panel, or Cobalt’s RESTful-based Reflex protocol
Five year warranty

Options

Option

Dual Screen Option (+DUAL) – Enables dual head output to drive multiple monitors with different layouts. The input and output crosspoints are shared with the two independent screen processors. All functions and layout choices are independently available for both screen processors.

Diagrams

Specifications

Power
< 18 Watts

12G/6G/3G/HD/SD-SDI Inputs/Outputs
Video Inputs: (18) 75Ω inputs (max)
Outputs: (4) 75Ω Outputs (max)
SDI Formats Supported: SMPTE ST2082-1, ST2082-10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss:
>15 dB up to 1.485 GHz
>10 dB up to 2.970 GHz
>7 dB up to 6 GHz
>5 dB up to 12 GHz
Input Cable Length:
60m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ± 10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

HDMI Outputs
(2, max) HDMI 2.0 Output; type A standard connector

On-Screen Graphics Burn-In
Tally, PiP Identity Text (entered via UI), per-PiP video format, CC. Clock, LTC burn-in from discrete external RS-485 or per-PiP VBI-based ATC_LTC or ATC_VITC timecode. User graphic overlay import.

Rear Module Options

Rear Modules

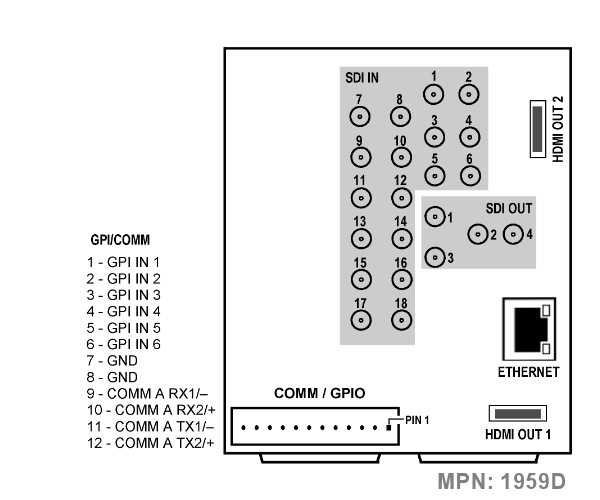

RM20-9971-D-HDBNC

   • (18) PiP Video SDI In
   • (4) SDI Out
   • (2) HDMI Out
• COMM/GPIO
   • 100/1000 BaseT Ethernet Control Port
    (All coaxial connectors HD-BNC)

Ordering Information

9971-MV18-4K 12G/6G/3G/HD/SD 18-Input UHD Multiviewer

Rear Modules:

RM20-9971-D-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (18) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, GPIO/COMM, (2) HDMI 2.0 Output (type A standard), 10/100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
