9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing | Dante Option

Tabs

Overview

The Cobalt® 9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing is Cobalt’s next generation of advanced scaler/frame synchronizers for the openGear® platform.

The 9904-UDX-4K-DSP upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K-DSP offers numerous options, including SDR-to-HDR conversion and color correction.

The 9904-UDX-4K-DSP offers a DSP-based platform that supports multiple advanced audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® E/D/D+ encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.

The high-density openGear® design allows for up to five 9904-UDX-4K-DSP cards to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol.

Features

High-density openGear comprehensive UHD UDX solution
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p. Can support/accept 3G Level A or Level B-DL input with output as Level A or B-DL (via UI control) and also support RGB 4:4:4 / YCbCr 4:4:4 (see Ordering Info for details).
Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDM/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats
SDR-to-HDR, 4K color correction, and 3D LUT processing options available
12G-SDI and quad 3G frame sync and user delay
Supports Cobalt’s Reflex (JSON) Protocols
DSP-based platform supports multiple audio DSP options, with multiple instances available using allocatable license “credits”
Dolby encoding/decoding, Dolby Real-Time Loudness Leveling (RTLL) loudness leveling with full parametric control setup, and Linear Acoustic UPMAX™ upmixing DSP audio options available
Full embedded audio processing with user delay offset and AES I/O
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels, or Cobalt’s RESTful-based Reflex protocol
Hot-swappable
Five year warranty

Options

Option

Note:
• Options denoted as "+" are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade.
• Options or ordering line items denoted as “-“ are hardware-based options/items. These options are
'available as factory-installed only on new product, or product returned to Cobalt for
'factory installation.
-------------------------------------------------------------------------------------------------------------------------------------------

SDR/HDR Conversion Options (+HDR-TCHCLR-4K, +HDR-TCHCLR) – Provides real-time intelligent HDR conversion powered by Technicolor®. Contains SDR-to-HDR, HDR-to-SDR, and HDR-to-HDR conversion with dynamic metadata creation. Technicolor toolkits include SL-HDR encode, SL-HDR decode, and ITM Intelligent Tone Management.

3D LUT Options (+3DLUT-PRO-4K, +3DLUT-PRO) – 3D LUT (Lookup Table) options provide 33 cube LUT mapping between 10-bit RGB and HDR color spaces.

BBC 3D LUT Option (+3D-LUT-BBC) – Licensed product developed by the BBC, provides BBC 3D LUTS as optional SDR-to-HDR and HDR-to-SDR profiles. (Requires +3D-LUT-PRO or +3D-LUT-PRO-4K option to also be present to support this option.)

Color Correction Options (+COLOR-4K, +COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip.

Key/Fill Keyer Option (+KEYER-4K, +KEYER) – Provides keying using SDI inputs for key and fill signals. Alpha Threshold mode allows full-color key/fill using low-cost PC-based graphics host where the same signal provides a shared key/fill input. (A second +KEYER option license can be added to enable a second independent keyer block.)

Ancillary Data Processor Option (+ANC) – Provides full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data, with insert/extract to and from IP and GPIO external interfaces.

Logo Insertion Option (+LOGO-4K, +LOGO) – Provides file-based insertion for branding local or destination branding/ID requirements. Stores up to 32 user graphics on card. Up to two graphics can be inserted simultaneously. Insertion enable via manual control or GPI. Full independent H-V positioning available. +T-SLATE (trouble slate insertion) functionality is included with the +LOGO option.

Dolby® Real-Time Loudness Leveling Automatic Loudness Processing Options (+DSP-RTLL) – Provides advanced loudness processing with comprehensive parametric controls. Available as surround 5.1 and stereo 2.0. (See Ordering Information for full details.)

Dolby® Encoder Options (+DSP-ENC) – Available as Dolby Digital/Digital Plus encode. (See Ordering Information for full details.)

Dolby® Decoder Options (+DSP-DEC) – Provides Dolby Digital, Digital Plus, and E decode.

Linear Acoustic® UPMAX™ Upmixing (+DSP-UPMIX-LA) – Provides automatic 2.0-to-5.1 Linear Acoustic® UPMAX™ upmixing.

Audio LTC I/O Option (+LTC)

+UDX-DANTE-16x16 - Adds DANTE support of 16x16 channels to the 9904-UDX card but it cannot be used simultaneously with +HDR-TCHCLR and +LOGO licenses. Option available for the following products: 9904-UDX-4K, 9904-UDX-4K-DSP and 9904-UDX-4K-IP. Option to be added per card at the time of card purchase. Not field upgradeable.

PRODUCT DOWNLOADS

Option +DSP App Note/Setup Examples and Overview

-H2S Option – Adds daughter card supporting externally-accessible HDMI input

Diagrams

Specifications

Note: All specifications are preliminary and subject to change.

12G/6G/3G/HD/SD-SDI Input/Outputs
(6) 75Ω inputs (max)
(8) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
> 7 dB up to 6 GHz
> 5 dB up to 12 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

AES Audio Inputs/Outputs
(8) AES-3id 75Ω coaxial ports; port direction assignable as inputs or outputs in groups of 4 ports.
Note: Hardware rev –E and later has 8 AES ports; earlier versions have 4 port max.

MADI Audio Inputs/Outputs
(2) 75Ω coaxial ports (max)
Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module used
and is available only on card with on rev C (or later) hardware with firmware supporting MADI I/O.
See Rear Module illustrations for specific information.

HDMI Input (Option -H2S only)
HDMI 2.0 Input; mini connector

HDMI Output
HDMI 2.0 Output; type A standard connector

GPIO
6 GPI (max); 2 GPO (max)
Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9904 cards supported (by Frame Model)
  •OG3 Frame: (5) cards
  •HPF-9000 Frame: (5) cards
  •oGx Frame: (7) cards
Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

Rear Module Options

Rear Modules

Note:
• MADI I/O is available on rev C (or later) hardware with firmware supporting MADI I/O. When enabled
'MADI In and MADI Out acquire SDI In 6 and SDI Out 5 (respectively) on rear modules that support
'these I/O. Rear modules that support MADI I/O ("MADI Compatible") show the MADI port locations
'that are SDI IN 6 and/or SDI OUT 5 alternatives (as shown in rear module illustrations).
• 9904-UDX-4K-DSP model does not support SFP ports. SFPs are not supported nor present when
'using rear modules that show SFP presence in rear module illustrations here.

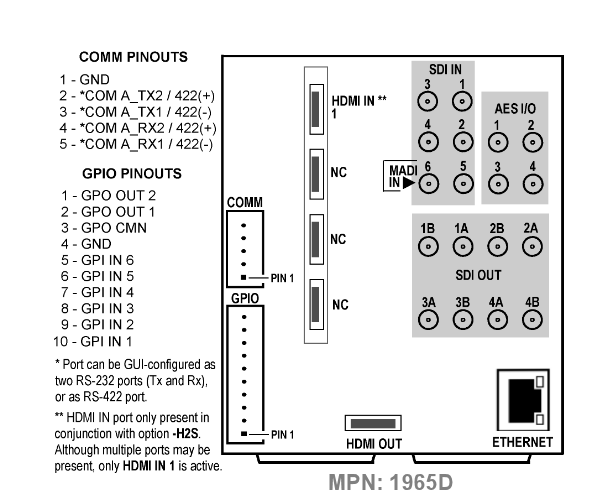

RM20-9904-A-HDBNC

   • (6) SDI In
   • (8) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: This rear module replaces obsolete
rear module RM20-9904-B-HDBNC below.

RM20-9904-B-HDBNC

   • (6) SDI In
   • (8) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: This rear module is being replaced by
rear module RM20-9904-A-HDBNC
(shown above). RM-20-9904-A-HDBNC has
identical connectivity and form function/size
as obsoleted rear module RM20-9904-B-HDBNC.

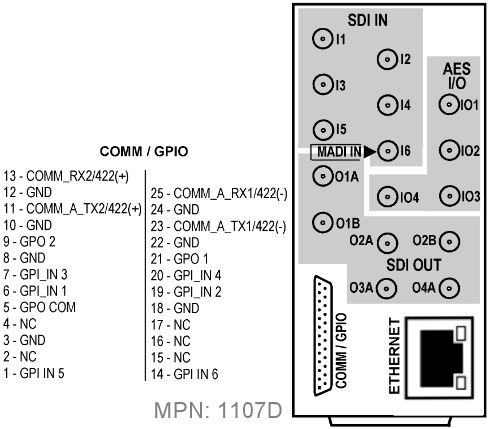

RM20-9904-D-HDBNC

   • (6) SDI In
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
   • (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
      Note: Due to the alignment of the 9904 card and this
rear module, the combination of the card and rear module
will consume the adjacent odd frame slot in addition to the
even slot occupied by the card.
      Note: This rear module cannot be installed in frame slots
     19/20 location. The 9904-UDX card, when installation is
     attempted, will clash/interfere with the frame network
     controller card.

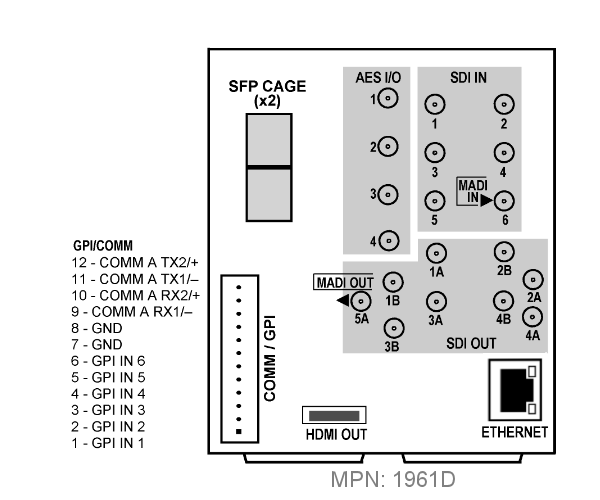

RM20-9904-E-HDBNC

• (6) SDI In
   • (9) SDI Out
   • (4) AES I/O (User Selectable)
• (1) HDMI Out
• MADI Compatible
   • GPI/COMM
• (1) 100/1000 BaseT Ethernet Port
Note: This rear module has been replaced
by rear module RM20-9904-F-HDBNC
(shown below).

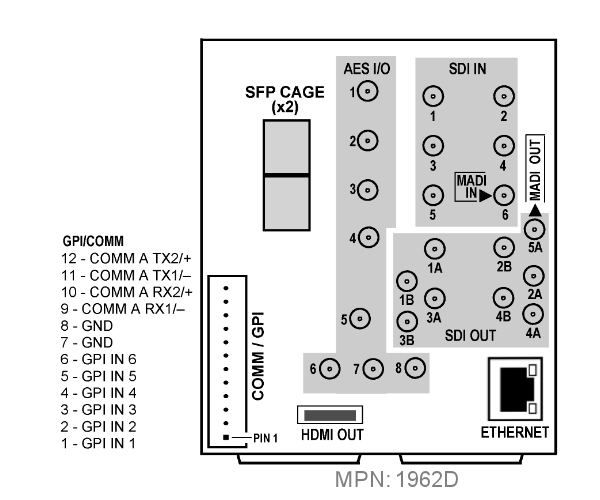

RM20-9904-F-HDBNC

   • (6) SDI In
   • (9) SDI Out
   • (8) AES I/O (User Selectable)
• MADI Compatible
   • GPI/COMM
   • (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

Note: (8) AES ports supported on card hardware rev -E and
later. Earlier card versions support (4) AES ports (max).

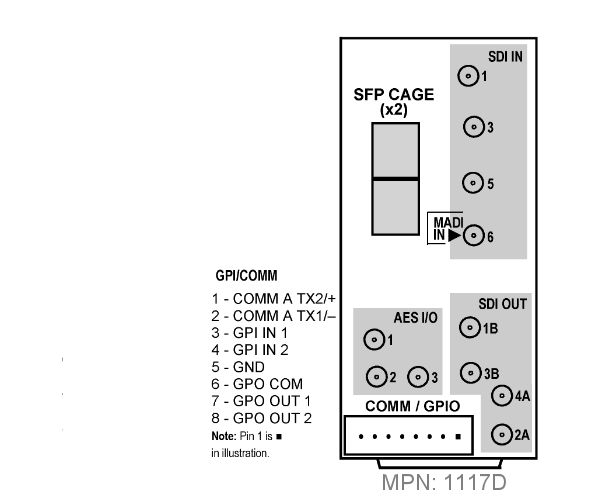

RM20-9904-G-HDBNC

   • (4) SDI In
   • (4) SDI Out
   • (3) AES I/O (User Selectable)
• MADI Compatible
   • GPIO/COMM
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.

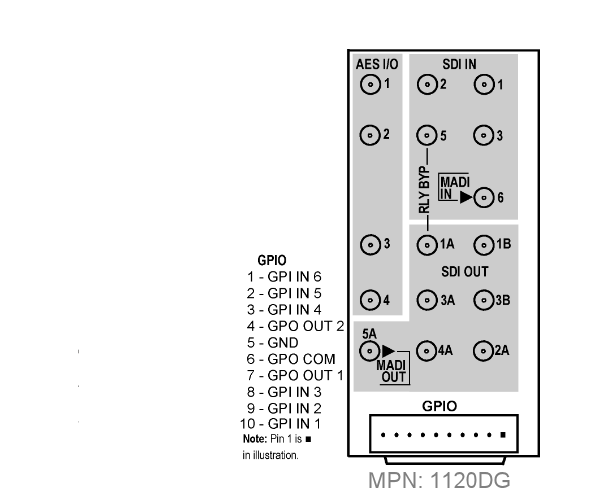

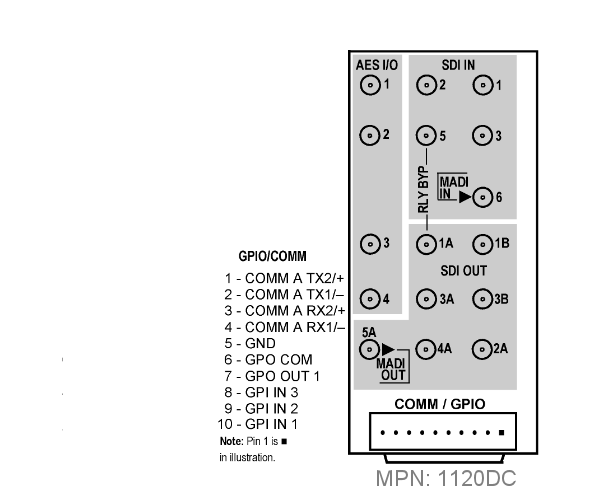

RM20-9904-H-HDBNC

   • (5) SDI In
   • (1) Relay protected SDI Out
(processed SDI OUT 1A or SDI IN 5
on loss of power)
   • (7) SDI Out
• MADI Compatible
   • (4) AES I/O (User Selectable)
   • GPIO/COMM
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

RM20-9904-J-HDBNC

   • (5) SDI In
   • (1) Relay protected SDI Out
(processed SDI OUT 1A or SDI IN 5
on loss of power)
   • (7) SDI Out
• MADI Compatible
   • (4) AES I/O (User Selectable)
   • GPIO
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

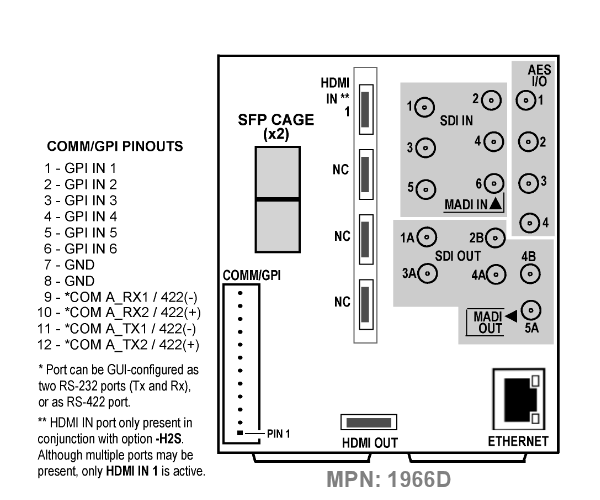

RM20-9904-K-HDBNC

   • (6) SDI In
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
• MADI Compatible
   • COMM/GPI
• (1) HDMI In (option –H2S only)
Note: This input resides on the
card assembly and projects through
a cutout on the rear module. The
connectors are not part of the rear
module assembly. (The connectors are
shown here for reference.)
   • (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

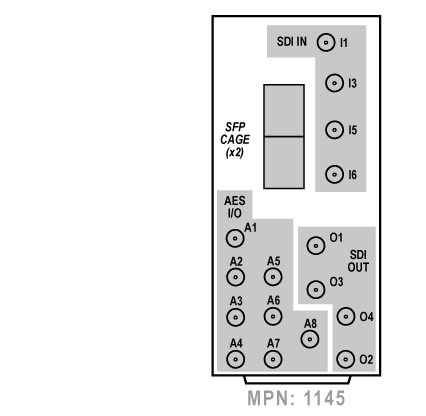

RM20-9904-P-HDBNC

(4) SDI In (I1, I3, I5, and I6)
(4) SDI Out (O1-4)
(8) AES I/O (A1-8 User Selectable)
(2) SFP Cages
(All coaxial connectors HD-BNC)

Ordering Information

9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing

Note: Card can support/accept 3G Level A or Level B-DL input with output as Level A or B-DL (via UI control) and also support RGB 4:4:4 / YCbCr 4:4:4 when card is loaded with corresponding firmware offset version. The functionality described here is available as standard (no additional charge) when requested at order. Consult Product Support for more information.
Rear Modules:

Note:
• MADI I/O is available on rev C (or later) hardware with firmware supporting MADI I/O. When enabled
'MADI In and MADI Out acquire SDI In 6 and SDI Out 5 (respectively) on rear modules that support
'these I/O. Rear modules that support MADI I/O show the MADI port locations that are SDI IN 6 and/or
'SDI OUT 5 alternatives. Rear modules that support MADI are identified below as MADI Compatible.
RM20-9904-A-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (8) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, HDMI 2.0 Output (type A standard connector), (1) HDMI 2.0 Input (mini connector) (when used in conjunction with option –H2S), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (6) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-F-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (9) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, GPI/COMM, HDMI 2.0 Output (type A standard connector), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-G-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (3) AES I/O, GPIO/COMM MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot)
RM20-9904-H-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 12G/6G/3G/HD/SD/SD-SDI Inputs, (7) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, GPIO/COMM MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9904-J-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 12G/6G/3G/HD/SD/SD-SDI Inputs, (7) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, GPIO MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9904-K-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (6) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, COMM/GPI, HDMI 2.0 Output (type A standard connector), (1) HDMI 2.0 Input (mini connector) (when used in conjunction with option –H2S), 100/1000 BaseT Ethernet Port MADI Compatible (All coaxial connectors HD-BNC.)
RM20-9904-P-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (2) SFP/Receptacles (All coaxial connectors HD-BNC.) This I/O panel is supported on the HPF-9000 and oGx openGear frames
Options:
+DSP-RTLL-5.1 Dolby® Real-Time Loudness Leveling 5.1-Channel Surround Sound Loudness Processor
+DSP-RTLL-2.0 Dolby® Real-Time Loudness Leveling 2.0-Channel Stereo Loudness Processor
+DSP-ENCD-5.1 Dolby® Digital / Digital Plus 5.1 Encoder
+DSP-ENCD-2.0 Dolby® Digital / Digital Plus 2.0 Encoder
+DSP-DEC Dolby® E / Dolby® Digital / Dolby® Digital Plus Decoder
+DSP-UPMIX-LA Linear Acoustic UPMAX™ 2.0-to-5.1 Upmixer
-H2S Adds daughter card supporting externally-accessible HDMI input port; orderable as new option. Note: To support HDMI input option -H2S, this option is required in addition to card fitted with rear module (such as RM20-9904-B-HDBNC) that allows access to the daughter card-located HDMI input connector.
