9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor with Advanced HDR Conversion and Dante Option

Tabs

Overview

9905-MPx with Dante Audio – IBC22 Best of Show

The Multi-Path 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is a Cobalt® next-generation advanced scaler/frame synchronizer for the openGear® platform. The 9905-MPx provides four independent signal paths of UDX / frame sync / audio embedding and de-embedding on a single open-Gear® card. Using our HPF-9000 20-slot frame, this provides up to 24 channels (6 cards) of processing in a single frame. The 9905-MPx represents a new level of openGear packaging density!

The 9905-MPx provides high-density that offers unprecedented multi-input support and flexibility. Independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Discrete AES and MADI audio embedding/routing/mixing/de-embedding to any of four processing paths is supported. Standard 3D LUT feature and available color correction provide accommodation of SDR and HDR processing for downstream HDR systems.

Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol. The 9905-MPx can be software-converted to a 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync card with an option software license.

Features

Multi-Path design offers four independent UDX / frame sync paths (channels) per card
Flexible AES and MADI embed/de-embed for each path
Multi-input RP168 clean switch, with manual selection or GPI controlled input selection
Up/Down/Cross Conversion with user ARC control. 3D-LUT is standard feature for all paths.
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p
Independent four-path ANC bridging, including closed-captioning processing
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels or Cobalt’s RESTful-based Reflex protocol
Five year warranty

Options

Option

Note:
• Options denoted as "+" are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade. Unless otherwise noted,
software options are per-card based. Options which are per-path based are identified as such.
• Options or ordering line items denoted as “-“ are hardware-based options/items and are card-based.
These options are available as factory-installed only on new product, or product returned to Cobalt
'for factory installation.
-------------------------------------------------------------------------------------------------------------------------------------------

Color Correction (+COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip (per-path based)

Logo Insertion Option (+LOGO) – Provides file-based insertion for branding local or destination branding/ID requirements. Stores up to 32 user graphics on card. Any graphic can be inserted into any path video. Up to two graphics can be inserted simultaneously on any path. Insertion enable via manual control or GPI. Full independent H-V positioning available.

Clean & Quiet Switching (+CQS) – Provides automatic audio ramp-down and up during input switching events for noise-free audio between input switches

Dante Option (+MPx-DANTE-64x64) - Adds DANTE support of 64x64 channels to the quad path 9905-MPx. Option to be added per card at the time of card purchase. Not field upgradeable.

Dolby® Real-Time Loudness Leveling Automatic Loudness Processing Options (+DSP-RTLL) – Provides advanced loudness processing with comprehensive parametric controls. Available as surround 5.1 and stereo 2.0. (See Ordering Information for full details.)

Dolby® Encoder Options (+DSP-ENC) – Available as Dolby Digital/Digital Plus encode. (See Ordering Information for full details.)

Dolby® Decoder Options (+DSP-DEC) – Provides Dolby Digital, Digital Plus, and E decode.

Linear Acoustic® UPMAX™ Upmixing (+DSP-UPMIX-LA) – Provides automatic 2.0-to-5.1 Linear Acoustic® UPMAX™ upmixing.

DOWNLOAD +DSP PDF

Option +DSP App Note/Setup Examples and Overview

BBC LUTS (+3D-LUT-BBC) – Licensed product developed by the BBC, provides BBC 3D LUTS for SDR-to-HDR and HDR-to-SDR

IP ANC Insert/Extract Option (+ANC) (Per-path based; 4-path internal ANC bridge is standard)

Serial-To-Embedded Audio LTC In (+LTC)

Software-Defined Convert Card to 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync
(+2K-TO-4K-9905) – Software-defined option license that converts card to Quad-Link Input SDM/2SI 4K UDX/Frame Sync model

-UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage.

Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP-MSA option can only be used with rear modules (such as RM20-9905-C-HDBNC) that support SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector)

-SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD-MSA Software-Defined MSA SFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

-UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. (See Ordering Information for SFP types available and detailed descriptions.) Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP option can only be used with rear modules (such as RM20-9905-C-HDBNC) that support SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector)

-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector)

-SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO Single-Channel Video Optical Transmitter (LC female connector)

-SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector)

-SFP-OE Single-Channel Video Optical Receiver (LC female connector)

-SFP-2OE Dual-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD Software-Defined EmSFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

Diagrams

Specifications

Note: All specifications are preliminary and subject to change.

3G/HD/SD-SDI Input/Outputs
(4) 75Ω inputs (max); (4) inputs can be simultaneously routed to the four UDX/FS paths.
(2x4) 75Ω outputs (max)
SDI Formats Supported: SMPTE 424M, 292M, SMPTE 259M

525i 59.94	1920×1080р 29.97
625i 50	1920x1080p 30
1280x720p 23.98	1920x1080pst 23.98
1280x720p 24	1920x1080psf 24
1280x720p 25	1920x1080psf 25
1280×720p 29.97	1920x1080psf 29.97
1280x720p 30	1920x1080psf 30
1280×720р 50	1920x1080p 50 A
1280×720р 59.94	1920x1080p 59.94 A
1280x720p 60	1920x1080p 60 A
1920×1080i 50	2048х1080р 23.98
1920×1080 59.94	2048x1080p 24
1920×1080i 60	2048x1080p 25
1920х1080р 23.98	2048x1080p 50 A
1920×1080р 24	2048×1080p 59.94 А
1920х1080р 25	2048x1080p 60 A

Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
Input Cable Length:
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

AES Audio Inputs/Outputs
(8) AES-3id 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

MADI Audio Inputs/Outputs
(2) 75Ω coaxial ports (max)
Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module Used. See Rear Module illustrations for specific information.

MPx-DANTE-64x64 Audio Inputs/Outputs
(64) Input Channels
(64) Output Channels
Note: This is an optional feature.

HDMI Output
HDMI 2.0 Output; type A standard connector

GPIO
6 GPI (max); 2 GPO (max)
Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9905 cards supported per Frame Model)
  •OG3 Frame: (5) cards
  •HPF-9000 Frame: (5) cards
  •oGx Frame: (7) cards
Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

Rear Module Options

Rear Modules

Note:
• Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP
option must be provisioned for rear module SFP functionality.
• SFP port-type availability depends upon SFP Type, rear IO module, and 9904-UDX host card rev
as follows:
• Option -UDX-SFP (non-MSA); Card Rev E and earlier with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs.
• Option -UDX-SFP (non-MSA); Card Rev F and later with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
• Option -UDX-SFP-MSA (no card restictions):
- Top SFP port supports 1 Fiber input and 1 Fiber output.
- Bottom SFP port supports 1 Fiber input and 1 Fiber output.

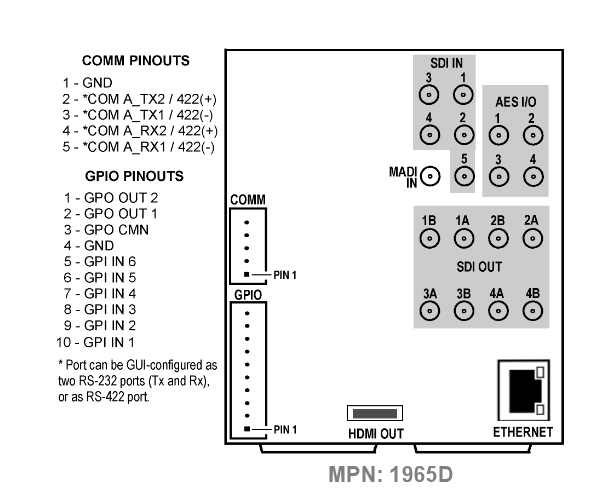

RM20-9905-A-HDBNC

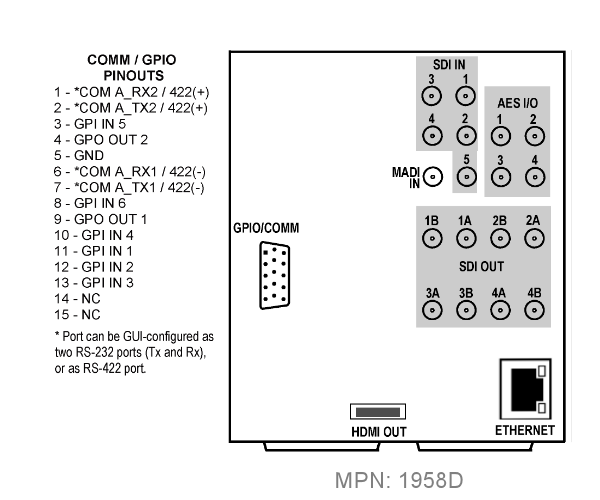

RM20-9905-B-HDBNC

   • (5) SDI In
   • (8) SDI Out
   • (4) AES I/O (User Selectable)
• (1) MADI In
   • GPIO/COMM
• (1) HDMI Out
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: This rear module is being replaced
by rear module RM20-9905-A-HDBNC
(shown above). RM-20-9905-A-HDBNC has identical
connectivity and form function/size as
obsoleted rear module RM20-9905-B-HDBNC.

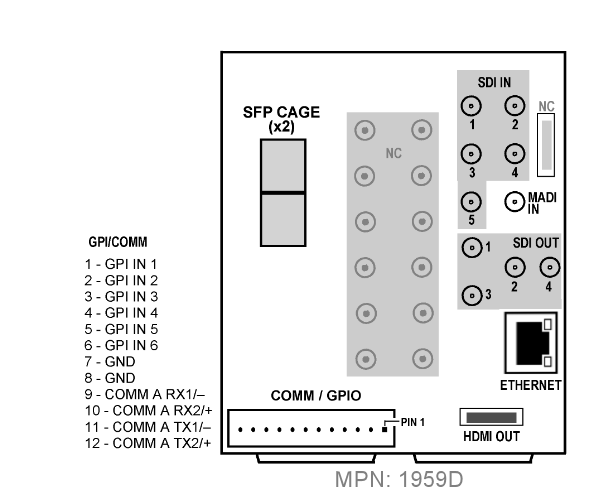

RM20-9905-C-HDBNC

   • (5) SDI In
   • (4) SDI Out
• (1) MADI In
   • GPI/COMM
   • (1) HDMI Out
   • (2) SFP cage receptacles (valid
with SFP option)
   • (1) 100/1000 BaseT Ethernet Port
      (All coaxial connectors HD-BNC)

RM20-9905-D-HDBNC

   • (5) SDI In
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
• (1) MADI In
   • GPIO/COMM
   • (1) 100/1000 BaseT Ethernet Port
      (All coaxial connectors HD-BNC)
      Note: Due to the alignment of the 9905-MPx card and this
rear module, the combination of the card and rear module
will consume the adjacent odd frame slot in addition to the
even slot occupied by the card.
      Note: This rear module cannot be installed in frame slots
     19/20 location. The 9905-MPx card, when installation is
     attempted, will clash/interfere with the frame network
     controller card.

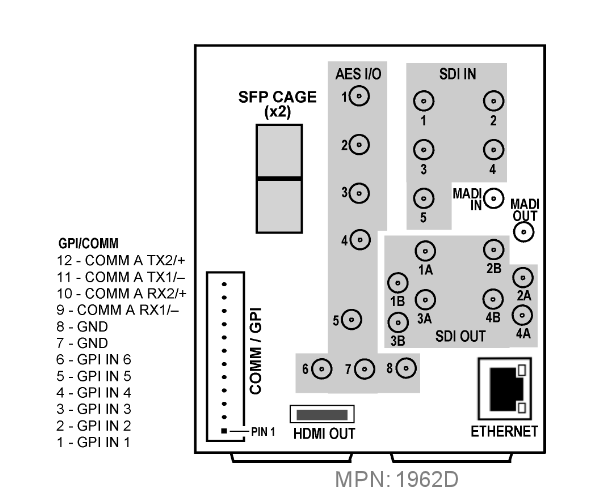

RM20-9905-F-HDBNC

   • (5) SDI In
   • (8) SDI Out
   • (8) AES I/O (User Selectable)
• (1) MADI In
• (1) MADI Out
• (1) HDMI Out
• (2) SFP cage receptacles (valid
with SFP option)
   • GPI/COMM
   • (1) 100/1000 BaseT Ethernet Port

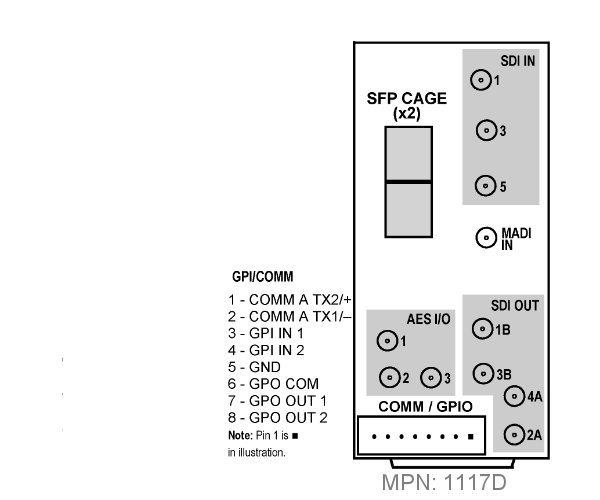

RM20-9905-G-HDBNC

   • (3) SDI In
   • (4) SDI Out
   • (3) AES I/O (User Selectable)
• (1) MADI In
• (2) SFP cage receptacles (valid with
SFP option)
   • GPIO/COMM
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.

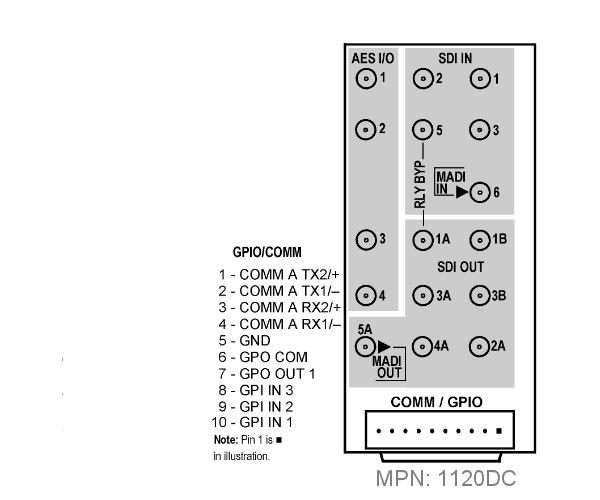

RM20-9905-H-HDBNC

   • (4) SDI In
   • (1) Relay protected SDI Out (proc or SDI IN 5 on loss of
       power)
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
   • (1) MADI In
   • (1) MADI Out
   • GPIO/COMM
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

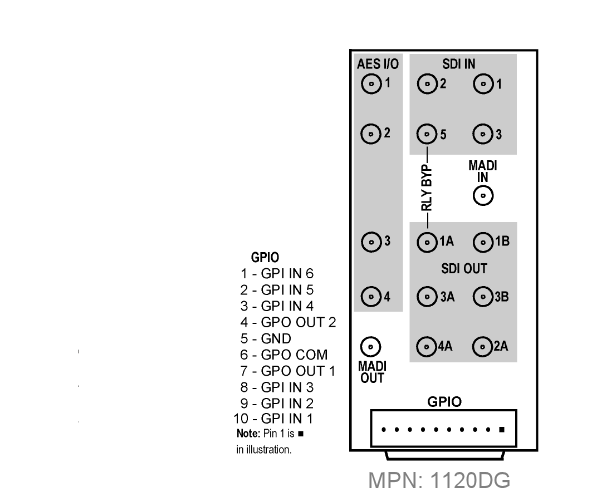

RM20-9905-J-HDBNC

   • (4) SDI In
   • (1) Relay protected SDI Out (proc or SDI IN 5 on loss of
       power)
   • (6) SDI Out
   • (4) AES I/O (User Selectable)
   • (1) MADI In
   • (1) MADI Out
   • GPIO
      (All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass
path stipulates maximum cable length
not to exceed 10m for total of both
input and output cable lengths.

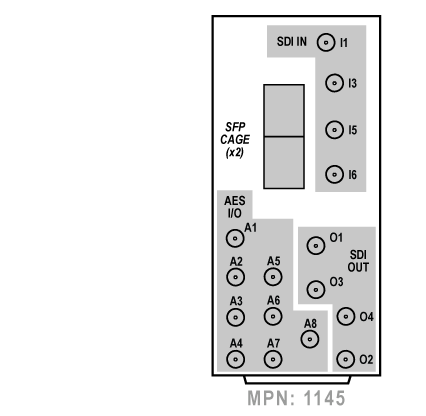

RM20-9905-P-HDBNC

   • (4) SDI In (I1, I3, I5, and I6)
   • (4) SDI Out (O1-4)
   • (8) AES I/O (A 1 - 8 User Selectable)
   • (2) SFP Cages
(All coaxial connectors HD-BNC)

Ordering Information

9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor

Rear Modules:

Note: Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP
option must be provisioned for rear module SFP functionality.
RM20-9905-A-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (8) 3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, (1) MADI Input, GPIO/COMM, HDMI 2.0 Output (type A standard connector), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9905-C-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (4) 3G/HD/SD/SD-SDI Processed Outputs, (1) MADI Input, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9905-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, (1) MADI Input, GPIO/COMM, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9905-F-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (8) 3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (1) MADI Input, (1) MADI Output, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)
RM20-9905-G-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (3) 3G/HD/SD/SD-SDI Inputs, (4) 3G/HD/SD/SD-SDI Processed Outputs, (3) AES I/O, (1) MADI Input, (2) SFP cage receptacles (when used in conjunction with SFP option), GPIO/COMM (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9905-H-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, (1) MADI Input, (1) MADI Output, GPIO/COMM (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9905-J-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, (1) MADI Input, (1) MADI Output, GPIO (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)
RM20-9905-P-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (4) 3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (2) SFP/Receptacles (All coaxial connectors HD-BNC.)

Licensed Options:

+3D-LUT-BBC BBC 3D LUTS Option
+COLOR Color Correction Option
+LOGO Logo Insertion Option
+DSP-RTLL Provides Dolby® advanced loudness processing Option
+DSP-ENC Provides Dolby® Digital, Digital Plus Encoding Option
+DSP-DEC Provides Dolby® Digital, Digital Plus and E decode Option
+DSP-UPMIX-LA Provides Linear Acoustic® automatic 2.0 to 5.1 upmixing Option
+ANC IP ANC Insert/Extract Option
+LTC RS-485 Serial-To-Embedded Audio LTC In Option
+CQS Clean & Quiet Switching Option
+MPx-DANTE-64x64 Adds DANTE support of 64x64 channels to the quad path 9905-MPx. Option to be added per card at the time of card purchase. Not field upgradeable.
+2K-TO-4K-9905 Software-Defined Convert Card to 4K Quad-Link SDM/2SI 4K UDX/Frame Sync Option
-UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9905-MPx card when also fitted with SFP option -UDX-SFP-MSA.-UDX-SFP-MSA-4S daughter card is used with 4-slot ("Double-Width") rear module (such as RM20-9905-C-HDBNC or RM20-9905-F-HDBNC). UDX-SFP-MSA is only available for use in conjunction with 4-slot rear modules and daughter card -UDX-SFP-MSA-4S). Rear modules RM20-9905-C-HDBNC, RM20-9905-F-HDBNC and option -UDX-SFP-MSA-4S are available separately.
-SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)
-SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)
-SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)
-SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors)
-SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector)
-SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD-MSA Software-Defined MSA SFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD-MSA (Up to 3 software licenses can be added to the -SFP-IP-SWD-MSA, but only 1 license can be active at a time):
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator
IP-2022-6-to-SDI
+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110

-UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9905-MPx card when also fitted with SFP option -UDX-SFP.
-UDX-SFP-2S is required where 2-slot ("Standard-Width") rear module (such as RM20-9905-G-HDBNC) is to be fitted with SFP option.
-UDX-SFP-4S is required where 4-slot ("Double-Width") rear module (such as RM20-9905-C-HDBNC or RM20-9905-F-HDBNC) is to be fitted with SFP option. Rear modules RM20-9905-C-HDBNC, RM20-9905-F-HDBNC, or RM20-9905-G-HDBNC and option -UDX-SFP-2S or -UDX-SFP-4S are purchased and available separately.
-SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)
-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)
-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)
-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector)
-SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector)
-SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors)
-SFP-EO Single-Channel Video Optical Transmitter (LC female connector)
-SFP-OE Single-Channel Video Optical Receiver (LC female connector)
-SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector)
-SFP-2OE Dual-Channel Video Optical Receiver (LC female connector)
-SFP-IP-SWD Software-Defined EmSFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD (Up to 3 software licenses can be added to the -SFP-IP-SWD, but only 1 license can be active at a time):
+ADD-SFP-2SDI-TO-IP-2022-6 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6
+ADD-SFP-2SDI-TO-IP-2110 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110
+ADD-SFP-IP-TO-2SDI-2022-6 SFP Software License; Dual-Channel De-Encapsulator
IP-2022-6-to-2SDI
+ADD-SFP-IP-TO-2SDI-2110 SFP Software License; Dual-Channel De-Encapsulator IP-2110-to-2SDI
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI
+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
+ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110
