9068 Up-Converter (Video Only) with SD-SDI Input

Tabs

Overview

(This product is discontinued. Please see 9902-UDX for its replacement.) The 9068 is a format converter specifically designed for video-only SD-to-HD conversions. The card features an SD-SDI input and video processing. The up-converter allows up-conversion to several HD formats, or can pass SD video without conversion.

The 9068 also provides AFD functions that detect the incoming AFD code, allow independent custom ARC to be applied for each incoming  AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Closed captions and  timecode are preserved through upconversions.

The 9068 provides full user remote and card-edge proc control (with user memory) that allows adjustment of gain, offset, saturation, hue,  and many other controls. Factory presets enable a return to factory settings.

9068 Options

•LTC In/Out (+LTC)

Features

SD digital input
Upconversion and aspect ratio conversion
AFD code insertion and AFD ARC control
HD/SD closed captioning support and flexible timecode processing
Selectable safe action, safe title, and center cross overlays
16 user presets
Timecode insertion/conversion
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Detail enhancement and noise reduction
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 18 Watts

SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and
Black Burst (NTSC and PAL)

HD-SDI Output
Number of Outputs: 4 reclocked, 4 processed
Standard: SMPTE 292
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI

Note
This card uses a daughtercard mounted on the card right-side (viewed from front). As such, this card cannot be installed in Slot 20 of a 20-slot frame (the card must be installed in even-numbered slots 2 through 18). Please note this when fitting out a frame using this card.

Rear Module Options

Rear Modules

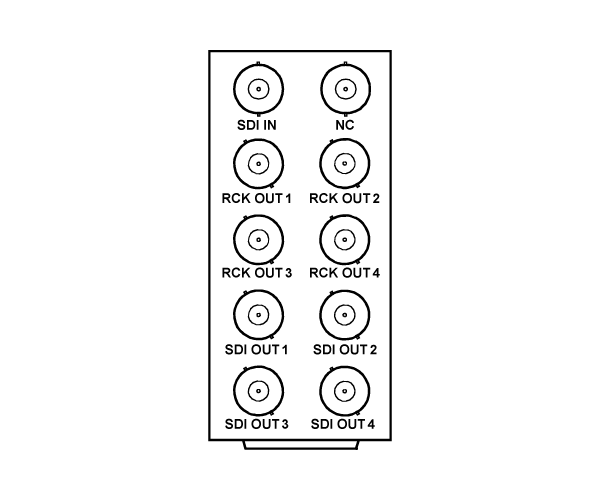

RM20-9068-A

   • SDI In
   • (4) Reclocked Input SDI Out
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

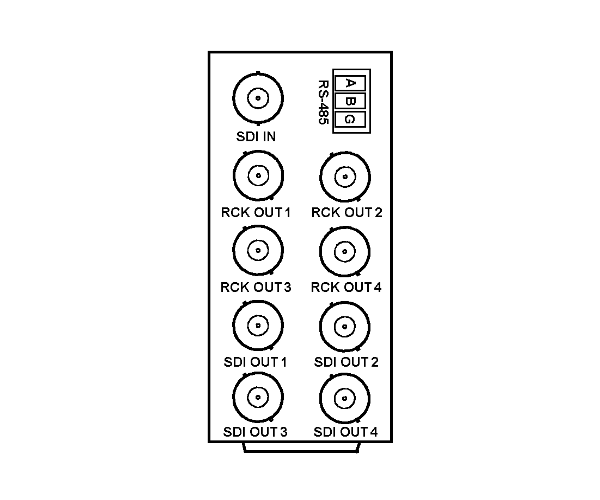

RM20-9068-B

   • SDI In
   • (4) Reclocked Input SDI Out
   • Metadata Out/LTC In/Out RS-485
   • (4) Processed SDI Out
   (All coaxial connectors BNC)

Ordering Information

9068 Up-Converter (Video Only) with SD-SDI Input
RM20-9068-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 SDI Reclocked Output BNCs, 4 SDI Processed Output BNCs
RM20-9068-B 20-Slot Frame Rear I/O Module (Standard Width) SD-SDI Input BNC, 4 HD/SD-SDI Reclocked Output BNCs, 4 HD/SD-SDI Processed Output BNCs,  RS-485 LTC I/O Port
