The Cobalt INDIGO OG-2110-BIDI4-GATEWAY has native SMPTE ST 2110 support in an openGear® format card with dual 25G Ethernet interfaces for
ST 2022-7 support. The INDIGO OG-2110-BIDI4-GATEWAY is a bi-directional quad channel native ST 2110 interface to SDI I/O. The transmit and receive paths of the gateway can operate simultaneously. INDIGO OG-2110-BIDI4-GATEWAY also includes support for ST 2022-7 seamless redundancy switching, as well as IS-04/IS-05 NMOS for automatic discovery and configuration.

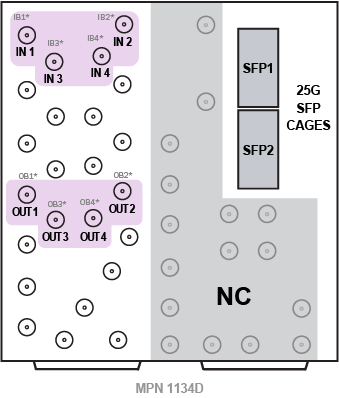

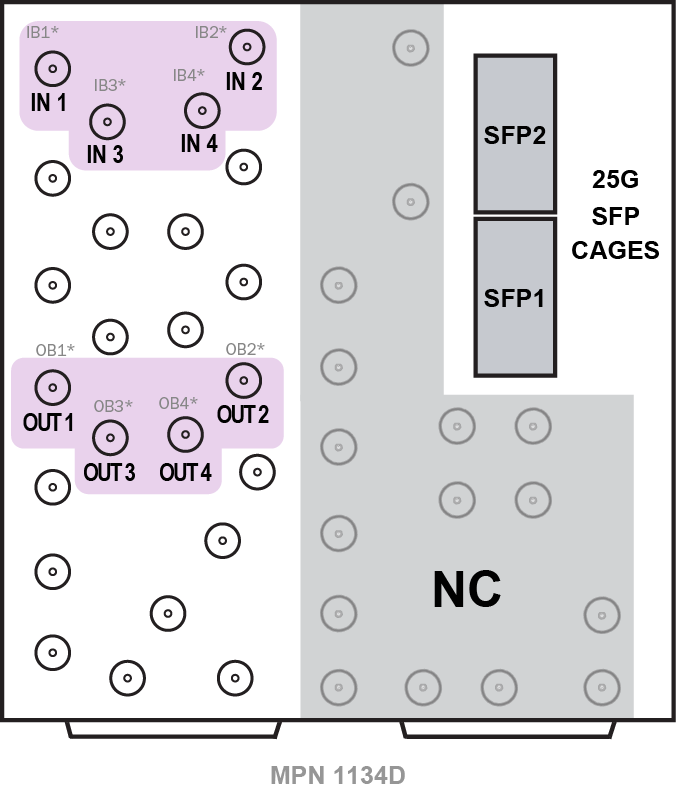

INDIGO ST 2110 is also supported on Cobalt’s 9904-UDX-4K and 9905-MPx processing cards and on the PACIFIC 9992-ENC-INDIGO encoder. The card features four 12G/6G/3G/HD/SD/SD-SDI Inputs, four 12G/6G/3G/HD/SD/SD-SDI Outputs, two 25G SFP28 cages.
The free DashBoard™ software control also provides configuration and control of the unit via ethernet.
