9822 Downconverter with HD/SD-SDI Input and Frame Sync

Tabs

Overview

(This product is discontinued. Please see 9502-DCDA-3G for its replacement.) The 9822 provides HD-SDI to SD-SDI down-conversion that preserves closed captioning, timecode, AFD, and embedded audio. The down-converter allows down-conversion from several HD formats to SD, or can pass HD video without conversion.

The 9822 also provides AFD functions that detect the incoming AFD code, allow independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Full user remote and card-edge processing control with user memory allow adjustment of gain, offset, saturation, hue, audio levels, audio routing, frame sync, and many other controls. Factory presets enable a return to factory settings.

9822 Options

Audio Mixing (+AMx)
Linear Acoustic® Loudness Processing (+LP)
Loudness Metering (+LM-C)
Linear Acoustic® Upmixing (+UM)
LTC In/Out (+LTC)

Features

• HD/SD digital inputs
• HD/SD closed captioning support and
flexible timecode processing
• AFD code insertion and AFD ARC
control
• User-defined audio offset can be
applied in frame sync to align Dolby®
delay
• Selectable safe action, safe title, and
center cross overlays
• Frame Sync with tracking audio delay
• Embedded audio offset adjustment for
lip-sync alignment
• Audio channel mapping, downmixing,
and level control
• 16 user presets
• Remote control/monitoring via
DashBoard software or OGCP-9000
remote control panel
• Detail enhancement and noise
reduction
• Timecode insertion/conversion.
   +LTC option allows LTC input/output on
   shared port, with bi-directional
   conversion between VBI and LTC on
   RS-485 or any audio I/O
• Full 10-bit video path and
12-bit analog encoding
• Full aspect ratio conversion with pan
• Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixer (+AMx)

Loudness Metering (+LM)

Linear Acoustic Upmixer (+UM)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

LTC In/Out (+LTC)

Diagrams

Specifications

Power
18 watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 259M, 292M
Return Loss: > 15 dB at 5 MHz 1.485 GHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and black burst (NTSC and PAL)

SD-SDI Output
Number of Outputs: 4 reclocked, 4 processed
Standard: SMPTE 259M (processed down-convert output)
Signal Level: 800 mV nominal
Return Loss: > 15 dB at 5 MHz -270 MHz
Jitter: < 0.1 UI
Embedded Audio: 16-Ch SD

Note
This card uses a daughtercard mounted on the card right-side (viewed from front). As such, this card cannot be installed in Slot 20 of a 20-slot frame (the card must be installed in even-numbered slots 2 through 18). Please note this when fitting out a frame using this card.

Rear Module Options

Rear Modules

RM20-9822-A

RM20-9822-B

Ordering Information

9822 Downconverter with HD/SD-SDI Input, Embedded Audio, Frame Sync, Timecode and Closed Caption Support (This product is discontinued. Please see 9502-DCDA-3G for its replacement.)

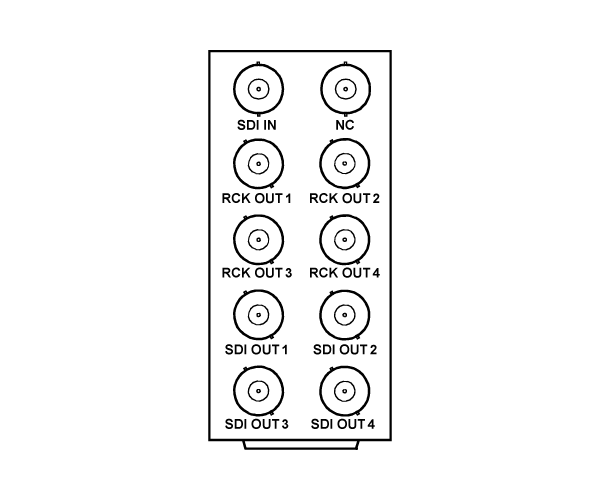

RM20-9822-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 4 SDI Reclocked Outputs, 4 Processed Outputs

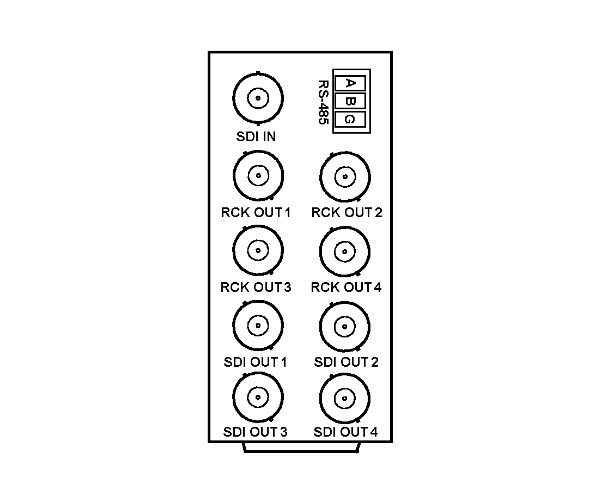

RM20-9822-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 4 HD/SD-SDI Reclocked Outputs, 4 HD/SD-SDI Processed Outputs,  RS-485 LTC / Metadata I/O Port
