9363 Multi-Format Reference Generator

Tabs

Overview

The highly flexible 9363 Multi-Format Reference Generator generates four reference signal pairs that are independently configurable as composite black burst or tri-level reference sources. Each output can be any industry standard rate related to a received input reference source, or can be generated using the card's internal clocking source. Timing for each output pair can be independently offset (in vertical lines or horizontal pixels) from the received reference or internal clock.

Features

Flexible, single-card source for any NTSC or PAL SD/HD broadcast or film reference rate
Develops output reference using external analog reference or stand-alone internal clock source
Outputs can be independently set for frame rate and delay relative from input/internal reference, or from each other
Genlock to output rates of 1:1, 1:2, or 2:1 relationship with clock source. Field Lock for interlaced format outputs from progressive clock sources.
AES/Word Clock output synchronized to any of the four card reference outputs
Remote control/monitoring via DashBoard™ software
Hot-swappable
Five year warranty

Diagrams

Specifications

Electrical
Power: 6 watts

Reference Input
Impedance: 75 Ω
Standard: SMPTE 274M, 296M, 170M; ITU-R BT.470-6 (PAL-B)
Return Loss: >40 dB to 10 MHz

Reference Outputs
Reference Outputs: 4 pairs max. (each pair independently configurable)
Rates (Hz; internal clock): 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Signal Level: 1 Vp-p
Impedance: 75 Ω
Return Loss: >40 dB to 30 MHz
Internal Clock Count Stability: 1 ppm initial (4.6 ppm 10 years; all conditions within specifications)
Thermal Stability: ±0.25 ppm (0° to 70° C)

AES/Word Clock Output
Signal Level: 1 Vp-p
Impedance: 75 Ω
Return Loss: >25 dB to 10 MHz
AES Sample Rate: 48 kHz

Rear Module Options

Rear Modules

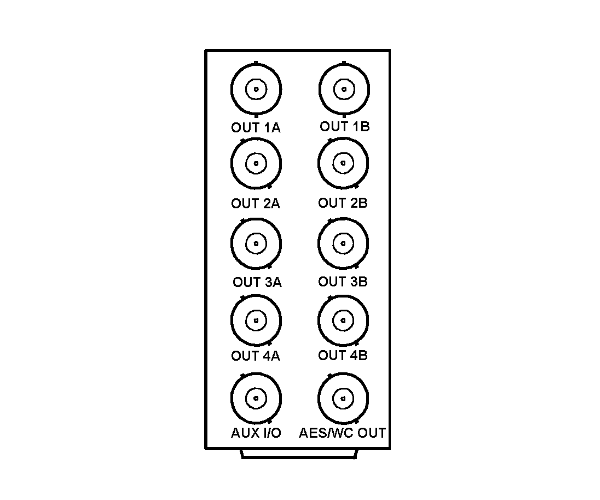

RM20-9363-A

   • (4) Ref Gen Out DA pairs (1A/B thru 4A/B)
   • (1) AES/Word Clock Out
   • (1) AUX I/O (jumper selectable as Ref In or AES/Word
      Clock Out)
   (All coaxial connectors BNC)

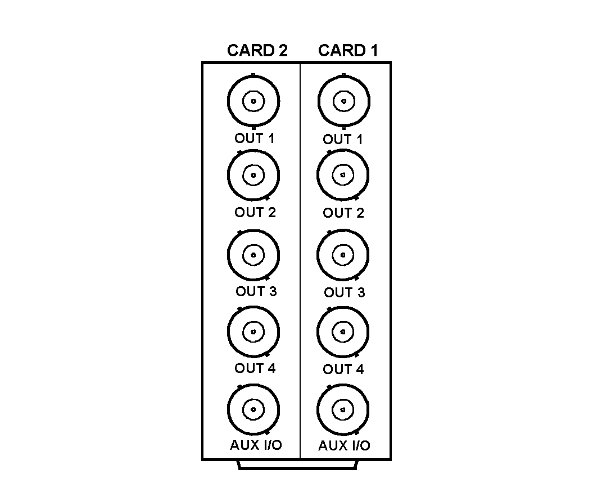

RM20-9363-A/S

   (Dual-card (split) rear module; connections are per card)
   • (4) Ref Gen Out (1-4)
   • (1) AUX I/O (jumper selectable as Ref In or AES/Word
      Clock Out)
   (All coaxial connectors BNC)

Ordering Information

9363 Multi-Format Reference Generator
RM20-9363-A 20-Slot Frame Rear I/O Module (Standard Width) BNC Analog Reference Input or AES/Word Clock Output (configurable), 4x2 BNC Analog Reference Outputs, dedicated AES/Word Clock BNC Output
RM20-9363-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) BNC Analog Reference Input or AES/Word Clock Output (configurable), 4 BNC Analog Reference Outputs (connections are per card)
