9033 Input Processing Analog to Digital Video with Audio Embedding

Tabs

Overview

(This product is discontinued. Please see 9903-UDX-ADDA for its replacement.) The 9033 provides analog-to-SDI conversion for HD and SD sources, with 12-bit conversion bit depth. Additionally, the 9033 provides audio embedding with a crosspoint that accepts up to 16 channels of discrete AES audio, and up to eight channels of balanced analog audio.

The 9033 allows AFD code insertion, closed captioning and timecode insertion from VITC waveform (SD). The 9033 includes full video proc control with user memory and audio routing controls. Factory presets enable a return to factory settings.

9033 Options

• Audio Mixing (+AMx)
• Loudness Metering (+LM-C)
• Linear Acoustic® Upmixing (+UM)
• Linear Acoustic® Loudness Processing (+LP)
• LTC In/Out (+LTC)
Alternate Base Model
• 9033-SD SD-Only 12-bit Analog to Digital Video Converter
with Audio Embedding

Features

HD/SD analog to SDI conversion
Differential analog video inputs for power hum rejection
5-Line adaptive comb filter for SD-Composite mode
Video processing controls
Analog and AES audio inputs; AES outputs
24-bit analog audio conversion
24-bit audio embedding
Audio channel mapping, downmixing, and level control
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with card 48 kHz timing for glitch-free AES embedding
HD/SD closed captioning support and flexible timecode processing
AFD code insertion
16 user presets
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

9033-SD (Alternate Model) SD-only 12-bit Analog to Digital Video Converter with Audio Embedding

Audio Mixing (+AMx)

Loudness Metering (+LM-C)

Linear Acoustic® Upmixing (+UM)

Linear Acoustic® Loudness Processing (+LP51, +LP20, +2LP20)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 12 watts
Power
(Dolby®-DEC Option): 14.5 watts

Analog Video Input
HD Standard: YPbPr or RGB SMPTE
SD Standard: Composite, Y/C or Component
(YPbPr BetaCam™, MII™
or SMPTE/N10)
Impedance: 75 Ω

AES Input
Number of Inputs: 16-Ch unbalanced BNC (nominal 48 kHz only)
Impedance: 75 Ω
Input Level: 0.1 V to 2.5 V p-p
(5 V p-p tolerant)
Resolution: 24-bit

Analog Audio Input
Number of Inputs: 8-Ch balanced
Connector: Removable 3-pin Phoenix
Signal Level: up to +24 dBu
Sample Rate: 48 kHz

Processing
A/D Converson: HD: 4:4:4 SD: 8:8:8
Quantization: 12-bit A to D and 10-bit video
data path
SD Comb Filter: 5-line adaptive

AES Output
Number of Outputs: 16-Ch unbalanced BNC
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

HD/SD-SDI Output
Number of Outputs: 2
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Rear Module Options

Rear Modules

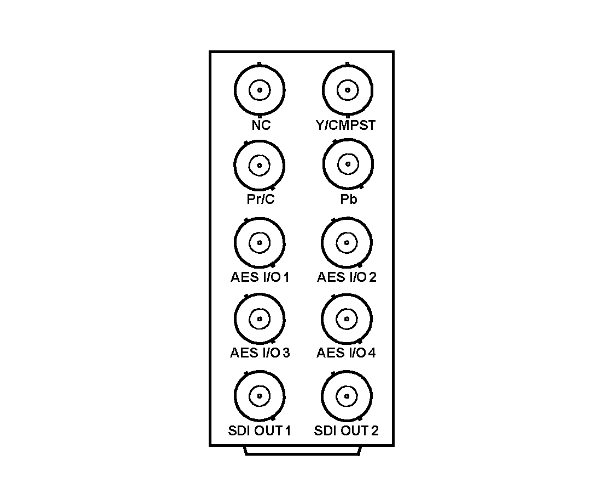

RM20-9033-A

   • Component/CVBS Analog Video In
   • (4) AES In/Out
   • (2) SDI Out
    (All coaxial connectors BNC)

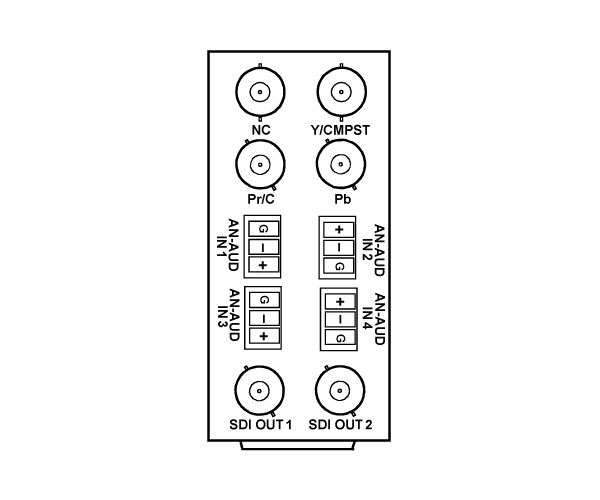

RM20-9033-B

   • Component/CVBS Analog Video In BNCs
   • (4) Balanced Analog Audio In
   • (2) SDI Out
    (All coaxial connectors BNC)

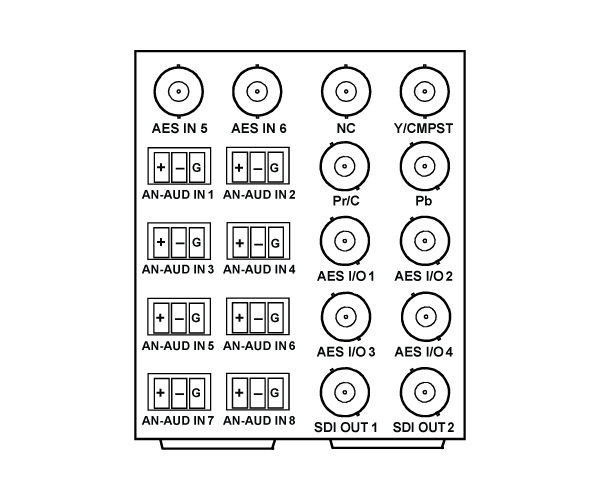

RM20-9033-C

   • Component/CVBS Analog Video In
   • (4) AES In/Out (1-4)
   • (2) AES In (5-6)
   • (2) SDI Out
    (All coaxial connectors BNC)

RM20-9033-D

   • Component/CVBS Analog Video In
   • (4) AES In/Out (1-4)
   • (6) AES Out (1-6)
   • (4) AES In (5-8)
   • (2) SDI Out
    (All coaxial connectors BNC)

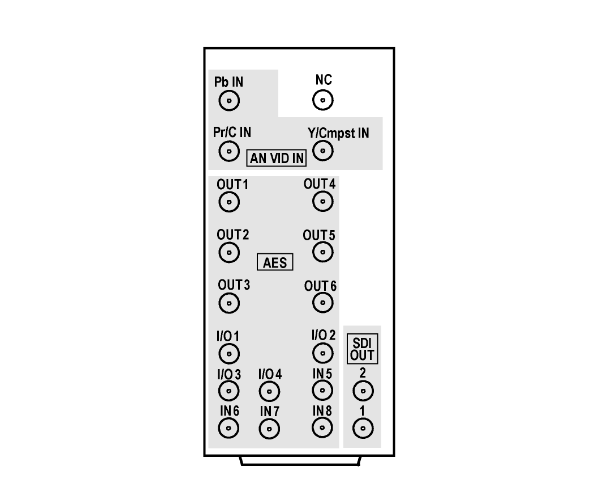

RM20-9033-E-DIN
RM20-9033-E-HDBNC

   • Component/CVBS Analog Video In
   • (4) AES In/Out (1-4)
   • (6) AES Out (1-6)
   • (4) AES In (5-8)
   • (2) SDI Out
    (All coaxial connectors DIN1.0/2.3 or HD-BNC)

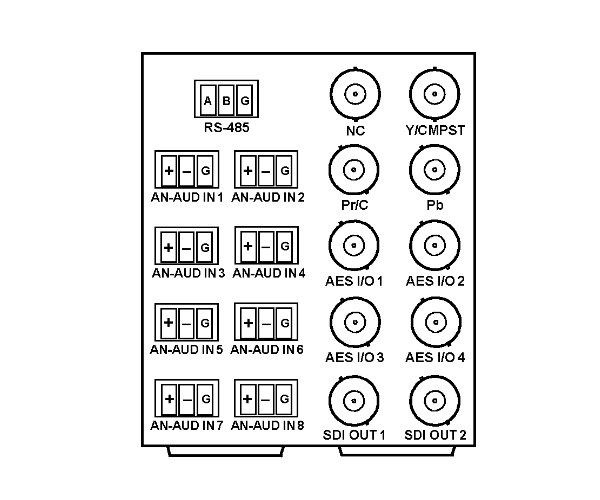

RM20-9033-F

   • Component/CVBS Analog Video In BNCs
   • (4) AES In/Out
   • (8) Balanced Analog Audio In
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
    (All coaxial connectors BNC)

Ordering Information

9033 HD/SD 12-bit Analog to Digital Video Converter with Audio Embedding
9033-SD SD-Only 12-bit Analog to Digital Video Converter with Audio Embedding
RM20-9033-A 20-Slot Frame Rear I/O Module (Standard Width) Analog Video Input BNC, 4 AES In/Out BNCs, and 2 SDI Output BNCs
RM20-9033-B 20-Slot Frame Rear I/O Module (Standard Width) Analog Video Input BNC, 4 Analog Audio Inputs, and 2 SDI Output BNCs
RM20-9033-C 20-Slot Frame Rear I/O Module (Double Width) Analog Video Input BNC, 2 AES In BNCs, 4 AES In/Out BNCs, 8 Analog Audio Inputs, and 2 SDI Output BNCs
RM20-9033-D 20-Slot Frame Rear I/O Module (Double Width) Analog Video Input BNC, 4 AES In BNCs, 4 AES In/Out BNCs, 6 AES Out BNCs, and 2 SDI Output BNCs
RM20-9033-E-DIN 20-Slot Frame Rear I/O Module (Standard Width, High-Density) Analog Video Input, 4 AES In, 4 AES In/Out, 6 AES Out, and 2 SDI Output (all connectors DIN1.0/2.3)
RM20-9033-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width, High-Density) Analog Video Input, 4 AES In, 4 AES In/Out, 6 AES Out, and 2 SDI Output (all connectors HDBNC)
RM20-9033-F 20-Slot Frame Rear I/O Module (Double Width) Analog Video In BNC, 4 AES In/Out BNCs, 8 Analog Audio In, RS-485 LTC / Metadata I/O Port, and 2 SDI Output BNCs
