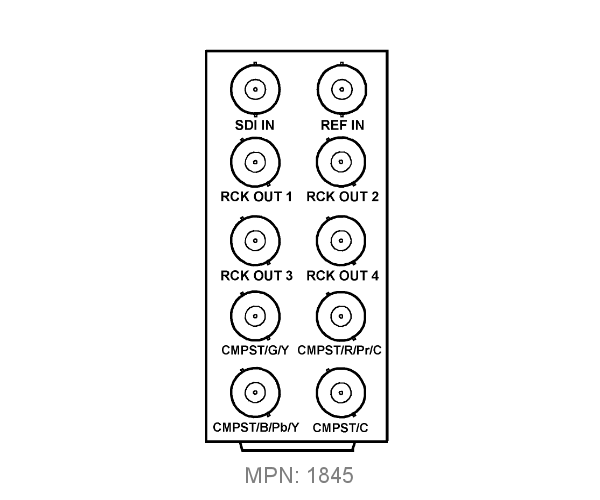

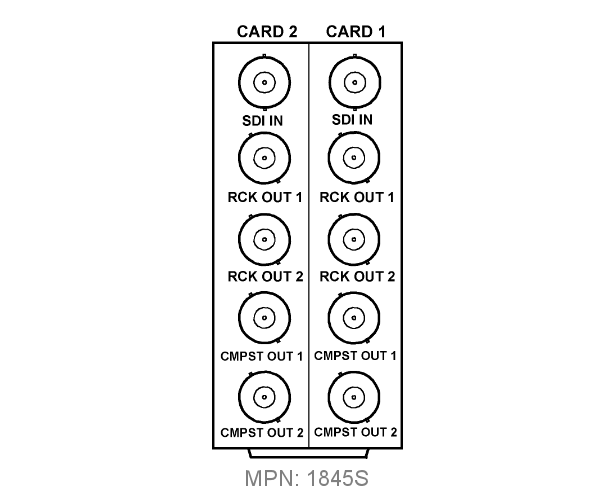

(This product is discontinued. Please see 9903-UDX-ADDA for its replacement.) The 9011 provides 10-bit SD-SDI (SMPTE 259M-C)-to-analog video conversion with a variety of simultaneously available output formats: analog composite, Y/C, YPbPr, and RGB. When used with an “-A/S” (split) rear module, the space-saving design of the 9011 provides for high density, allowing two cards to be collocated in the same frame space normally occupied by a single card.
The 10-bit encoding engine oversamples 4:2:2 to 4:4:4 for internal processing, and then 4x oversamples the outputs to 16:16:16 for improved signal performance. An internal VCXO with de-jitter loop filter to 2Hz reduces digital jitter prior to encoding, improving burst stability on composite and Y/C signals. A reference circuit color frames the 9011 for timed environments with full user processing control.
