9214-2EO Dual 3G/HD/SD-SDI Fiber Transmitter (EO)

Tabs

Overview

(This product is discontinued. Please see 9410DA-2EO for its replacement.) The 9214-2EO is dual SDI to fiber optic transmitter card. The card converts two SDI signals to two fiber optic links, allowing for longer transport distances. Reclocked SDI outputs provide copies of each SDI input signal. The card supports serial digital data rates from 270 Mbps up to 2.98 Gbps (1080p). LED indicators at the front of the card identify the presence of incoming video and the identified signal data rates for each channel independently.

The 9214-2EO is fully hot swappable with all active components on the front removable module. No active components are installed on the rear module, greatly reducing down time and eliminating any need for users to access the back of the rack frame. Each channel of the 9214-2EO equalizes the incoming SDI signal and reclocks the signal with automatic rate detection for all popular data rates. Up to 20 cards can be used in the 20-Slot Frame to achieve a density of 40 electrical to optical conversions in 2RU.

Features

Supports single-mode fiber
Reclocking at 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, and 2.970 Gbps
LC/UPC optical connection
Automatic detection of incoming data rate
LED indicators for input signal presence and input data rate
Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel
Five year warranty

Diagrams

Specifications

Electrical
Power: 4 watts

SDI Input
Number of Inputs: 2
Standard: 143-360 Mbps - SMPTE 259M
1.485 Gbps - SMPTE 292
3 Gbps - SMPTE 424M

Cable lengths w/ Belden 1694A
3 Gbps: 80 m
1.485 Gbps: 120 m
143-360 Mbps: 300 m

SDI Outputs
Number of Outputs: 4 (max)
Return Loss: >15 dB (for SMPTE 259M)
Connector Types: BNC and Single Mode LC/

Rear Module Options

Rear Modules

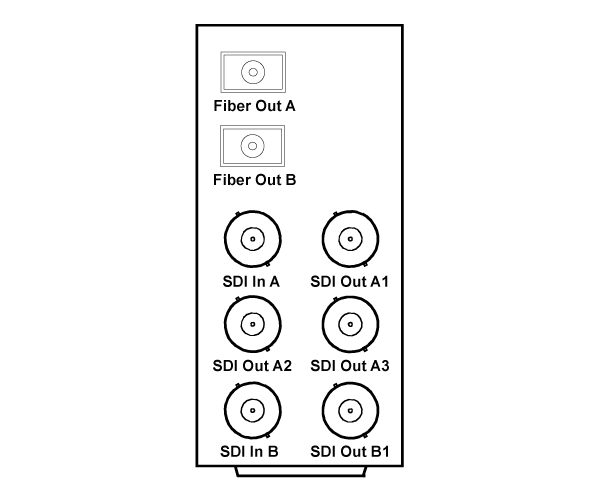

RM20-9214-B

   • (2) SDI In (Path A and B)
   • (3) Reclocked Input SDI Out (Path A)
   • (1) Reclocked Input SDI Out (Path B)
   • (2) Optical Out (Path A and B; LC connectors)
   (All coaxial connectors BNC)

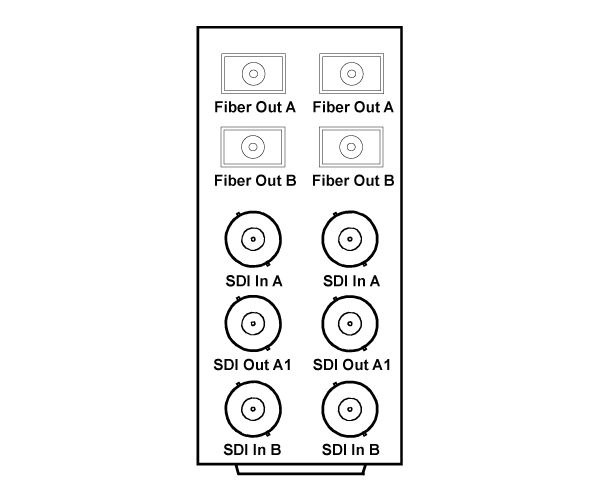

RM20-9214-B/S

   (Dual-card (split) rear module; connections are per card)
   • (2) SDI In (Path A and B)
   • (1) Reclocked Input SDI Out (Path A)
   • (2) Optical Out (Path A and B; LC connectors)
   (All coaxial connectors BNC)

Ordering Information

9214-2EO Dual 3G/HD/SD Fiber Transmitter (EO)
RM20-9214-B 20 Slot Frame Rear I/O Module (Standard Width) Dual SDI In BNCs (Path A, B), 2 Optical LC Outputs (A, B), 3 Reclocked Path A Output BNCs, 1 Reclocked Path B Output BNC
RM20-9214-B/S 20 Slot Frame Rear I/O Module (Split; supports 2 cards) Dual SDI In BNCs (Path A, B), 2 Optical LC Outputs (A, B), 1 Reclocked Path A Output BNC (connections are per card)
